No matter what industry you’re in, whether it’s construction, product design, entertainment, automotive, or aerospace (just to name a few), chances are you’ll benefit from the speed, versatility, and flexibility that 3D design has to offer.
Add in the ability to preview how your designs will look in real life by rendering photorealistic images without the cost and hassle of producing a real-life prototype. You’ll quickly see why everyone, from multinational corporations to garage-based start-ups, are using 3D CAD design and rendering services as an integrated part of their design process.
Cad Crowd offers freelance 3D product rendering and design services, all in one place. You won’t have to worry about looking for an industry-specific 3D designer, only to later go hunting for a rendering artist to make the design come to life. We’ll pair you up with the best, world-class vetted designers who’ll help you get through both stages of the process at the same time.
The key to staying ahead of the game, especially in today’s highly competitive global market, is adding as much value as possible to your company and its products, as well as operating efficiently and cost-effectively. 3D CAD design, as opposed to old school pen and paper, helps companies develop better, more valuable products. It can significantly enhance the quality and speed at which anything from a shoe to a car can be designed.
Furthermore, visualizing through 3D rendering can help you detect possible flaws in the design, as well as discover other unexpected and difficult-to-imagine design possibilities, all this before spending large amounts of money and time in building a prototype.
Iterating (going back and forth in cycles) between design and rendered images can help make sure that, by the time you decide it’s time to see the real thing, you’ll minimize all the risks associated to production, and you’ll have the best possible design in your hands, saving both time and money.
The word design can be used in a number of different ways with different meanings. It can be used as a noun, such as when you say “that’s an awesome design”; it’s used as an adjective, when used in phrases like “this is a well-designed building”; and it can also be used as a verb, like when someone says “I’m going to design the product to your specific requirements.”
Design can also be viewed as a process, one which is of utmost importance in virtually every industry. When viewed as such, design is defined as the series of steps or phases needed to go from an initial idea or concept to the actual working, implemented solution. Depending on the type of problem faced, the implemented solution could be anything from an image, an infographic, a garment, or a piece of jewelry to a building or a spaceship.
When we speak of 3D design, we’re talking about a design process that involves models which are three dimensional (the 3D in 3D design) as opposed to other types of design like graphics design, which is primarily devoted to generating flat, two dimensional images. The addition of depth to a 2D image is hard and very time-consuming if done by hand, so 3D design relies on computers and software to make things easier and faster.
There are many different ways to view the stages of the design process. However, one thing that most people agree on is that design is not a linear process that can be broken down into successive steps one after the other. It’s more like a series of iterations that take you from problem to concept and model to prototype until you get an acceptable working model for implementation. The whole process can be broken down into three general overlapping stages, as shown in the following image:
The first stage is conceptualization, where the problem to be solved by the product or design is identified and studied thoroughly to try to identify possible solutions and design possibilities. This stage usually involves brainstorming sessions in which one or more designers, as well as the person who commissions the design, quickly toss idea after idea. The result is a series of preliminary designs which are then modeled, visualized, and analyzed in the refinement stage.
During said refinement stage, it is common to discover flaws in the original idea or concept, and it becomes necessary to go back to the conceptualization stage. Other times everything will look good, and you’ll be able to move on to the next step, which involves building or “making” the prototype or real-life physical model. This model is also carefully studied and analyzed to detect possible flaws, potential room for improvements, and to see whether it solves the problem it’s intended to solve.
Here it may be necessary to go back to the drawing table (or to the computer, more likely) to remodel to improve the design or to fix identified design flaws. It may even be necessary to ditch the model altogether and start over from scratch, which is why we say that design is essentially a non-linear process. Only after you have a perfectly functional prototype that meets your expectations will you move on to the implementation phase that encompasses things like production, financing, marketing, documenting, etc.
At the heart of the entire process is the 3D model because it is where the concept starts to take shape. It’s where all the tweaks and modifications are made to improve the design, and it’s also the basis for prototyping and manufacturing. 3D renderings, which are used in all sorts of documentation and advertising material, are also produced from this 3D model.
This is a very simplified view of 3D design, but it helps to know design may imply repeating phases or iterating between design concept, 3D model, rendering and visualization, analysis, and prototyping. Always keep in mind that it’s better to repeat this process here, at an early stage, as many times as necessary. Otherwise, you’ll have to find problems after you’ve already started production when they are much harder and more expensive to fix.
Some people get confused when they look for professionals to help them with product development, especially when they must choose between service options like 3D design and 3D modeling, which seem to be quite similar at first. Let’s clear this up a bit before we continue.
3D modeling refers to the process by which a real object or idea is transformed into a mathematical, computer-generated three-dimensional virtual model. This means creating a representation of said object in a computer, which can then be moved around, analyzed, transformed, viewed from different angles, put in different scenes and, in general, tinkered and modified in myriad ways.
An expert 3D modeler is someone who will have the ability to accurately and efficiently create a virtual 3D model of an object that looks (almost) exactly like the real thing, or someone who is capable of grasping your concept or idea and building the 3D model based on that, for you and everyone else to see on a computer screen.
3D design, on the other hand, encompasses the entire design process including 3D modeling, but also other tasks not necessarily associated to it like conceptualizing, rendering, parts and assembly analysis, manufacturing optimization (prepping for 3D printing for example), and more.
To get a better understanding, let’s describe a pair of different cases in which you might need one service or the other:
You can probably guess by now that there are critical differences in the skills needed to be a 3D designer and a 3D modeler. Designers tend to think differently than modelers do. A designer will need to think about how to solve a particular design problem and will always be thinking about how he or she can tinker, alter, or tweak a design to make it better.
This requires a good deal of creative thinking as well as exploratory thinking; maybe even a bit of scientific thought. Since 3D design implies 3D modeling as one of its process stages, then the designer also needs to be a skilled modeler.
A professional 3D modeler, on the other hand, doesn’t necessarily have to be an exceptionally creative person (although most of them are). The skill they need the most is the ability to use all the software tools at their disposal to create the most accurate model possible. A 3D modeler has to know how to make the model the way you want it to be. He doesn’t necessarily have to think about how the model should be or how to make it better.
Now that we’ve cleared up some of the key concepts related to 3D design, you need to be aware that not all 3D designers are the same. If you’ve decided that you need to hire a 3D designer, then you have to look for the one that best suits your specific industry. There are designers specialized in the automotive and transportation industries. Others are specialized in architectural design, some are great at mechanical design and engineering, and so on.
You’ll agree that you probably wouldn’t hire an architect to design a car, or a mechanical engineer if you’re designing a house. If you’re developing consumer products, then you need a 3D product designer, preferably with an industrial design background, and we’ve got them here at Cad Crowd.
Regarding software, there are many options available to choose from. Some are more popular than others, some are more powerful than others, and some are way more expensive than others (especially considering some of them are free). Some of the software solutions are suites of programs which designers can use to do pretty much anything related to computer-aided design (CAD), computer-aided engineering (CAE), and computer-aided manufacturing (CAM). These suites include tools that range from modeling, designing, rendering, and animating to analyzing, testing, simulating, and manufacturing.
You’ve got to have the right tools for the job, and our designers do. Read on to learn about some of the most common software tools our designers will use to help you with your project.

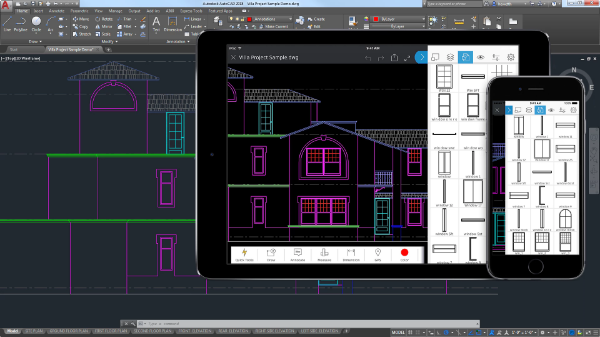

AutoCAD is one of the grandfathers of CAD software tools. It is known the world over for its use in architectural design, but the most recent versions have great 3D functionalities that make it great for modeling 3D objects other than buildings and houses. A 3D product designer who uses AutoCAD will probably purchase the AutoDesk Product Design & Manufacture collection which uses AutoCAD for 3D modeling and other tools like Inventor (see below) and 3ds Max for CAE, rendering, animation, and manufacturing.
Fusion 360 is a cloud-based 3D design platform especially suited for product development and prototyping. Since it’s cloud-based, your designer will be able to show you his work in progress virtually in real time, no matter how far apart you are, provided you have a working internet connection and a compatible web-browser.
This is a particularly useful advantage when hiring a freelance 3D designer online, because there’s no real need to set up face to face meetings, and you won’t need any fancy software installed in your computer to view the work in progress. It also allows you to make suggestions and ask questions about the design while you navigate around the 3D model, and you could even see in real time how the designer changes the design based on your suggestions. This sort of collaborative working environment makes feedback a lot faster and the overall workflow more efficient. Fusion 360 is AutoDesk’s bet for the future of software: Software as a Service, or SaaS.
Inventor is a very well rounded app that’s akin to SolidWorks (read below). It’s mainly used for mechanical parts modeling, simulation, and manufacturing, so you can see how it could fit into the product design workflow. Not for nothing is it included in the aforementioned AutoDesk Product Design & Manufacture collection.
Dassault Systèmes (3DS) is one of the biggest names in CAD, CAE, and CAM software, and Catia is its crown jewel. This very expensive, very hard to use but incredibly versatile software suite has everything a product designer may need and more. Now, tools do not make the blacksmith, and clothes do not make the man, as the sayings go, but if you find a designer who works with Catia and owns a license, chances are they know what they’re doing. On the other hand, odds are he’ll also charge a pretty penny for his services, but you get what you pay for.
SolidWorks is another one of 3DS complete package of software tools for 3D designers that provide everything they need for every single stage of the design process, from initial ideas and drafts all the way to manufacturing. It’s something like Catia’s little brother but at a much more accessible price. It’s one of the software solutions of choice among 3D designers including, but not limited to, product designers. It even provides cloud services for more efficient collaborative work between design teams, and for better communication and feedback with the client. SolidWorks designers are in high demand because they usually provide the full package when it comes to product design. At Cad Crowd, we have a pool of SolidWorks design service experts ready to begin working on your next great product right away.
OnShape is a complete cloud-based 3D design platform developed by none other than the makers of SolidWorks. It’s not as versatile as SolidWorks as it’s mainly a CAD solution not used for CAE or CAM. Some desired functionalities like real-world simulations of your products are not enabled. Besides the benefits that cloud computing has to offer regarding collaboration, communication, and workflow. OnShape’s bet is to provide large product development companies and design firms with analytics tools that will guide important data-driven decision making.

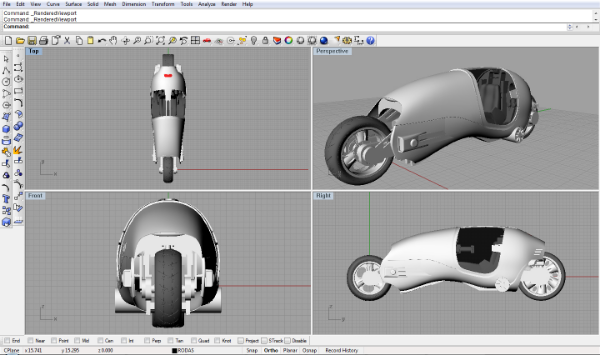

Last but not least, we’ll mention Rhino 6. A reasonably priced, mid-range 3D modeling program that also includes sketching tools, a decent rendering engine as well as manufacturing tools to cover all the phases of the design process. It isn’t in the same league as Catia or SolidWorks, but it can be significantly enhanced by way of plug-ins and add-ons.
These are just a few of the software tools 3D modelers and designers will use to design and make your vision come true. There are many more out there, but in the end, what counts the most is the skill and experience that a designer has using them.
Now that we’re clear on 3D design, let’s talk about 3D rendering.
We already gave you a slight overview of what rendering is all about, but it’s time to give a more formal definition: 3D rendering can be defined as the process by which a 3D CAD model is transformed into a 2D image. These images can be shown on computer screens, exported as image files in different file formats, or they can be used as frames for 3D animation.
DISAMBIGUATION: Computer screens only show 2D images (their flat), so when you’re designing your product in CAD software or when you open a 3D file showing your model, the software is already and continuously rendering. These renders will usually be sketchy wireframe or polygon models, far from real-looking and their intention is merely to show the shape or form of the model in different perspectives. The point of 3D rendering, as will be used from here on, is to go from those sketchy looking unrealistic models of an object or product to a more refined looking image.
There are two different trends in rendering: Photorealistic and non-photorealistic or artistic rendering. The latter is mainly used in part of the gaming and animation industries where a cartoony appearance is desired or by 3D artists looking to create unreal and abstract effects. In product design and development, however, photoreal is the name of the game, and rendering artists and their software tools are becoming ever more efficient at it (see image below).

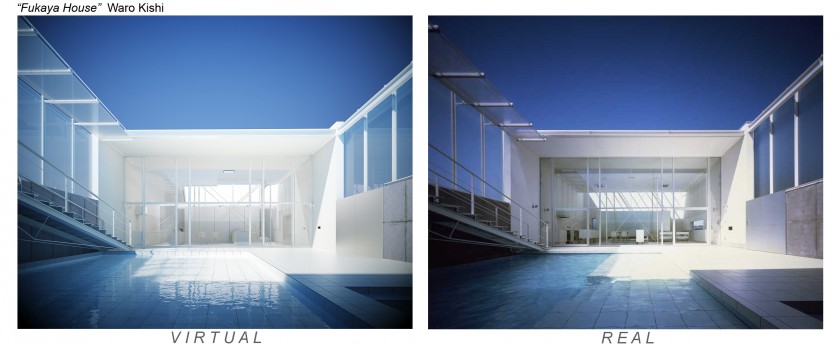

If you thought that creating complex 3D models and moving them around was difficult on your average computer, that’s peanuts compared to the number of resources that high-resolution photorealistic rendering demands. To give you some insight into the matter, rendering a relatively complex model with lots of texture and physical light simulation can take from hours to days in your average home computer.
There are situations that require “real-time” rendering, such as in 3D video games and VR. The need to produce 30 to 40 rendered frames per second limits the obtainable quality of the result. However, the fast pace at which graphics technology advances means that we’ll get better and faster renders every day.
As a product developer, what can you get out of 3D rendering? Why should you bother hiring a rendering artist? If you haven’t figured it out by now, we’ll summarize the key benefits of rendering photorealistic images of your product's 3D models:
These are just a few of the most important benefits you can get from hiring the right rendering artist, but how do they work their magic? Read below to find out how rendering works, what the most common rendering methods are, and what software packages do rendering artists use to get the best results.
Rendering starts from the completed 3D model of your product, so to get a rendered image, you already have to have the 3D file where said model is stored. The rendering software reads the file, interprets the information as a three-dimensional object, and produces a very basic render to show you a simplified (wireframe or polygon) 2D image of your model in the computer screen, called a pre-image. By the way, all CAD or modeling software does this sort of rendering as you build your model or design, so this is not what we refer to when we say rendering.
This “flattening” of a 3D object is called 3D projection. Projections can be done either in perspective (the further away, the smaller the parts of the model will look) or by orthographic projection, in which all dimensions and proportions are maintained.
After you have the pre-image, rendering is used to add as much detail as possible to make it look the way you want, be it photorealistic or artistic. These details are added in the form of many different visible features that give an image its character and make it look realistic.
Most of these features are a consequence of the physical behavior of light and the way it interacts with the different surfaces and materials in the 3D model, like shading, shadows (yes, they’re different), transparency, translucency, reflection, refraction, diffraction, etc. Other features have to do with characteristics, details added to those surfaces like texture mapping and bump mapping.
Different computer algorithms have been developed to simulate all or most of these features in a more or less efficient and accurate way. The most commonly used by rendering software are:
Ray casting is probably the grandfather of 3D rendering, dating back to 1968. With this technique, the color and intensity of each pixel in the image are sampled and calculated from the intersection of a ray that has been cast out from the observer through that pixel (therefore, the name ray casting), with the first object that crosses its path in the 3D scene.
In its simplest form, the color of the pixel in the image will be made equal to the color on the surface of the 3D object that intersected the ray. This color could be a solid color, or it could be made more complex by using texture-mapping. In ray casting, all rays of light are considered to travel in straight paths; therefore, physical phenomena like reflection, refraction, and diffraction cannot be taken into consideration directly.
Consequently, features such as shadows cannot accurately be modeled through ray casting but have no fear – they can be “faked” to a degree with said texture-mapping techniques. Due to its low number of needed calculations, this is the fastest, easiest way to render a 3D image. However, it’s also the least accurate and realistic.
After ray casting came scanline rendering. This method belongs to a more generalized type of rendering called rasterization. In this technique, instead of rendering each separate pixel of the image you want to create (like in ray casting), the algorithm focuses on parts of the 3D model called primitives. In most cases, these are the triangles and polygons that make up its surface.
It then calculates which pixels in the image will be affected by which primitives and renders based only on the light coming from each primitive, instead of rendering the whole set of pixels. In scanline rendering, all the polygons in the 3D scene (in your product’s 3D model) are ordered according to their vertical position and classified into rows, from top to bottom.
The algorithm “scans” each row or “line” discarding the polygons that are at the back and are no longer visible by the observer. Since there are usually less primitives (polygons) than pixels, normal rasterization is usually a lot faster than ray casting. Since in scanline rendering, many of the primitives are discarded and not taken into account during calculations, this type of rasterization is even faster.
Rasterization, and scanline rendering, is one of the most efficient rendering techniques. This is why it’s the algorithm mostly used for hardware rendering in GPUs, and it’s used in many applications that require real-time renderings like VR, interactive scenes, and 3D video games. However, it fails to include complex light effects because it merely projects objects to the image plane geometrically, and therefore, it sometimes falls short at creating highly realistic images.
This is one of the most computer-intensive types of rendering, but it’s also the one that gives the best, most realistic results. The reason is fairly simple: Real-time ray tracing (RTX) treats light rays as particles that travel through the virtual 3D space and interact with the scene, and the 3D models therein, in the same way it does with matter in the real world. As a consequence, images rendered this way will be very photorealistic.
In the real world, when the beam of light (a ray) from a light source hits the surface of an object, it interacts with it in different ways. It can be absorbed, reflected, diffracted, and refracted (this is the change of direction when light passes from one medium into another).
As a consequence, a single beam of light may spawn many secondary beams that may travel in different yet predictable directions. Each one of these beams then travels around and hits another object – let’s say a dog beside the tree – and the whole thing happens again. The image that you actually “see” results from the sum of all the light rays that have made it to your eyes after all those interactions, as well as the light coming straight from the source.
The ray tracing technique simulates this process. As its name suggests, this method consists of tracing the path of each one of the primary (originated at the source), as well as secondary (originated after reflection, refraction, etc) rays. Each pixel in the rendered image results from the integration of all the rays that coincide in that particular pixel, coming from many different directions.
The algorithm has to calculate the path and all the physical interactions of every single ray that is produced by the light source, and of all the secondary rays spawned after each interaction. On top of that, it must solve an integral equation involving all rays of light that make it to every single pixel of the rendered image.
You can probably see by now why this sort of rendering is very slow and time-consuming. It’s only recently been used for high-end, real-time rendering (thanks to better CPUs/GPUs and more efficient algorithms) and it’s scarcely used for short-film animations because each frame takes forever to render. However, it’s probably the best choice when it comes to producing vivid, highly photorealistic still images or very short animations to impress potential investors or prospective clients.
By the way, since this is the method that best simulates reflection and refraction, it does a very good job at simulating transparent or translucent materials such as glass, crystals, or liquids. So, if you’re product includes any of these materials (like jewelry, for example), this rendering technique is the way to go.
More than a rendering technique per se, radiosity is a way of simulating the diffuse scattering of light from shiny surfaces to be used in rendering as secondary sources of light. This helps a lot in accurately modeling complex shades and shadows. Radiosity algorithms are sometimes programmed into ray tracing rendering algorithms to increase the level of realism in the final image but at an increased computational cost.
These are just some of the main techniques that rendering software packages, as well as hardware, use to produce a 2D image of a virtual 3D model or scene. Ray tracing, radiosity, as well as more recent light modeling algorithms like path tracing, photon mapping, and ambient occlusion are referred to as a group by the common term “Global illumination algorithms.”
Ray tracing and radiosity simulation made their debut in the early 80s, and it’s safe to say that technology has come a long way since then. However, most advances in rendering technology have been made in the improvement of quality and efficiency of global illumination algorithms and their inclusion in already existing rendering algorithms.
In some cases, improvements have been made by combining the rendering techniques shown above to make rendering more efficient without sacrificing quality. In other cases, advancements have had to do with the development of programs especially dedicated to the simulation of complex shades and others designed for the simulation of subsurface scattering just to name a few.
As mentioned above, all the calculations needed to produce a render are done by computer programs referred to as rendering engines. Being skilled in the use of software tools and all their features and functions is the hallmark of a professional rendering artist. But which rendering engines are they most likely to use?
Before we go on, let’s get something out of the way that may cause a bit of confusion: every 3D design program or software package will surely include a rendering engine of its own. This is absolutely necessary because, if you remember what you read earlier, rendering is an integrated part of the design process.
These rendering engines which are integrated as a part of 3D design software suites like Catia, SolidWorks, or others are sometimes referred to as “native” or “built-in” rendering engines. The higher-end suites carry great built-in rendering engines but are also very expensive. In the mid-market range or lower-end software packages, however, the native rendering engines will sometimes be mediocre or good in the best of cases, but seldom great.
In order to get the best results at an acceptable price, rendering artists will choose either a stand-alone rendering app, or an app that serves as a plug-in for the 3D design software packages they already use.
When you hire a professional, you want them to have the best tools for the job at their disposal. As you read below, you’ll find out what stand-alone or plug-in rendering engines your designer is most likely to use.

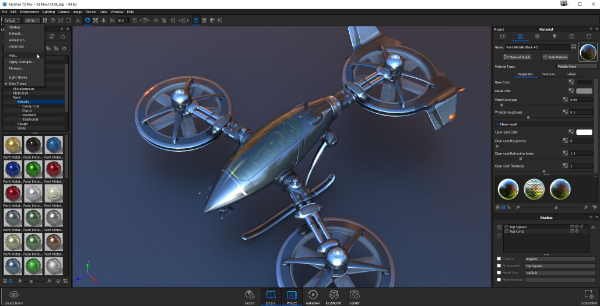

KeyShot is rated by many as one of the best rendering engines for product design. Its ease of use, its real-time previews of changes made to the model, classification of materials by type with different controls, and the ability to choose how many processor cores to use while rendering are just some of the feature’s users like best about this software.
Like most modern renderers, KeyShot includes algorithms for global illumination, which make it capable of producing top-notch renders. Its default settings produce great looking results which will make it a breeze to get your first high-quality rendered previews. Another benefit of using KeyShot is its compatibility, which is excellent.
It allows importing many different 3D file formats, which makes it good for overall workflow and efficiency. The only drawback is that this renderer only uses CPU and not GPU for all calculations, which means that the designer is limited to the speed of his processor, no matter how many graphic cards he adds to his computer.

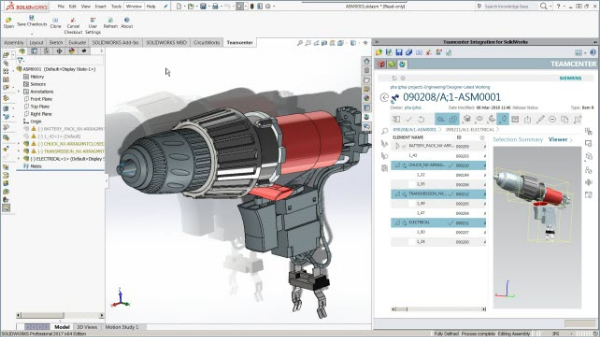

As mentioned earlier, SolidWorks is one of the big names in 3D design software. This amazing suite has everything you might need, and it used to include its own rendering engine as an embedded application. Nonetheless, Dassault Systèmes made it a stand-alone app with an intuitive and easy to use UI, great functionality, decent materials and textures library, and with excellent integration into the SolidWorks workflow.
It also has the ability to show, in real time, a preview of how changes made in the design will look once rendered. This is especially useful when you hire a rendering artist because it means that you can work together trying out new materials, colors, and textures for your products while you generate feedback without having to wait for a full or partial render every time you try something new. All and all, this is an excellent solution for product rendering, primarily if your designer/rendering artist worked with SolidWorks when designing your product in the first place.
This software package is a very versatile, function-rich program that has a more than decent rendering engine. 3ds Max isn’t actually a rendering engine in itself as much as a design suite, but we include it here because its rendering and animation tools make it a great choice to create product beauty shots tailor-made for marketing or attracting potential clients and investors.
It’s not an easy to use app but, once mastered, there’s no end to the possibilities. If you find a product designer who is well versed in 3ds Max Design, he will probably give you an extra edge over the competition when producing your product renders and animations.
Flamingo is a rendering engine plug-in for Rhino. It empowers Rhino users with the ability to preview designs live, as you model. You can also use it later for the final rendering of your model or scene; however, it doesn’t produce the best renders. Hiring a designer/renderer who only uses Flamingo for product renders usually means trading off quality for a lower rate.
Alias is AutoDesk’s dedicated industrial design and product design platform. As in the case of 3ds Max, this isn’t simply a rendering engine but a complete design suite for the product development industry, and the automotive industry in particular. We include it here because of its ability to render highly realistic images of products and cars.
Its rendering engine excels at neatly and accurately rendering curved surfaces of different materials and with different finished and textures without any visual artifacts. This is one of the go-to apps of automotive designers so if that’s what you need, make sure they have it.
V-Ray by Chaos group is among the best rendering engines out there. It’s one of the most frequently used rendering software solutions by top names in the product design industry. Highly appreciated by its users, it can be used for anything from product rendering to architectural rendering of big cities.
It provides all the tools a designer/rendering artist needs in order to produce anything from a cartoony render to a hyper-realistic render that’ll trick anyone into believing that the image is actually a photo. New versions include real-time rendering and integration with software like 3ds Max, Maya, Modo, Rhino, and SketchUp Pro as extensions which significantly improves workflow. Even though it’s mostly used in architectural design, this is a rendering powerhouse that’ll work correctly with any 3D model.

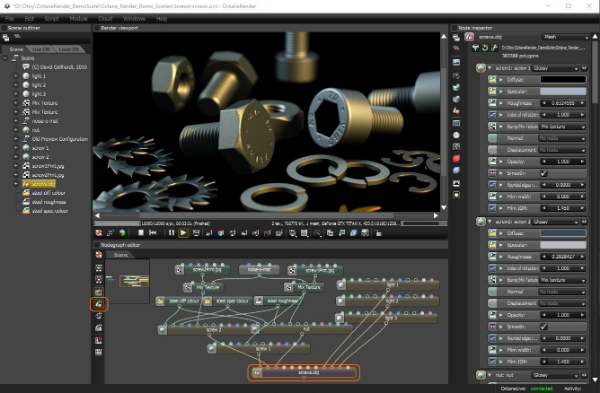

This is an excellent physically-based rendering engine that employs a large number of algorithms to produce stunningly realistic results. It simulates spectral light transport, direct and unbiased lighting, ambient occlusion, as well as other highly sophisticated global illumination algorithms. Its architecture is GPU-based, so you can harness the full power of the most recent graphics hardware providing rendering speeds over ten times faster than CPU-based rendering engines.
With available plug-ins for more than 21 different 3D design programs and suites, and the possibility of creating your own materials with specific optical characteristics that may even include subsurface scattering, octane is easily one of the best options for product rendering.
There are other tools available for producing high-quality renders, but these are some of the most popular choices. When hiring a rendering artist, it’s wise to inquire which program he or she uses, as this might give you a first idea of the possibilities and limitations you may encounter later on.
Here at Cad Crowd we work with the most talented, vetted freelance designers from all corners of the world. Get a quote today and find out for yourself why internationally acclaimed consumer product companies like Tupperware and Tiffany trust our freelancers and us to design and render their products.
If you think Cad Crowd is just another online market place for freelancers and clients to connect, think again. Our business model is especially tailored for the 3D design industry in all its branches. Learn more about how we take special care in the protection our clients’ intellectual property, while at the same time providing every service you may need for product development from concept to manufacture to licensing and patenting.
Not completely sure of how your product should look and you want to explore as many options as possible? No problem, we’ve got you covered! Just post a crowdsourcing design competition and wait to see what our designers come up with. You’ll get dozens of entries and you’ll only have to pay for the designs and concepts you like.
