Gnome needed for Garden Device

in 3D Printing Design held by Gardener
Contest Ended, Winner(s) have been selected.
Description:
Our company, GnomeBOT, is working on a garden automation tool and we need a design for the product case. The case will look like a gnome, and will

How did we come up with a gnome?
Think about the home automation tools you've seen. They either look like a 90's router (box with antennas out of the top), or they're sleek modern works of art. Think about the Nest thermostat. What does it look like? Your grandma's thermostat, right? Except much more modern. That's what we're going for: a nod at your grandma's gnome, but modern.

Points of consideration:
> Our device is a gnome, and a computer/robot. We're looking for a modern way to blend the two.
>The gnome will house electronic components including sensors (with external probes which will plug in via ports), a 16x2 LCD, a PCB, and an antenna.
>The final product will be waterproof. Avoid any areas that could pool water.
>The product will go outside in customer's yards. Consider a base or large footprint to keep the unit stable
>There will be plugs for sensors connecting to the gnome. Please plan an area for 5-8 probes to connect.
>Design will need to be printed as 2 halves that come together once the internal components are in place.
Wants:
We'll be evaluating each design based on these criteria:
>Design asthetics: Does the gnome look modern, and like it belongs alongside other sleek home automation devices?
>Emotion: Does the gnome's feature, facial expression, pose, apparel, etc. convey modern, happy, wise?
>Dimensions: Would the figurine fit a 4"x2"x7" cavity inside for components?
>Creative LCD placement: Does the design incorporate the LCD in a creative and natural way?
>Usability: Is the design and file something we can continue to tweak and iterate?
>3D printability: Can the design be printed easily?
Don't Wants:
We're not looking for a troll, or a dwarf, or a smurf, or an elf, or Santa.
Software:
  1. Blender
Additional Information
Gnome should be 10" tall.

For your submission, please submit a rendering as a jpeg.

We'll also need an stl and obj file so we can 3D print the gnome.

*****EDIT 7/3/2017********************

Of the designs we've received so far, our favorite look is #42. However, this design does not show how the case would fit together, etc.

Our favorite design files are from #45. This designer has spent time and attention on how the case would fit together, how it would stand, where the screen and plugs would go, etc.

If someone were able to combine the design of #42 with technical details of #45, we'd have a winner!

*****EDIT 7/6/2017********************
Just about 10 hours to go! We've narrowed the results down to what we believe are the top few entries based on our needs.

One quick reminder to all designers that we are looking for a case for an expensive piece of technology. This isn't a toy. We do have a playful marketing piece, but we have to present a device, not a toy.

Entries

#79 GnomeBOT by unocuatro
Hi again, I just made for what you ask.
more
Jul 6, 2017 8:50
#81 BoGnome by REDA
This is a very different design and attractive;) inform me who I have to provide you a more advanced version
more
Jul 6, 2017 10:09
#82 Bo Gnome V 2 by REDA
;)
more
Jul 6, 2017 10:29
#83 Gnome needed for Garden Device by SaketCad
Concept-6
more
Jul 6, 2017 11:05
#85 Gnome bot 1 by MR. CAD DESIGNS
My first submission.
more
Jul 6, 2017 14:35
#86 Gnome needed for Garden Device by SaketCad
Concept-6-1 Slight changes done.Base is not shown. It will be same as our previous submission & also the gnome attachment to the base.
Awaiting your feed back
Rgds,
Saket CAD
more
Jul 6, 2017 17:13
#87 gnome - by Adriano Ordoz Barissa by Adriano Ordoz Barissa
;-)
more
Jul 6, 2017 17:20
#92 Bo Gnome by REDA
Hi,
Bo Gnome is a very fun design and at the same time that takes into account the constraints requested, it is a sure design and very different from my precise entries!
Thank you for making an Ovation;)
regards
REDA
more
Jul 6, 2017 21:43
#94 Gnome Smooth by REDA
;) A design with a very simple and completely smooth silhouette
A winning design !!!!
I develope if you like!
thank you
more
Jul 6, 2017 23:05
#95 Renders GnomeBOT by unocuatro
Hi Gardener, here more views!
more
Jul 6, 2017 23:31
#97 FLEeick Gnome by Ridwan Sept
Hello,
Thanks for this interesting contest, this is my submission.
Please check out and read description in the attached file.
I hope you like it and I hope this products meet with what your wants and requirements.
Best Regards,
Ridwan S
more
Jul 7, 2017 3:03
#100 Gnome V2 by DeBasstyan
Declined
New one!
more
Jul 7, 2017 5:52
#1 modern gnome by Albertus Putra
i just picked random image from another brand,
is it the right direction to develop your gnomebot?
more
Jun 16, 2017 6:44
#6 Gnomebot by Adam
Declined
Jun 21, 2017 16:00

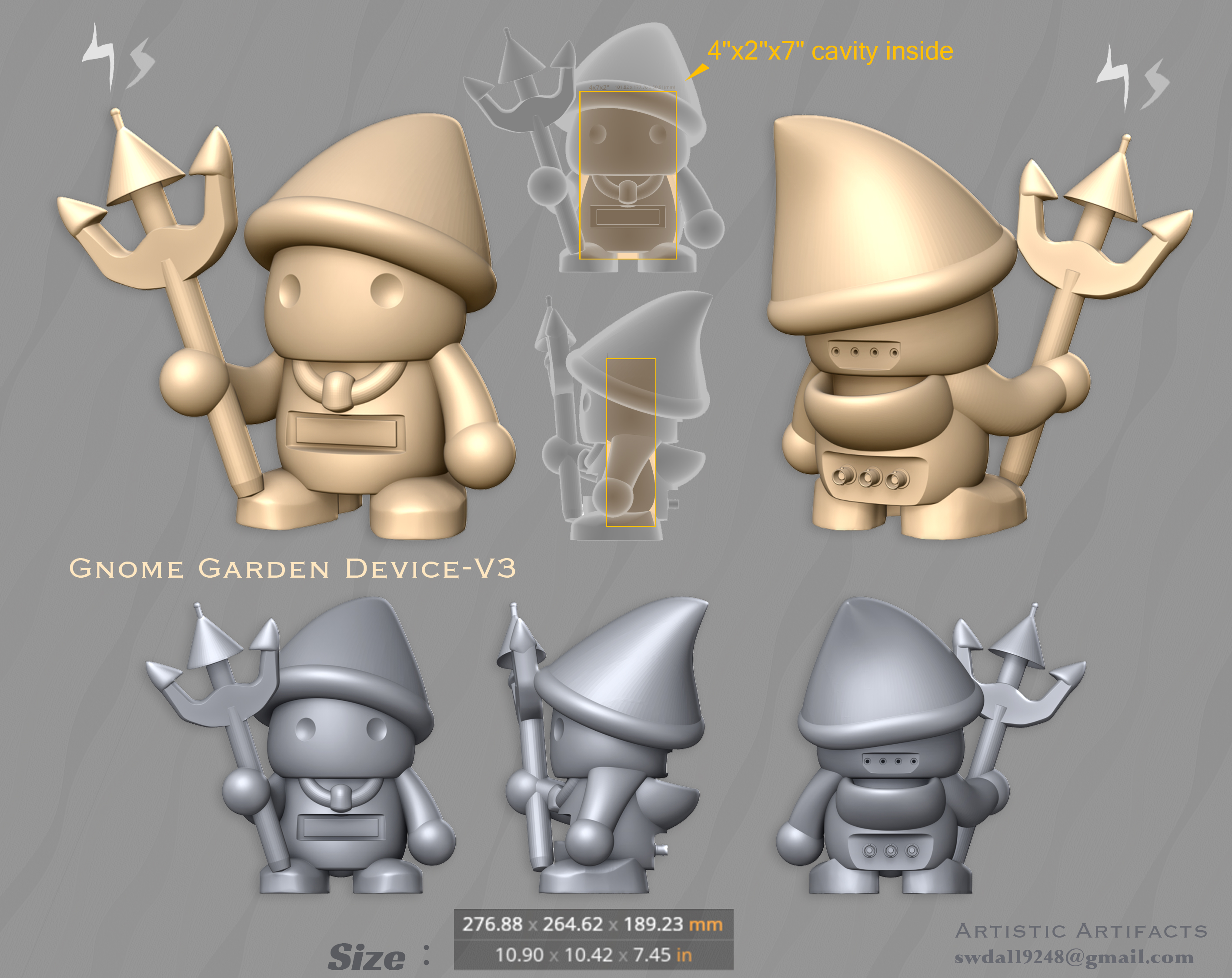

#13 Technology Gnome Garden Device-V2 by Artistic Artifacts
I try to make a more funny styling style, maybe give me some advice? Or do you prefer standard proportions? Thank you.
more
Jun 23, 2017 17:13
#16 Gnome needed for Garden Device by SaketCad
Concept-3.Awaiting your feed-back.
Rgds,
Saket CAD
more
Jun 24, 2017 12:43
#19 Gnomy by REDA
;)
more
Jun 25, 2017 1:49
#21 Gnome V5.0 by Adam
Declined
Jun 25, 2017 12:48
#22 Modern Gnome V2 by Martin Boillat
After a complete rework of my previous creation, here is a brand new gnome model, which follows most of your guidelines. I am aware the overall look is quite simple, as I tried to keep it as modern as possible, but an additional belt or some details can be added if you think they are relevant to make it look more like a garden gnome.
I am still available and hearing forward your feedback,
-Martin
more
Jun 25, 2017 15:58
#23 robognome by RBLdesign
Hi. Here is my first entry. The ideea of that position should be `` ready to serve you`` kind of :))) . I still need to find the locations for the screen and the outputs, but right now I need a feedback to be sure I go in the right direction or not.
more
Jun 25, 2017 21:35
#24 GNOMY 2 by REDA
;)
more
Jun 26, 2017 0:35
#25 GnomeBot by unocuatro
Hi, here is my concept, please review. I´m waiting for your comments.
more
Jun 26, 2017 1:47
#27 Garden Gnome by Paul Hekky
Declined
I went for a more traditional gnome design. Let me know what can be edited to make it better. :)
more
Jun 26, 2017 23:58
#29 Modern Gnome V3 by Martin Boillat
I started from my last version and added a beard, while keeping the ports bay on the back and the lcd housing on the front.
more
Jun 27, 2017 9:42
#30 Gnome needed for Garden Device by SaketCad
Concept-4
more
Jun 27, 2017 16:39
#32 Modern Gnome V4 by Martin Boillat
I made extras minor improvements, such as making the lcd housing appear on the renders, and optimizing the shape for 3D printing (especially in the feet area).
more
Jun 27, 2017 19:21
#34 Modern Gnome by Adam
Jun 27, 2017 19:56
#39 GnomeBOT Design V5 by Martin Boillat
Update with a more detailled facial expressing. Also added a belt, resized the LCD screen, and adjusted the symmetry at feet level.
more
Jun 28, 2017 11:14
#42 Render test by zerroug ayoub
render test without materials.
more
Jun 28, 2017 17:15
#47 GnomeBot update by zerroug ayoub
check this update and let me know , thank you.
more
Jun 28, 2017 23:18
#48 Gnome needed for Garden Device by SaketCad
Jun 29, 2017 11:00
#51 GnomeBot update by zerroug ayoub
Jun 30, 2017 22:55
#52 Hidden genome by NabilZer
hey
it's my second design ,my first design "robotgenome" was not a 2 part model,cauz i didnt get the description right.
this is a new model that i colled " the hidden genome" that hide in plants pots ,new featres addded
Hope u like it
with no feedback they will be no improvement on the design
thank u
more
Jul 1, 2017 17:32
#53 GnOOme by REDA
;)
more
Jul 1, 2017 23:04
#55 Gnome needed for Garden Device by SaketCad
Concept-5
more
Jul 3, 2017 17:08
#60 Gnome by Adam
Jul 4, 2017 10:29
#59 GnoGno by REDA
;)
more
Jul 4, 2017 8:24
#62 GnominF by REDA
The screws are more normal as well! ;) Thanks to rates
more
Jul 4, 2017 13:19
#67 Gnome v1 by DeBasstyan
Jul 5, 2017 10:31

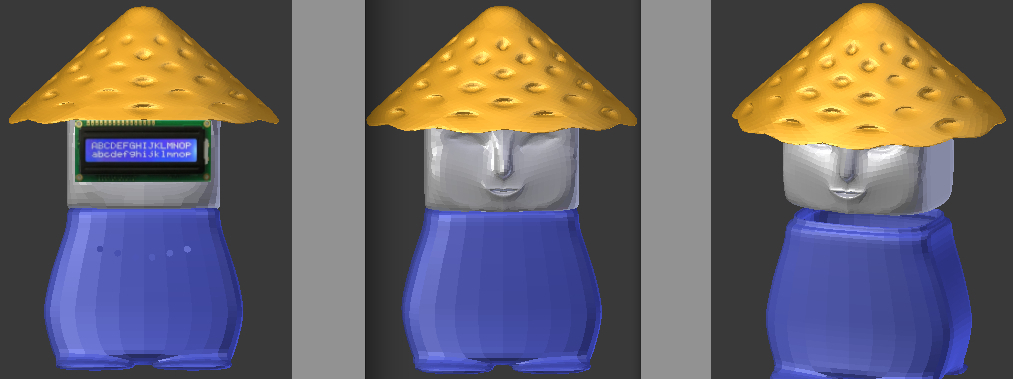

#69 the corn pot head gardener gnome by NabilZer
this is the most complexe cool n usefull design that i called "the corn pot head gardener gnome" long title ..lol..^^ i could't design better than this "i love pots"
featres :
LCD in the gardner pocket
hands that can grab toys n signs so kids can play with it
wear glasses
can hang in trees
has a unique face "corn like the hat n pot face"
this is very simple design than can be molded "injected plastic" n 3d printed
i think this could be a great animation character
for me i love it , do you ?
if you like it i'll continue designing
more
Jul 5, 2017 16:47

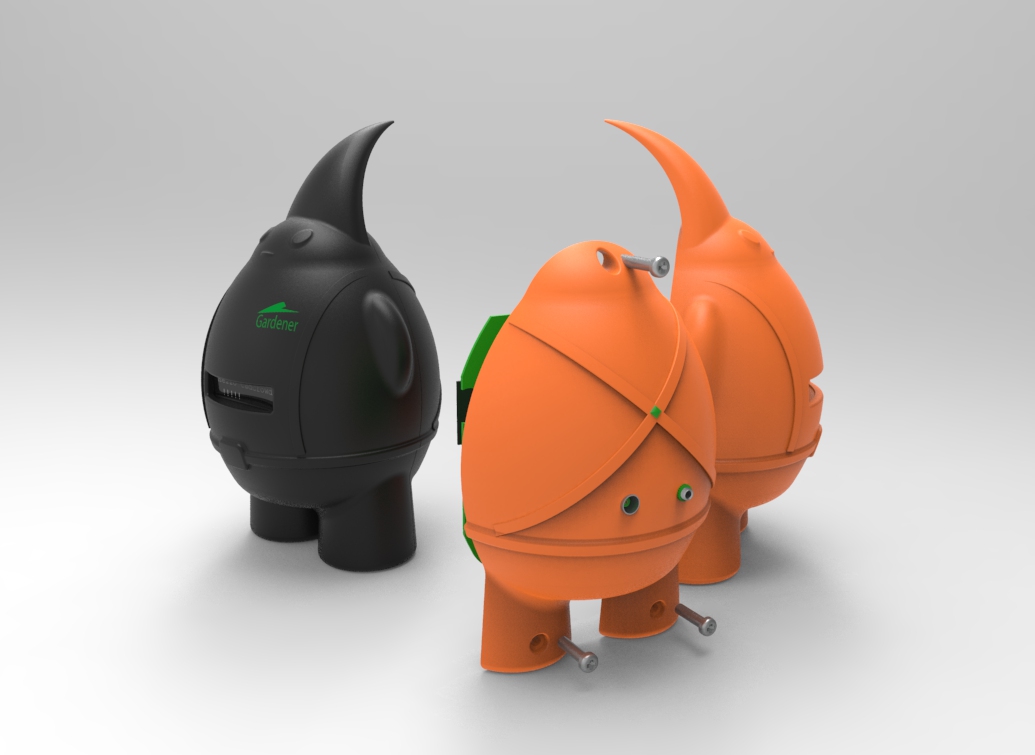

#73 Gnomebot by Adam
He's evolving nicely !
Held together with plastite screws.
Same model, different color, shelled as needed, all components fit.
more
Jul 5, 2017 19:27

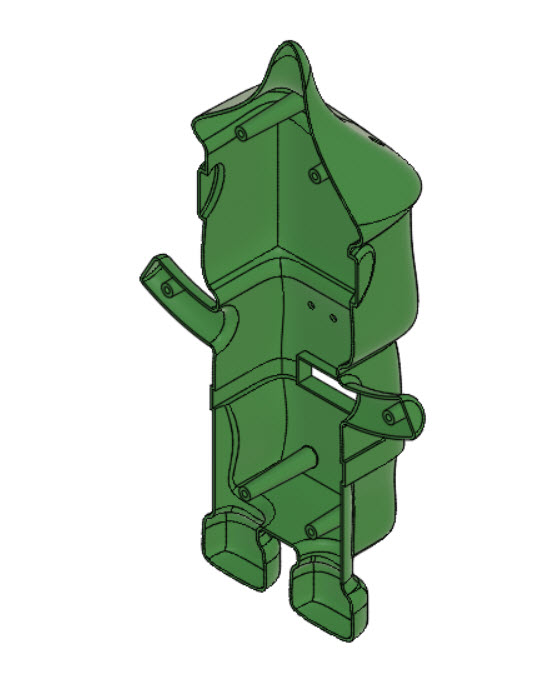

#75 Rear Enclosure Drawing by Adam
Front drawing coming soon
more
Jul 5, 2017 19:48
#76 Troll Head Sensor Bot by Decker
This Troll Head Sensor bot would be made from a expanded foam product poured from the bottom. An insert in the bottom would then be placed within very easily slid into a pocket for both protection and concealment. Senors would be within the figure. If needed small holes could be drilled to place sensors at various strategic spots meant to look like eyes, a mouth or ears. The ornamental design would not be intrusive for the owner to house with a garden space. This design can also be made to look like porcelain, cement, or plastic.
more
Jul 5, 2017 20:42
#84 "G".BOT by Tojei
This .exe file type is not the virus. You can view my model like VR.
It's only the concept to give my idea.
Regard,
Tojei.
more
Jul 6, 2017 13:00
#89 Garden Gnome/Robot by Stella X
This comes in three parts. However the hat can be connoted to the head part. Was thinking of having the antenna come through the hat.
Ready for 3D print in plastic or sandstone. Stl or obj file ready upon request. Files can be modified.
more
Jul 6, 2017 19:00
#50 Gnome needed for Garden Device by SaketCad
Jun 29, 2017 19:50
#98 GnomeBOT by Eira
My Last Entry Submission
Thank You
more
Jul 7, 2017 5:34
#101 GnomeBOT V4 by Pablo Gosso
Just in the nick of time.
It is a work in progress but you know what I capable of regarding Product design and details.
Hope you like it. Pablo
more
Jul 7, 2017 12:47

Discussion

Showing last 20 comments - View All

Lucian

Administrator

Wed, 19 Jul 2017 14:27:20 +0000
Hi everyone,

The contest is over, so if you want to talk to each other about the designs, entries etc, I appreciate if you can do that privately or to open a new thread in the forums, that will be visible for everyone.

As you know, each designer who participated to the contest (and the buyer also) receive email notifications when a comment is posted, so is really annoying to receive notifications each day, even the contest ended.

As for showing the winning entries, I'm sure that Pablo and Eira could do that (in the forums or privately), since the contest ended.

Hopefully this will be the last post here, at the contest page. There is no need to reply to my comment, you could send me a message if something is not clear.

Keep up the good work!

Thanks again,
Lucian

REDA

Designer

Wed, 19 Jul 2017 11:31:39 +0000
Hi Gardener & Pablo,

After congratulations,
In the recommendations and feedback you tell me that you like the beard and the 2nd winner has no beard! .... I would like to see the first winner to do my analysis and synthesis. To remind you I made 20 entries and I worked hard in this project.

Message for siti,: you deserve it (I wanted to clarify the ambiguous choice)

Regards
REDA

RBLdesign

Designer

Tue, 18 Jul 2017 12:43:49 +0000
Congrats Pablo and Eira ! good work.

Eira

Designer

Mon, 17 Jul 2017 23:23:50 +0000
Congrat! Pablo

Pablo Gosso

Designer

Mon, 17 Jul 2017 22:31:47 +0000
Thanks REDA and NabilZer.

NabilZer

Designer

Mon, 17 Jul 2017 21:03:26 +0000
congra pablo u deserve it ;)

Gardener

Buyer

Mon, 17 Jul 2017 20:32:56 +0000
Thank you to all the designers who spent time and energy on our project. We were grateful to have so much engagement during the whole process.

Congratulations to the winners!!!

Top designers--be on the lookout for invitations to future private contests for our additional nodes!

REDA

Designer

Mon, 17 Jul 2017 20:30:14 +0000
Congrats to Winners

Pablo Gosso

Designer

Mon, 17 Jul 2017 20:29:11 +0000
Thanks. We worked hard on this project!!

REDA

Designer

Thu, 13 Jul 2017 20:57:05 +0000
Hi,
Who Wins Here? I have 20 entries here !!!!
It took me almost 2 days in everything :)

Lucian

Administrator

Wed, 12 Jul 2017 09:44:02 +0000
Hi everyone,

Please stop making spam or leave unnecessary comments (neither answering to this message). The contest is at "Choosing finalist" stage and the buyer will select the winner(s) soon.

Thanks,
Lucian

REDA

Designer

Sat, 08 Jul 2017 23:15:50 +0000
Hi Pablo,
Prognosis winners
1 )
2)

REDA

Designer

Fri, 07 Jul 2017 19:33:19 +0000
Hi Rouhania,
Seriously Dou you have to bring back this body! ?! hehehe

REDA

Designer

Fri, 07 Jul 2017 16:16:14 +0000
The contest is over, I do not see the interest of hiding the design now ..
Unless it is the body of Maya the Bee retouched! .... or a known body design ....

Is it true ???

Gardener

Buyer

Fri, 07 Jul 2017 14:38:03 +0000
Hey Eira, Would you mind sending a front rendering changing the color to white or gray? The black is hard to see details.

Thanks,

Daniel

Pablo Gosso

Designer

Fri, 07 Jul 2017 13:51:32 +0000
Congrats to all designers!! we really work hard for this one.
Good Luck to the winner!!

See you on the next contest!

REDA

Designer

Fri, 07 Jul 2017 13:15:28 +0000
Hi,

Is it still open?

Gardener

Buyer

Fri, 07 Jul 2017 02:12:44 +0000
Adam, REDA, and Pablo--thanks for your comments about materials.

We're 3D printing this first model as a prototype. We'll be iterating on the design many more times before we get to manufacturing.

Pablo Gosso

Designer

Thu, 06 Jul 2017 23:44:33 +0000
I will definitely contact the administrator this matter once the Contest is finished.
It kind of feel we are being played.

Pablo Gosso

Designer

Thu, 06 Jul 2017 23:38:52 +0000
Either way, let me express one thing:
I really don't feel good about how the client is cannibalizing the concepts trying to make us use things from other concepts into a Frankenstein product. I really feel bad about Zerroug who has though and designed that shape in the first place, and no one would have a clue how to design it if it were for him. For me, this is really unethical.

Similar Contests on Cad Crowd

3D Hjälp | First test project
Hi! We're a 3D printing company based in Sweden, Europe and are on our hunt for skilled 3D modelers for 3D printing. This is a first test project and the winner will get hired to do more work. See our website at http://3dhjalp.se/
Universal plastic side release buckle adapter
Looking for a 3D printing design for a universal buckle adapter that will connect to a variety of existing side release buckles that you might find on backpacks, luggage or pet collars. The universal buckle adapter will connect to the male end on one side and the female end on the other side of the existing buckle. The design will be for a medium sized buckle that attaches to a 1" wide strap.
Fashion Design - Jewelry Design
I am a fashion company and I am looking for a 3D modeler to help me create My designs. These are NOT designs for fine jewelry but are are usual shapes, very small, that can be used in leather and on leather. Without divulging all my design secrets, I would like to meet you and discuss if we can come to a compatible agreement. I would also like to see your shop and be able to visit your shop from time to time to see how the designs are coming along. I am living and working in the fashion district of dtla, so I am close to the heady rush of fashion every second of every day. I am very focused on this label and I have been working on this for a full year now. We have clothes at the patternmakers and are also working on shoes and handbags. This will be a complete collection Also, at the time of meeting, I would need to have you sign our confidentiality agreement. Could you bring some samples of your work to this meeting, when we DO set up a time and place for this meeting?? Do you have a website of your work?? What type of 3d modeling software do you use?? Rhino? or other? Thanks so much for your time. Warmest Regards, Kimberley Carson RM LLC
Awesome 3D
quad copter design for aerial photo.
La'al Ratty Locomotive & Coaches Creation Contest of Funitude!! :D
I basically need No. 7 River Esk. It's a 2-8-2 with 8-wheeled tender in lnwr blackberry livery with black, off-white, & red lining. The other stuff can be found in the pictures. The Non Open Coaches are blue & white, the open coaches are maroon. I'd like them ALL to be ready to run *that means I need the chassis motor built in, built in the locomotive itself of course*. The couplings are 3-link couplings. The coaches are bogie used. I can add the bogies, I just need it to where they just need to be screwed into the floor of the coaches :). Also, the engine and coaches need brake pipes on both ends of both the engine & coaches. Also, there are 10 coaches, only 3 are open coaches, the rest are the regular ones.
