Request a service

Simple $75

Standard $200

Advanced $350

Single Part CAD Design
One simple mechanical part modelled from a clear sketch, reference file or complete dimensions. Includes parametric CAD, STEP and STL/3MF files, basic printability review and one minor revision.

3-day delivery

1 revisions

Functional Part or Small Assembly
One functional custom part with several interfaces, clips, flexible features, fit requirements or mounting points. Includes design refinement, parametric CAD, STEP, STL/3MF, design-for-additive-manufacturing review and two revisions.

7-day delivery

2 revisions

Mechanical Product Development
A complex functional component or small mechanical assembly involving multiple interfaces, tolerance planning, flexible or moving features, enclosure integration or several connected parts. Includes native CAD files, STEP, STL/3MF, technical drawing or exploded view and two revisions.

9-day delivery

2 revisions

Add-ons:

Additional revisions (each)

$35

Report this service

About this service

I provide mechanical CAD design and product development support for functional parts, assemblies, fixtures, enclosures, adapters and prototypes.

My services include parametric 3D modelling, 2D-to-3D conversion, reverse engineering from drawings, photographs or measurements, assembly design, design for manufacturing, design for additive manufacturing, technical drawings and print-ready files.

I work primarily with SolidWorks, CATIA V5, Autodesk Inventor and AutoCAD. Deliverables may include native CAD files, STEP, IGES, STL, 3MF, DXF, PDF drawings, exploded views and revision-ready technical documentation.

Each project is reviewed before starting to define the scope, required files, delivery time and included revisions. Package selection depends on geometry, number of components, functional requirements and documentation level.

Service offer categories

Reverse Engineering 3D Product Modeling 3D Printing Design

Software & skills

3D Design 3D Printing Design DESIG Inventor Modeling Prototype Design Solidworks Ultimaker Cura design iterative design +7 more

Portfolio

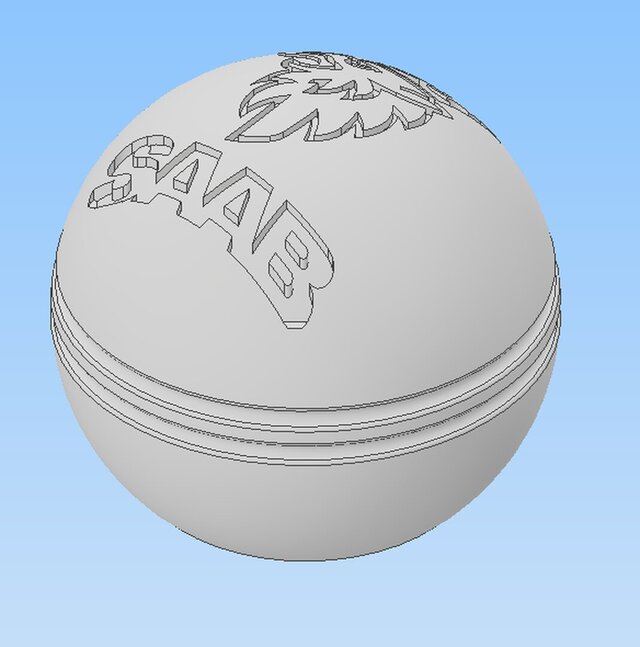

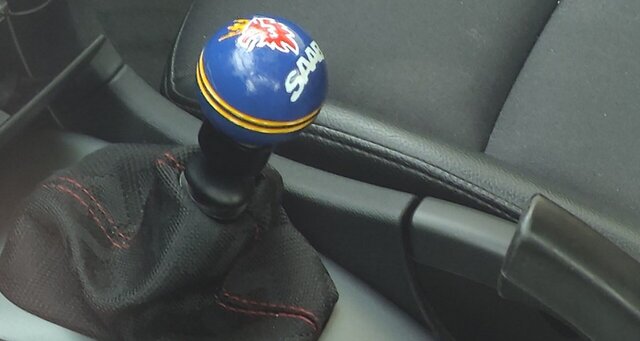

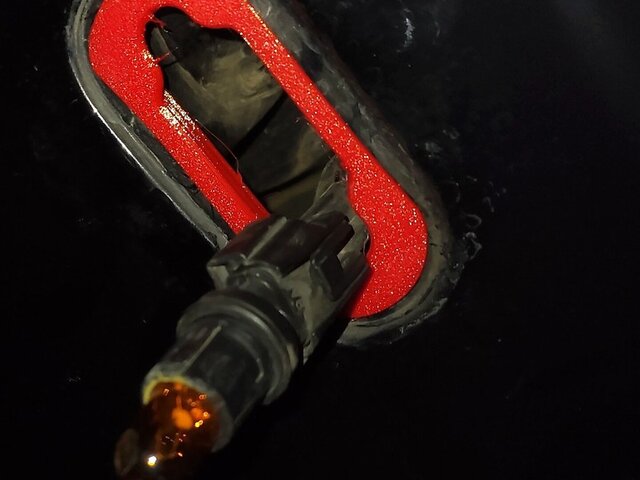

Reverse Engineering and Functional Vehicle Integration

13 0

Reverse Engineering and Functional Vehicle Integration

8 0

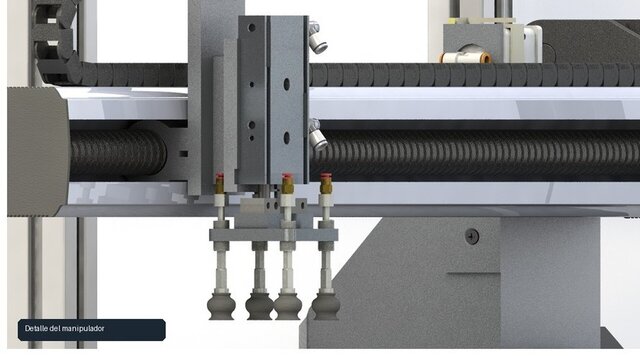

Flexible Manufacturing Station Design

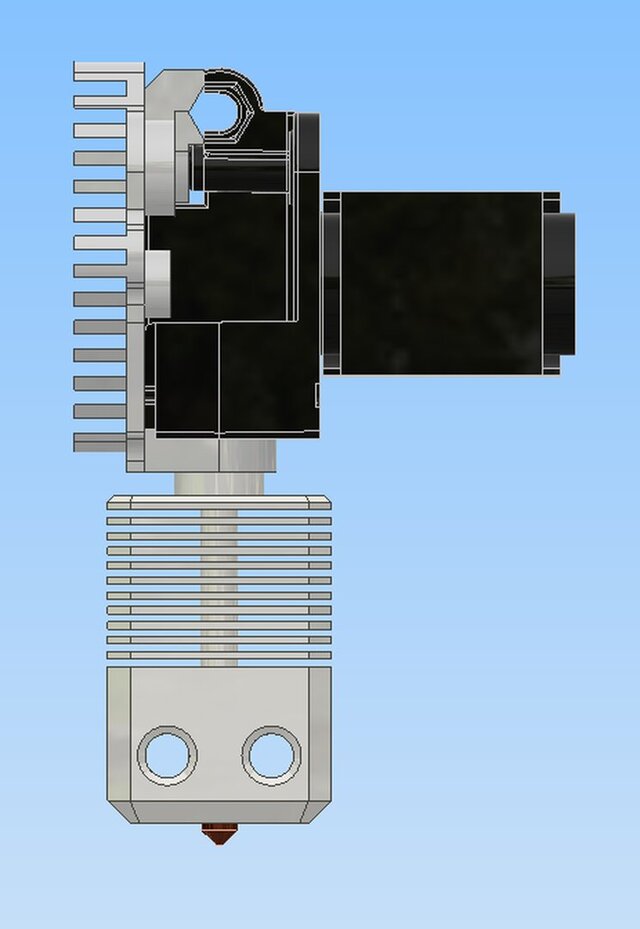

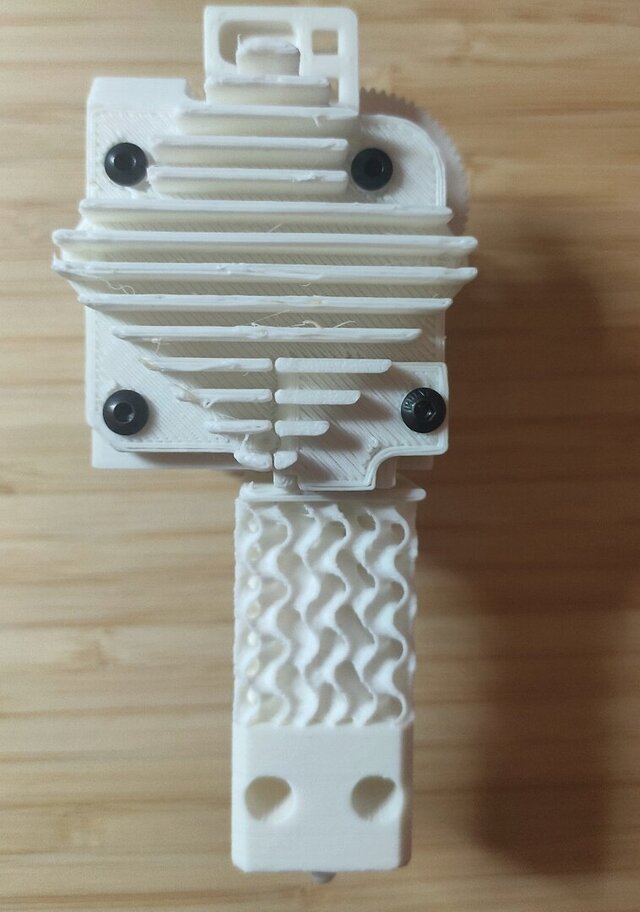

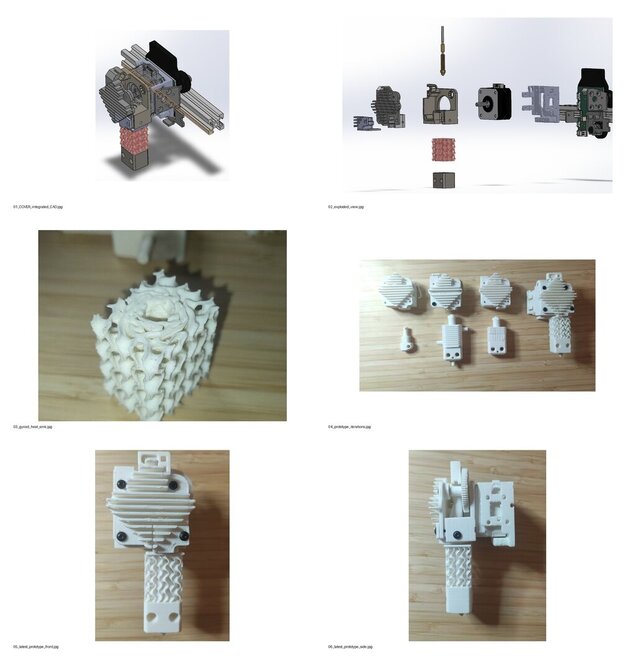

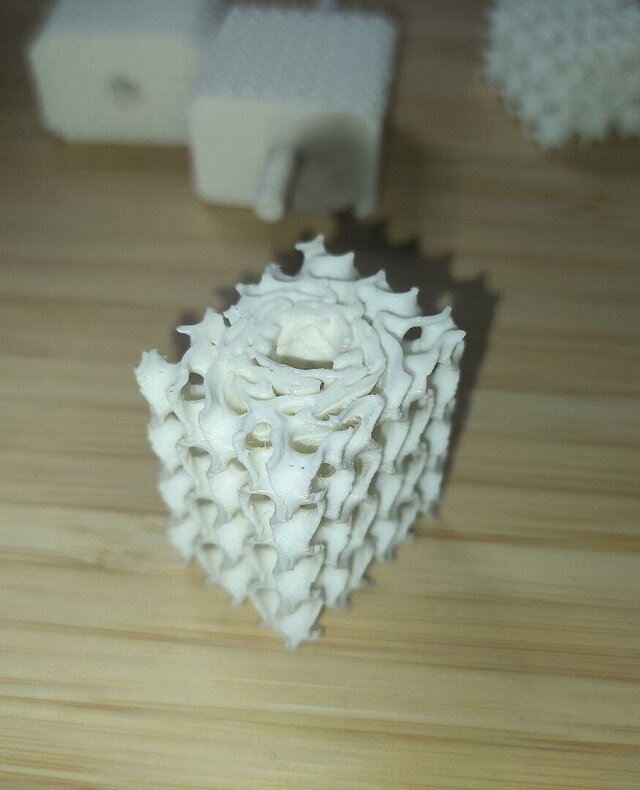

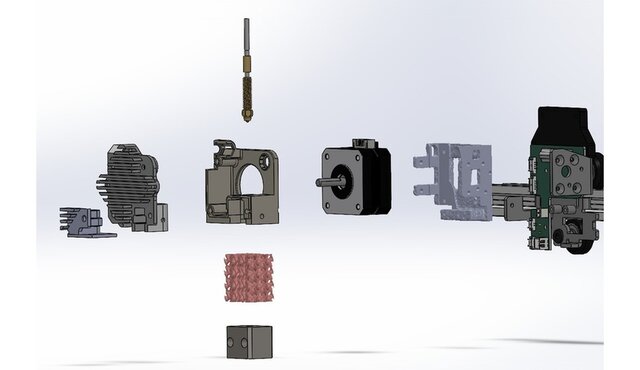

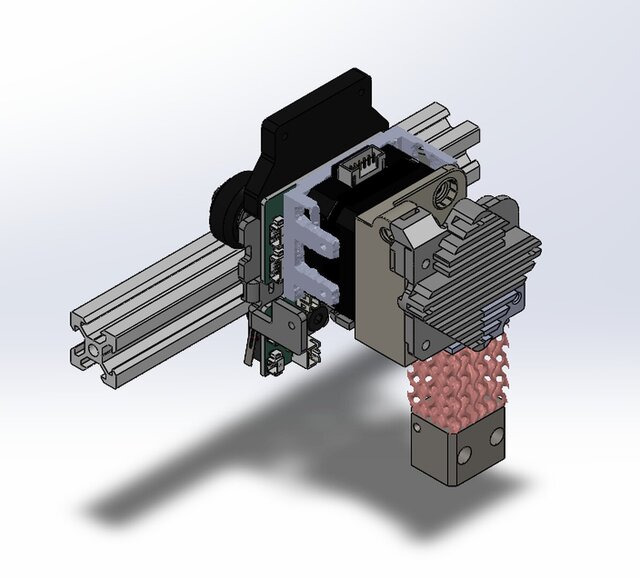

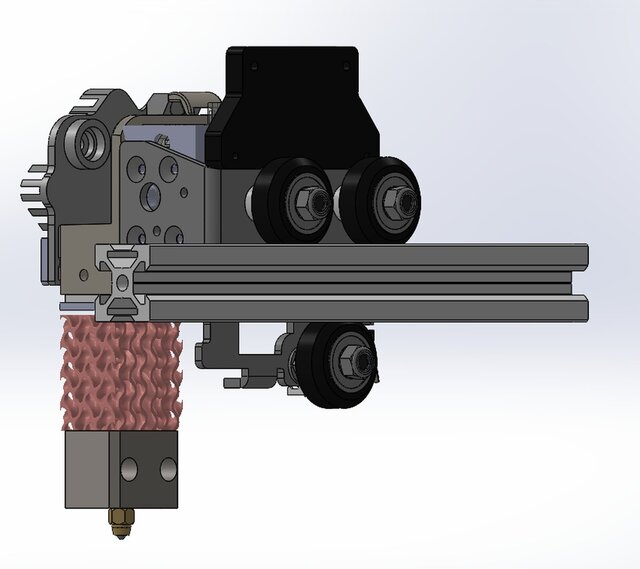

High-Temperature Extrusion System — Academic Project in Progress

9 0

High-Temperature Extrusion System — Academic Project in Progress

This service includes

Service tiers	Simple $75	Standard $200	Advanced $350
Summary	Single Part CAD Design	Functional Part or Small Assembly	Mechanical Product Development
Details	One simple mechanical part modelled from a clear sketch, reference file or complete dimensions. Includes parametric CAD, STEP and STL/3MF files, basic printability review and one minor revision.	One functional custom part with several interfaces, clips, flexible features, fit requirements or mounting points. Includes design refinement, parametric CAD, STEP, STL/3MF, design-for-additive-manufacturing review and two revisions.	A complex functional component or small mechanical assembly involving multiple interfaces, tolerance planning, flexible or moving features, enclosure integration or several connected parts. Includes native CAD files, STEP, STL/3MF, technical drawing or exploded view and two revisions.
Delivery time	3 days	7 days	9 days
Number of revisions	1	2	2
