Reverse Engineering and Functional Vehicle Integration

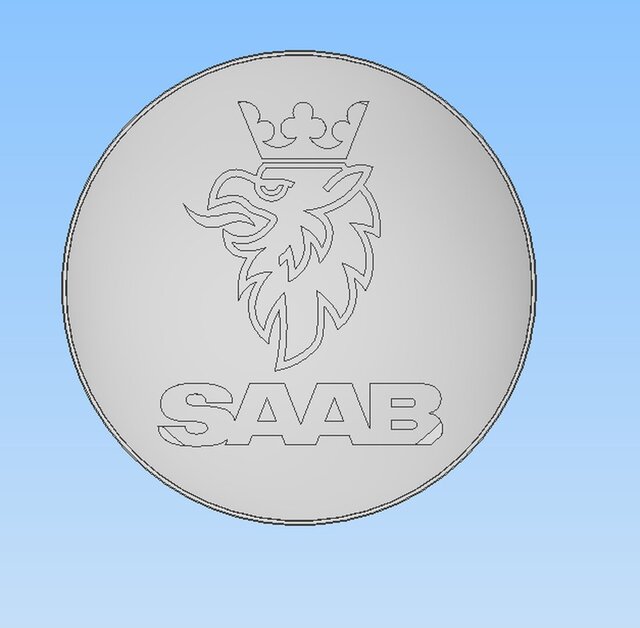

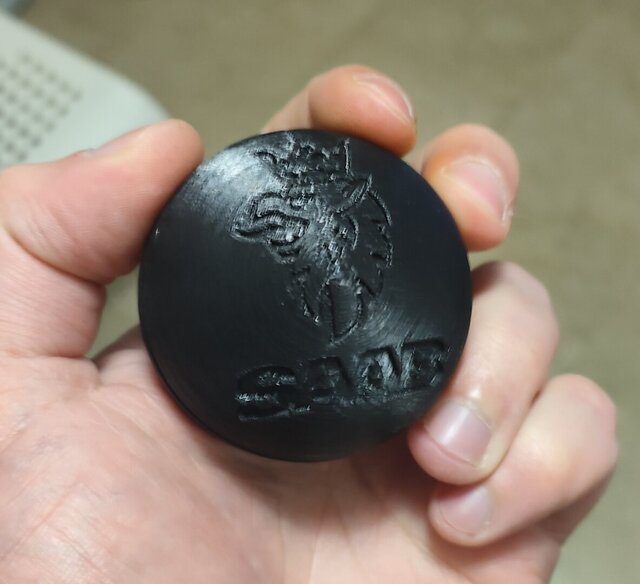

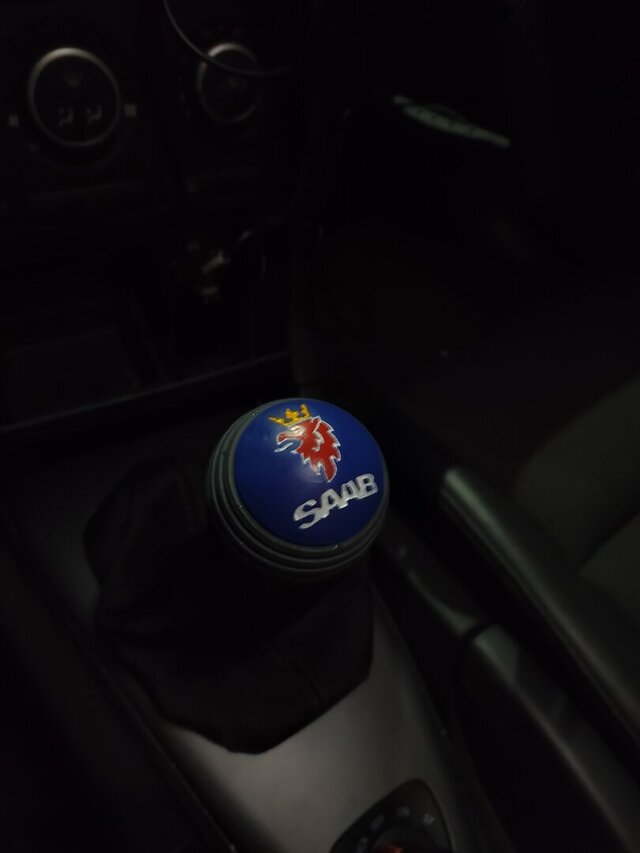

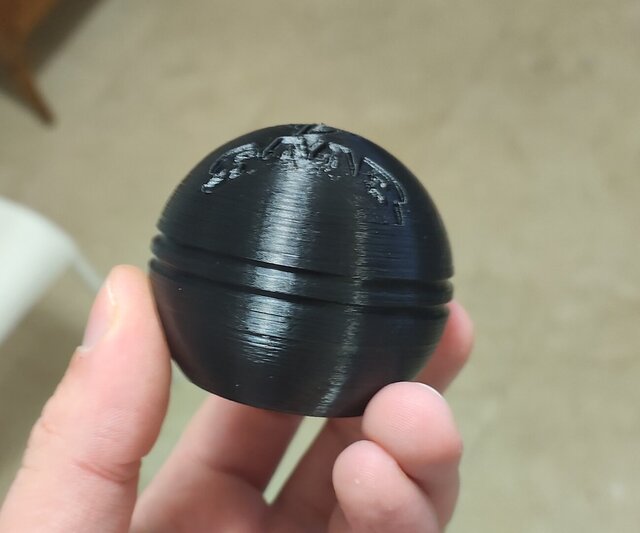

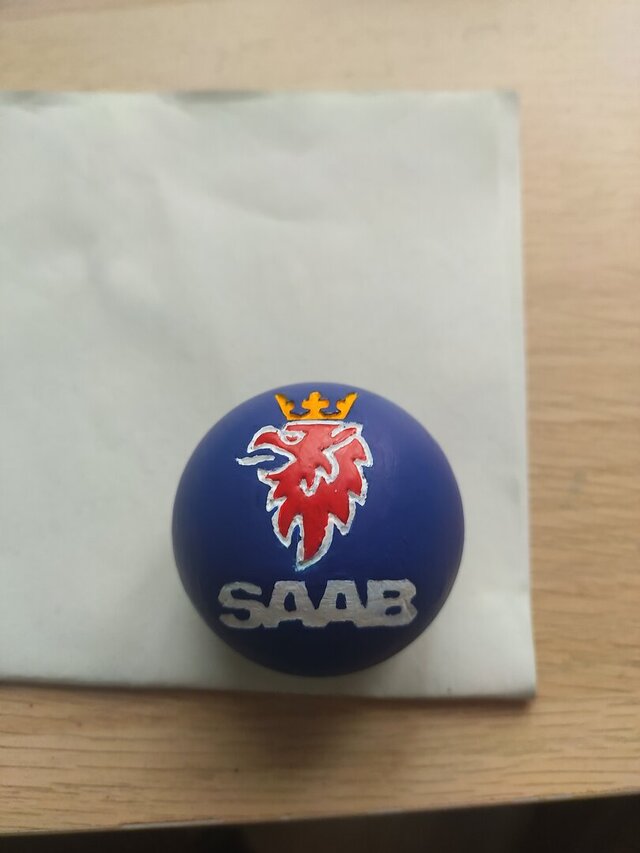

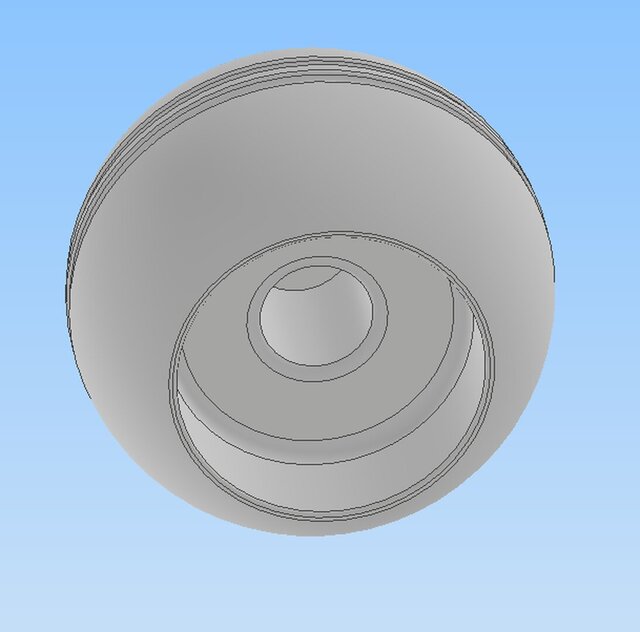

DESCRIPTION Reverse engineering and redesign of a small automotive interface component based on the existing part and installation geometry. The work included inspection of the original component, identification of the functional interfaces, CAD reconstruction, design adaptation and physical installation. The replacement geometry was developed to fit the available space and interact correctly with the original vehicle hardware. This project demonstrates part-to-CAD modelling, interface-based design and validation through physical installation. TOOLS SolidWorks / Autodesk Inventor, FDM 3D printing DELIVERABLES Recreated CAD geometry, STEP/STL files and installed prototype OUTCOME Component manufactured and installed successfully in the vehicle.
