High-Temperature Extrusion System — Academic Project in Progress

Report

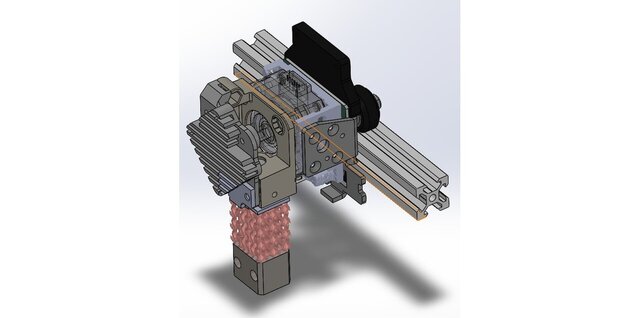

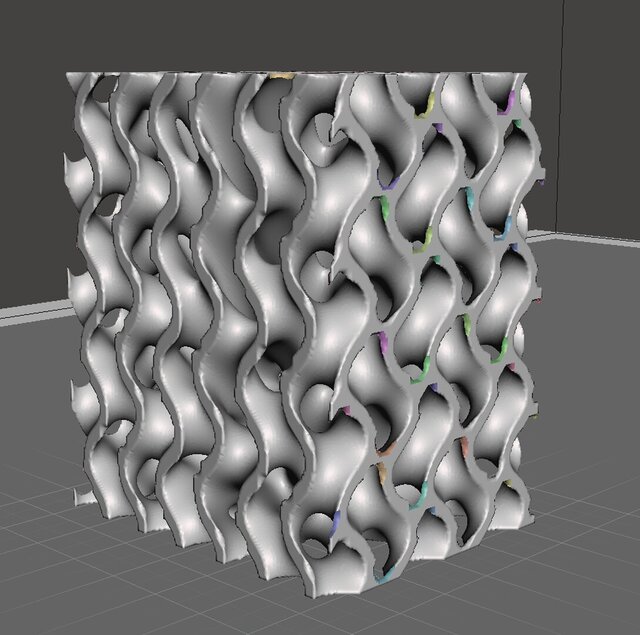

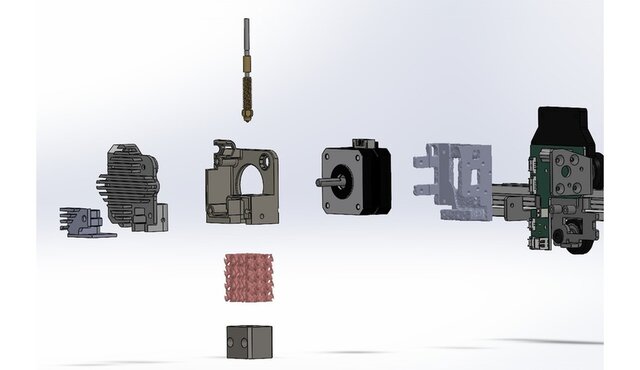

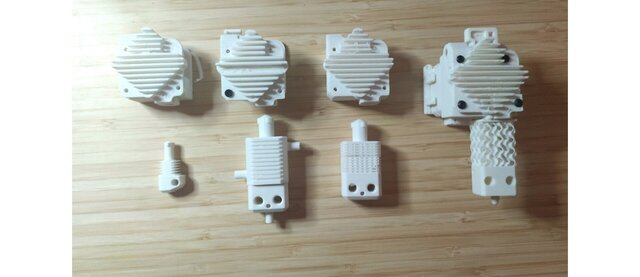

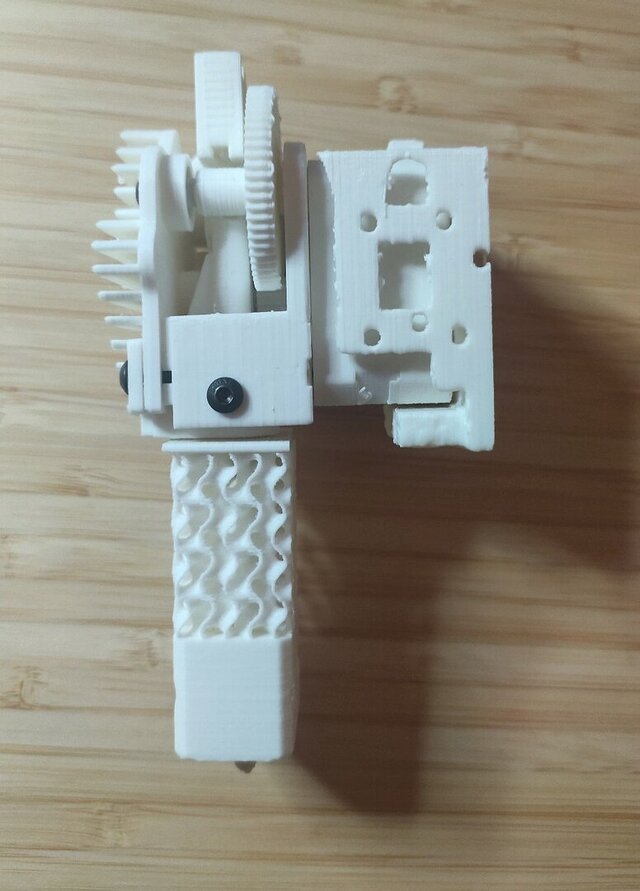

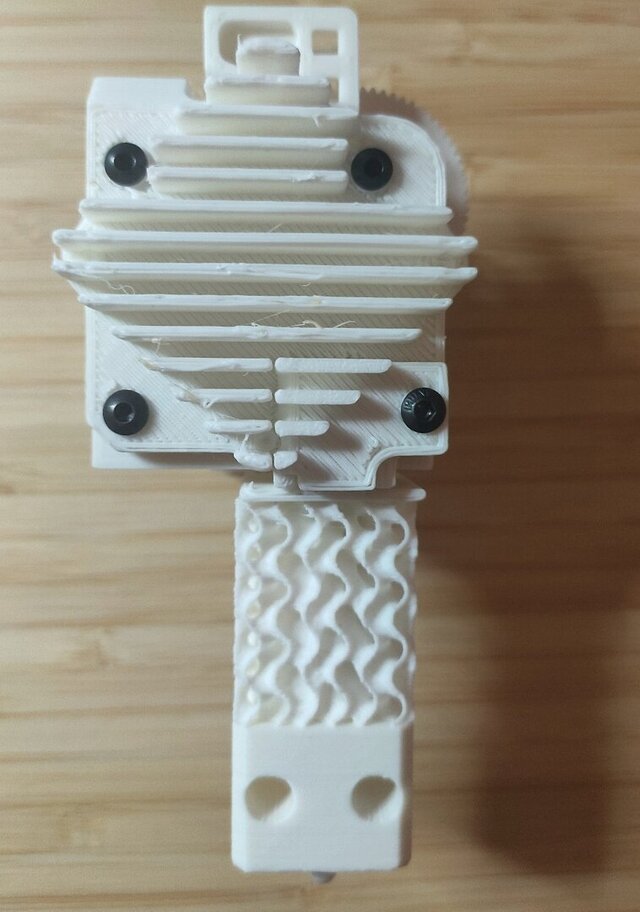

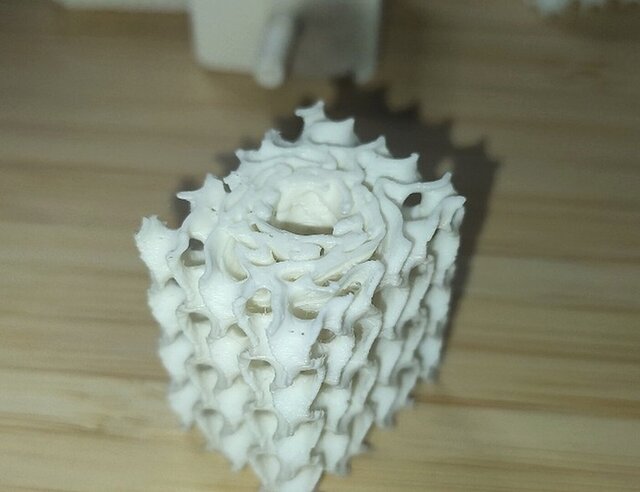

DESCRIPTION Ongoing mechanical engineering project focused on a modular direct-drive extrusion system for high-temperature polymers. The work covers mechanical integration, quick-change architecture, compact packaging, thermal-management concepts and iterative prototyping. The assembly combines a geared drive, mounting structure, heat-break interface, heater block and a gyroid heat-sink concept. Development has included parametric CAD, assembly modelling, interface definition, exploded views, additive-manufacturing studies and multiple physical mock-ups used to evaluate access, fit and integration constraints. TOOLS SolidWorks, Autodesk Inventor, OpenSCAD, FDM 3D printing DELIVERABLES Parametric assembly, STEP/STL files, exploded views and physical prototypes STATUS Academic project in progress. Images show design development and prototype iterations, not a finished commercial product.
