Rotating Wheel Transmission Assembly

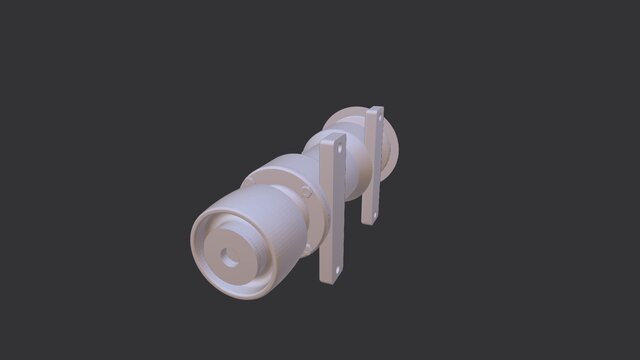

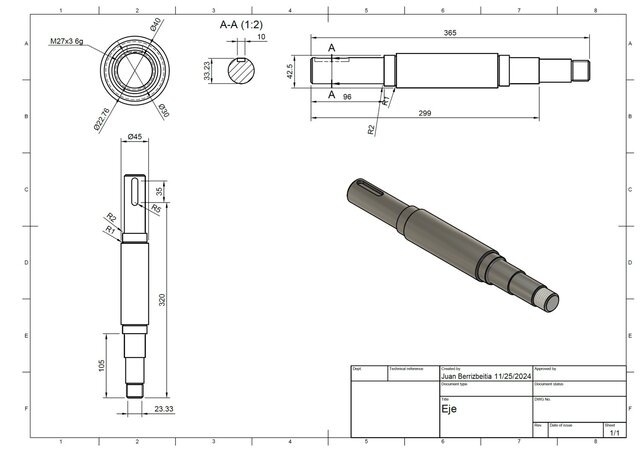

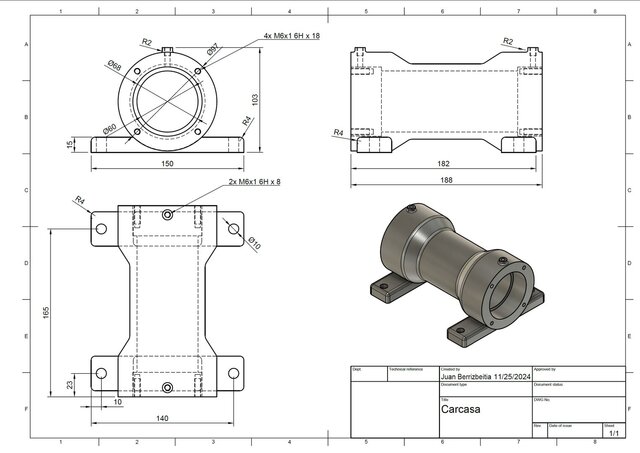

Rotating wheel transmission assembly designed in Fusion 360 for a university machine design course. Shaft supported on two bearings inside a housing with integrated mounting feet Bearing covers (anchor, blind and grease covers), spacer ring and anchor support Rotating wheel and feed stop bracket mounted on the assembly Full 10-sheet drawing set: assembly drawing with section view and isometric, plus dimensioned detail drawings of every part Tools: Fusion 360 (modeling and drawings)
