MT-MNT-ASSM-A.1-001

Report

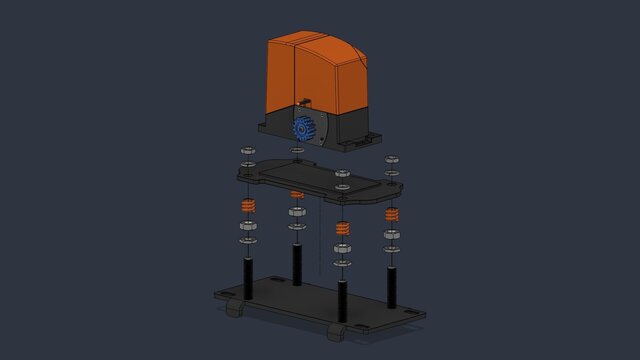

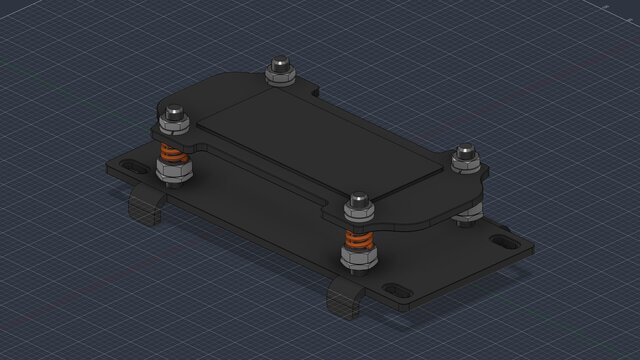

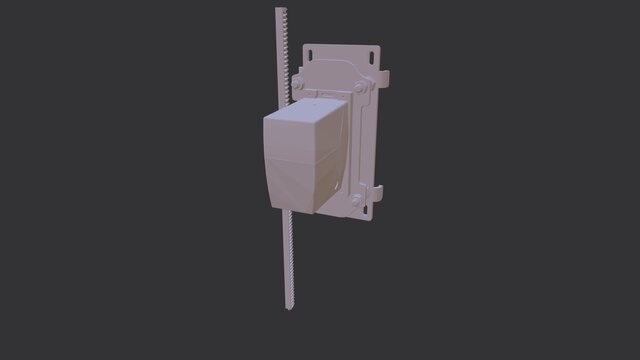

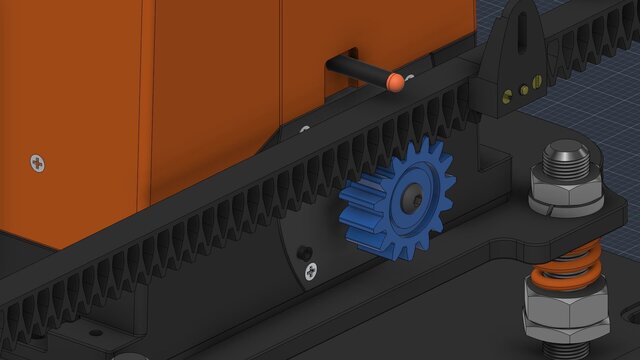

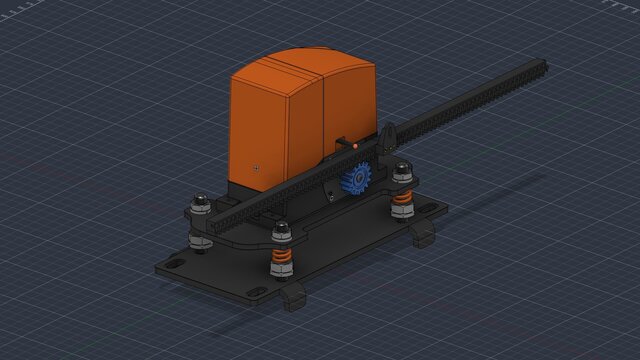

Here is a floating motor mount designed for a modular assembly. This module consists of 4X mounts that drive a 1200kg platform. The springs compress keeping a constant tension on the track to compensate for bumps and keep the assembly from slipping and skipping gears. Real assembly, Built for HCS Canada. Zero issues to date with the assembly. Zero revisions needed.
Published
in Machine Design Engineering Mechanical Engineering
autodesk designer automation mechanical-design engineer fusion mechanical-engineer mechanical-3d-modeling machine-automation
STEP/STP 3D Modeling Rendering Images
