Three-Hole Mechanical Flange

Report

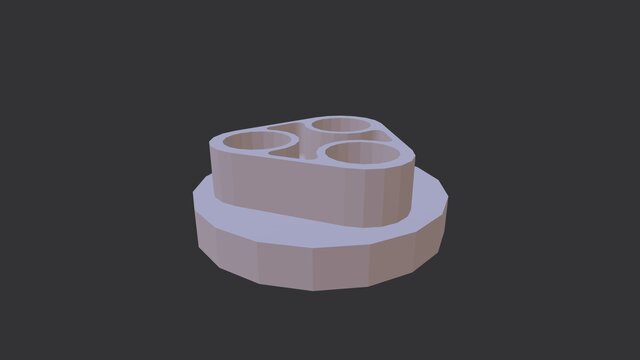

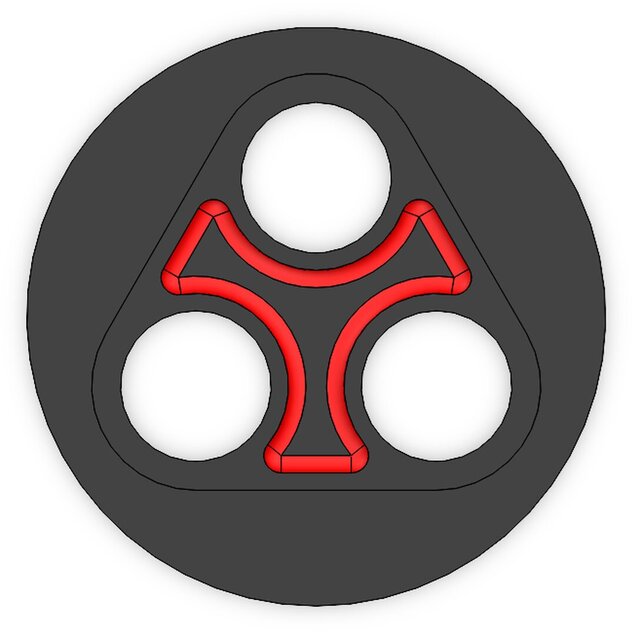

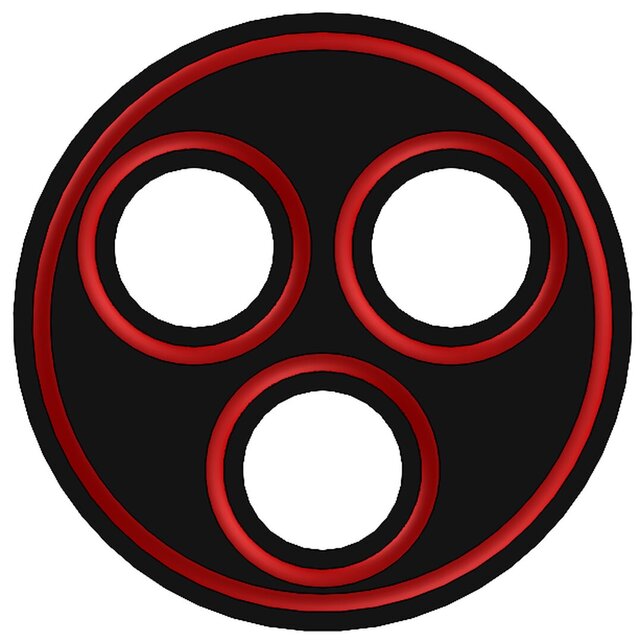

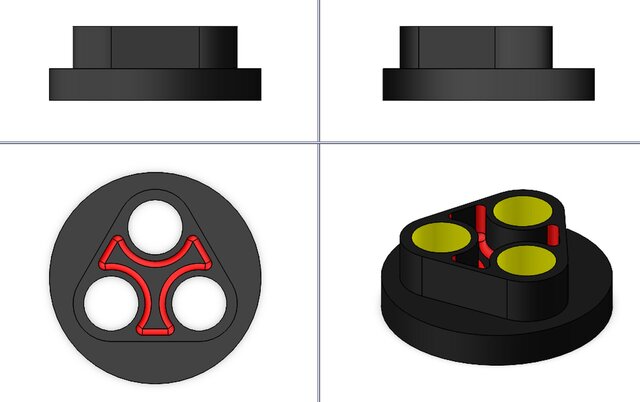

A 3D CAD model of a three-hole mechanical flange made from plain carbon steel. The part features a circular outer flange, three equally spaced holes arranged in a triangular pattern, and a raised central structure with reinforcing ribs. The design is suitable for mechanical engineering practice, CAD modeling exercises, and educational purposes.
Published
in 3D Modeling Design Industrial Design Services 3D Solid Modeling
solidworks cad-model three-hole-flange
Rendering Images STEP/STP 3D Modeling
