Threaded and stepped shaft

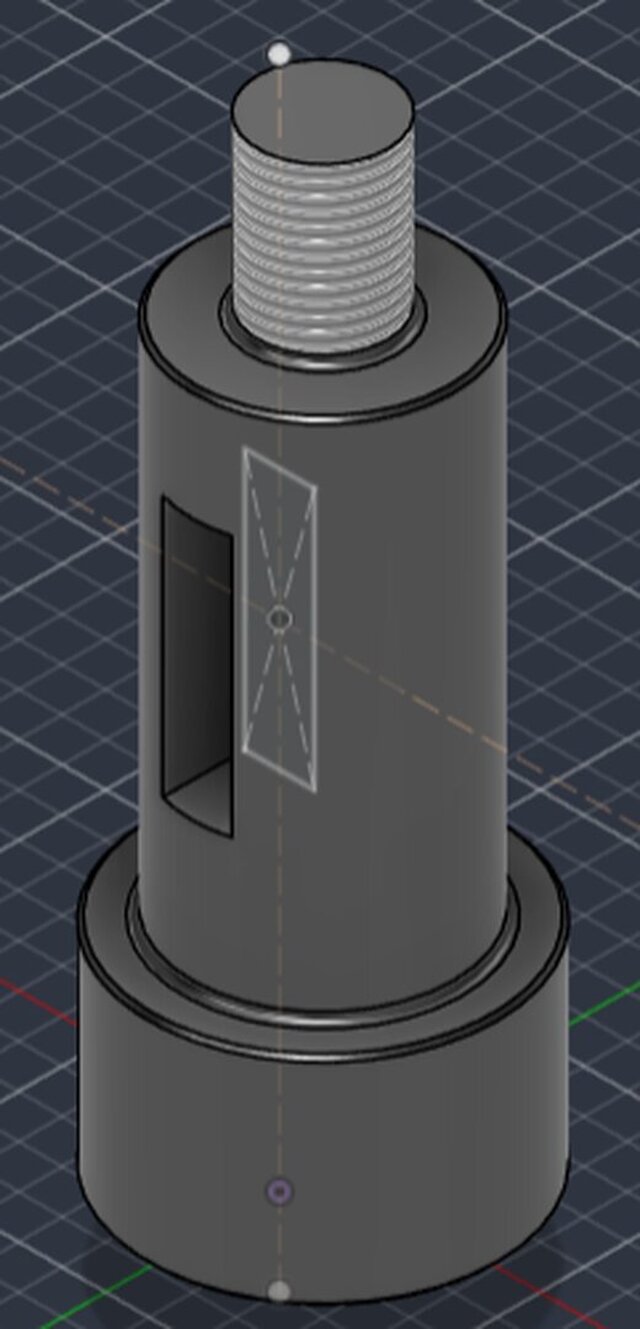

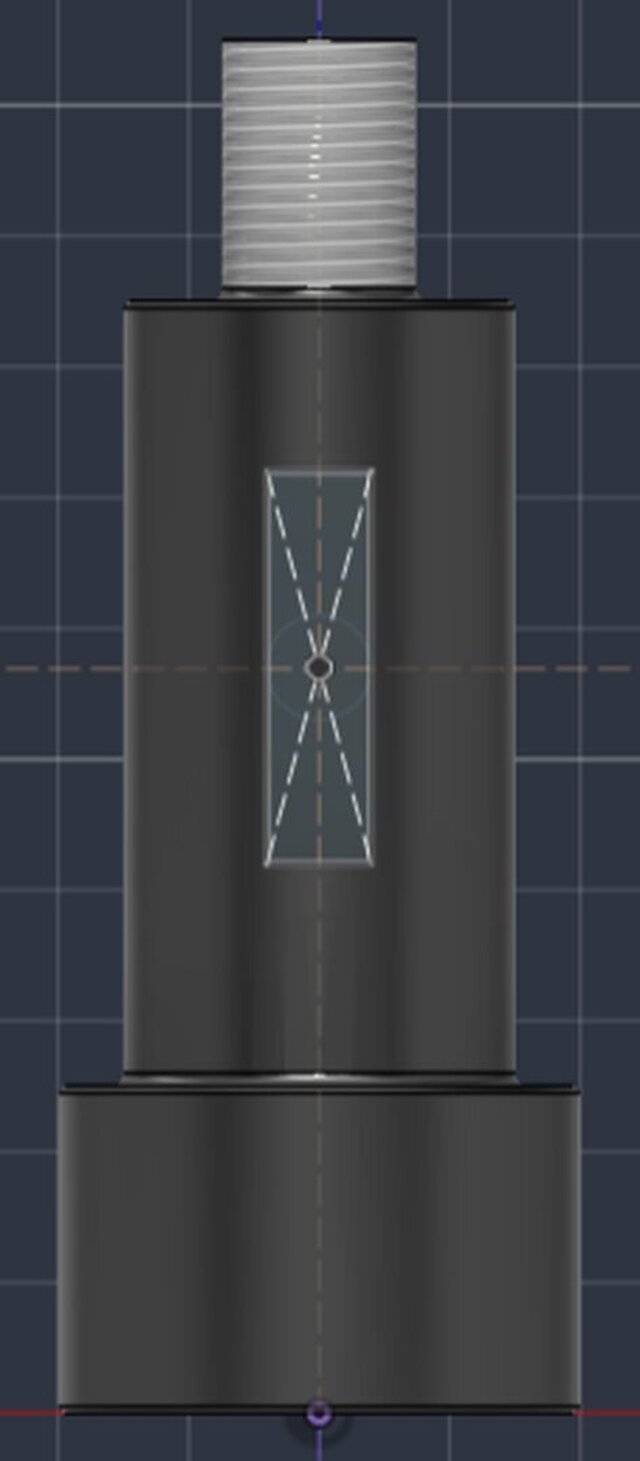

A 3D CAD modelling project involving a stepped cylindrical shaft with multiple diameters, a threaded end and additional machined features.
Created using Autodesk Fusion, the model demonstrates the development of rotational components commonly produced through turning and secondary machining operations.
The project highlights the ability to model detailed mechanical components with an understanding of practical manufacturing processes.
