The Saw Machine Design

  Download all files
Report

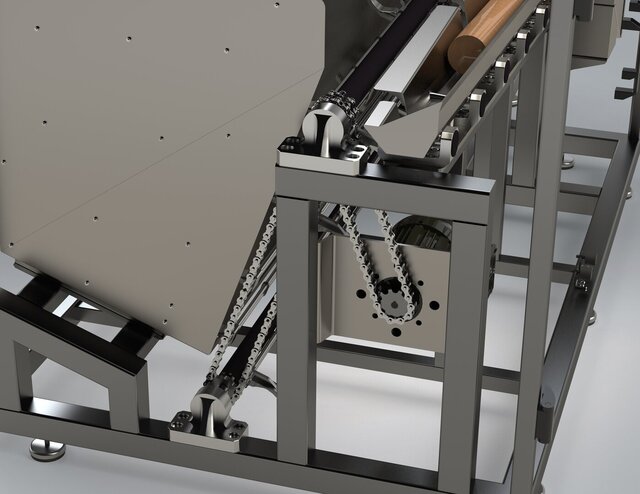

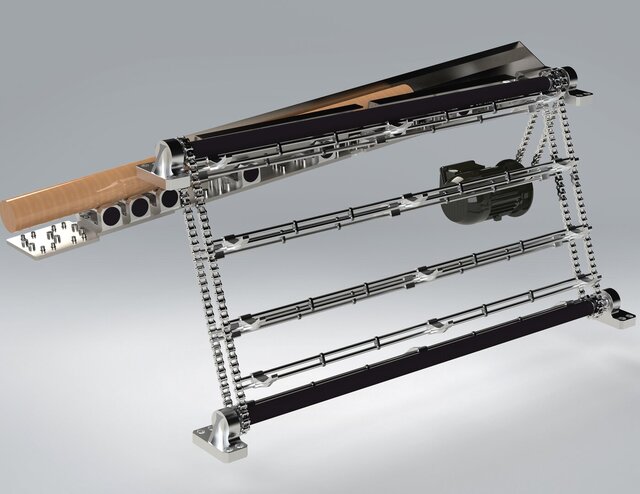

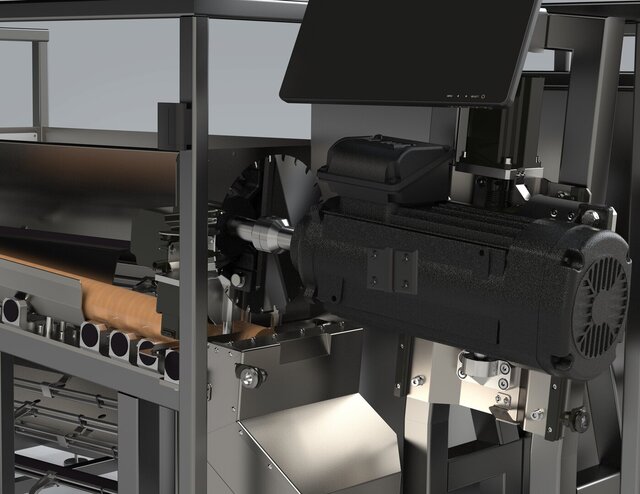

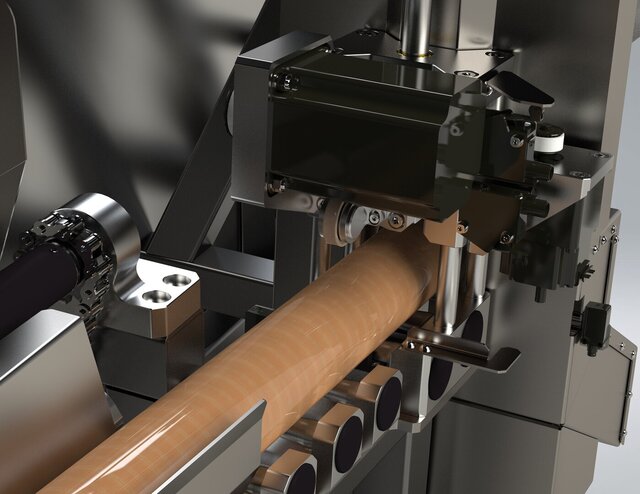

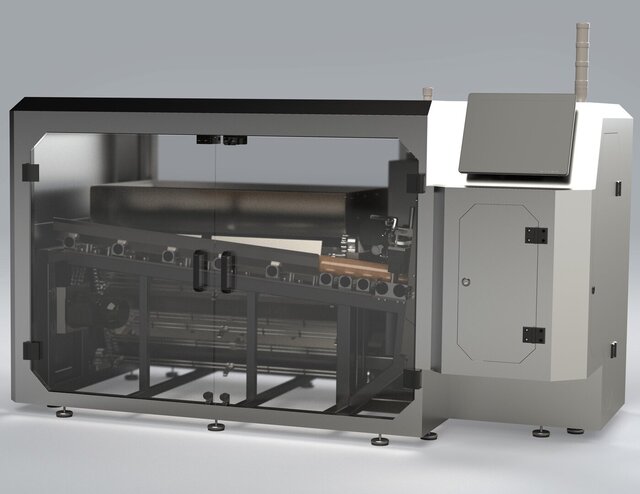

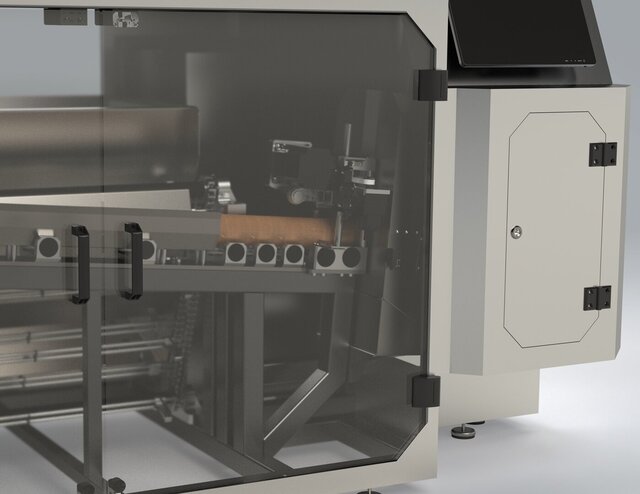

The machine is designed for precise cutting of cylindrical logs up to 1000 mm in length and 30–65 mm in diameter. It operates fully automatically. Based on the target length entered via the touchscreen, the system automatically adjusts its parameters and performs the cutting process. Integrated sensors ensure high-accuracy cuts at the specified dimensions.

Files (19)

License: CC - Attribution Learn more
Published
in Machine Design
design machine mechanical
Rendering Images STEP/STP 3D Modeling 3D PDF Files
