Steel Shop Drawings: Louvers & Ship Ladder

Report

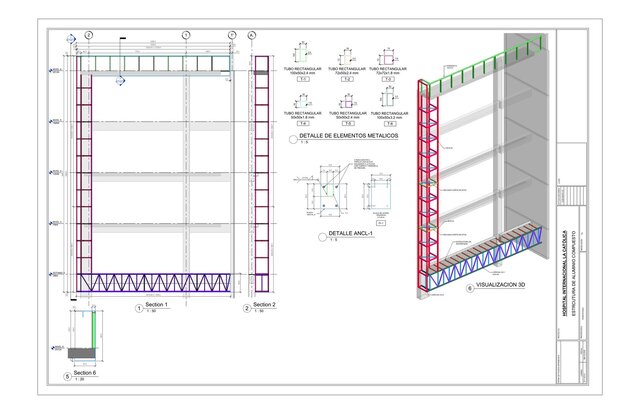

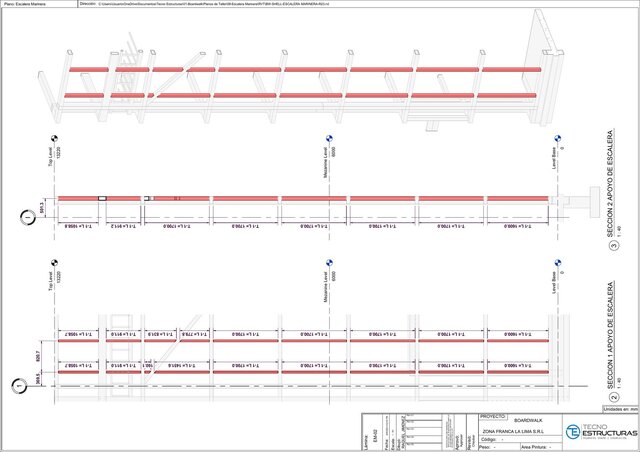

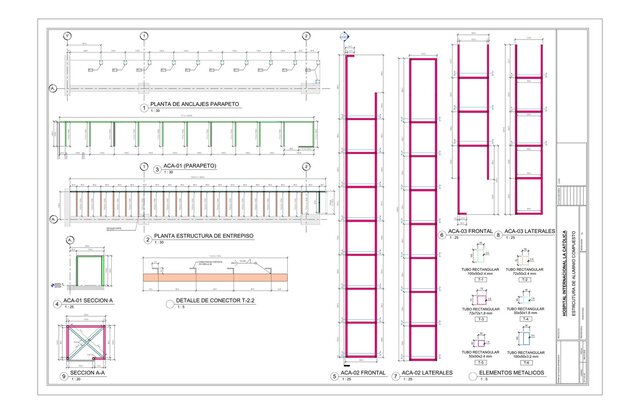

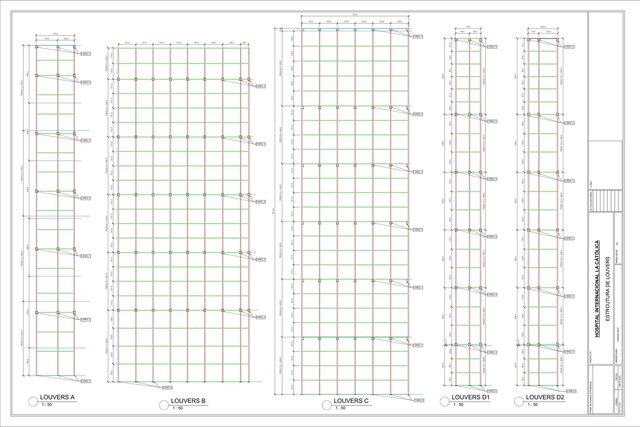

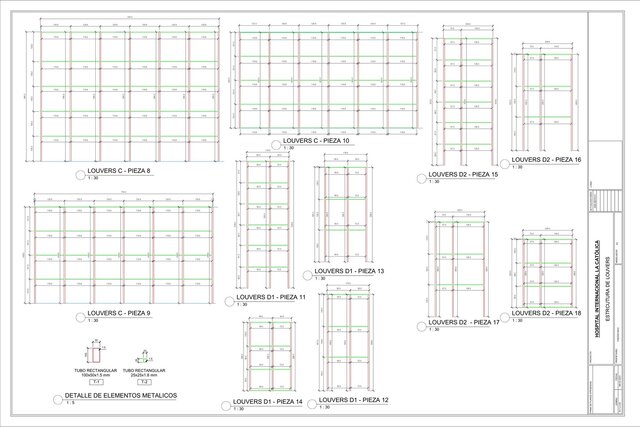

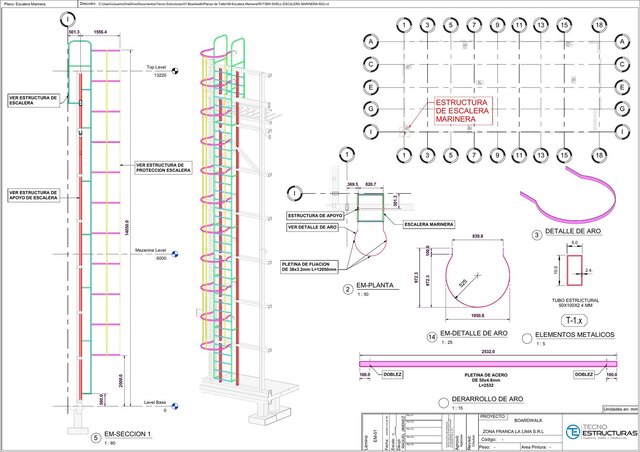

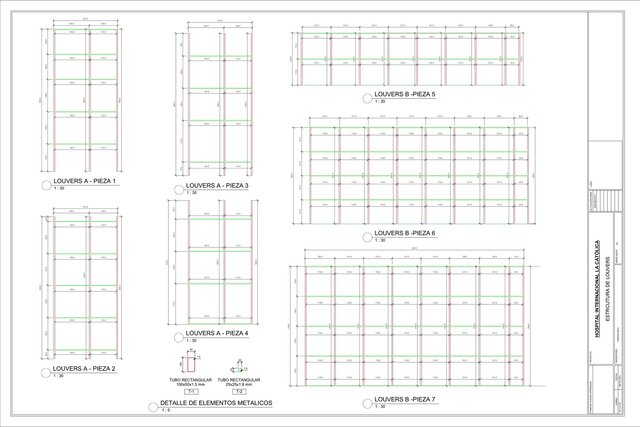

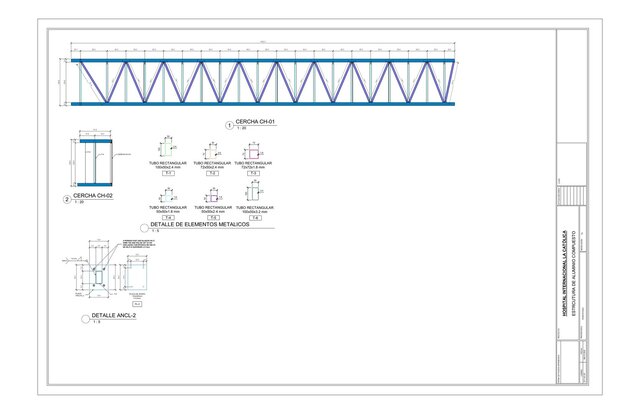

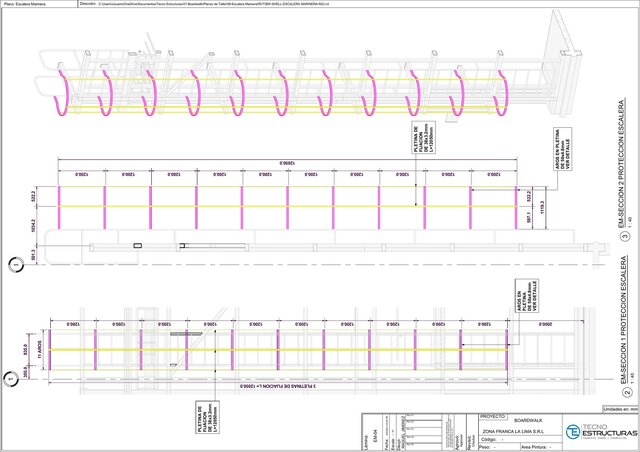

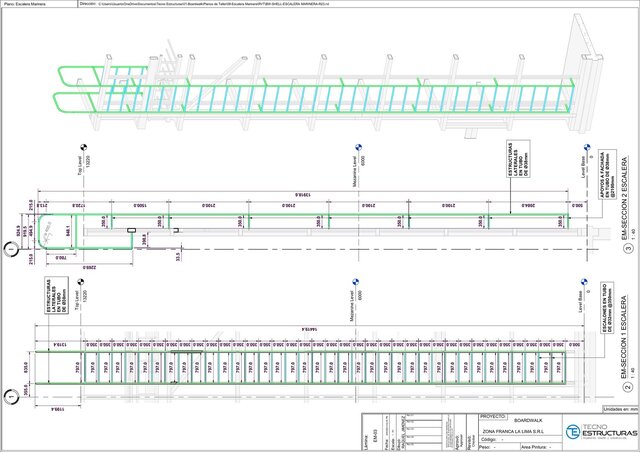

Steel fabrication shop drawings produced through Punto Design CR for metal fabricators. - Architectural louvers (2025): shop drawing package developed in AutoCAD, plus a Revit version of the same package, with plans, elevations and details for fabrication and installation. - Ship ladder: fabrication drawings and details. Drawings prepared from the client's design and engineering for fabrication and as-built records.
Published
in Fabrication Drawings Services Structural Steel Detailing Shop Drawing Services
autocad revit shop-drawings steel-detailing fabrication-drawings louvers
