Steel Canopy for Container Operations

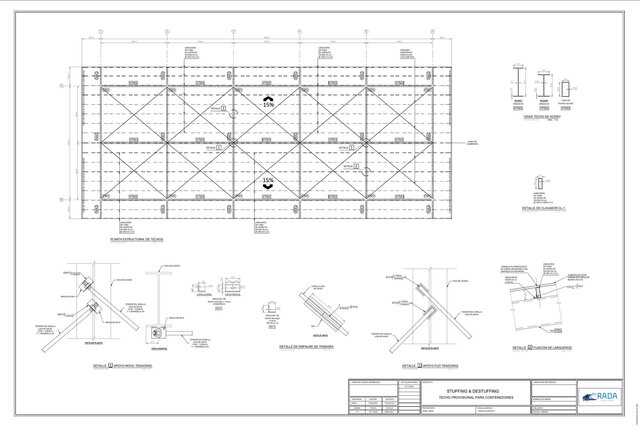

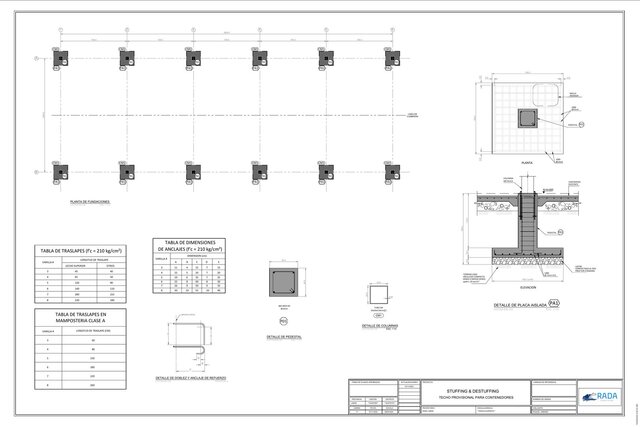

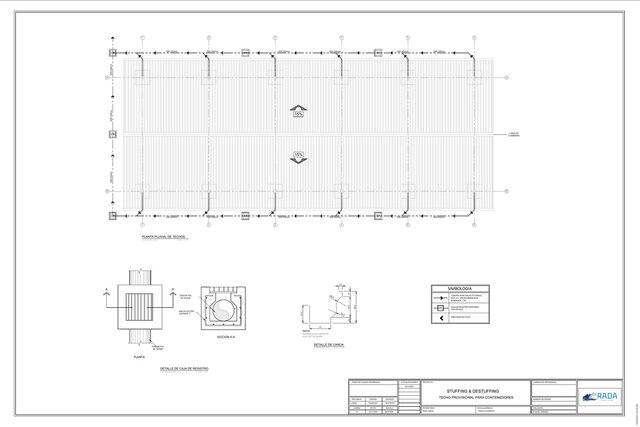

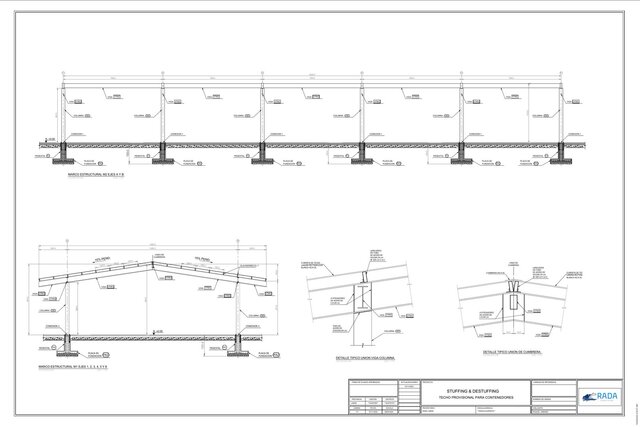

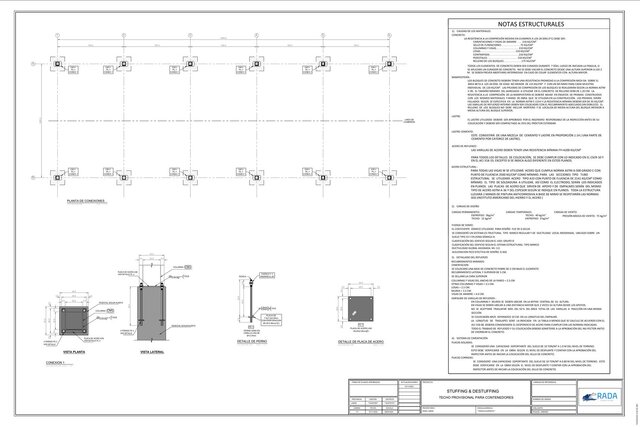

Construction drawings for a temporary steel-framed roof canopy covering container stuffing and destuffing operations at a logistics facility in Limon, Costa Rica, drafted in AutoCAD through Punto Design CR (2022). The set includes roof plans, sections and details for the steel structure (columns, beams and purlins) with metal roofing. Engineering design and stamping by the client's licensed professionals.
