Sliding Stop Assembly
Sliding Stop Assembly | Mechanical CAD Design
A mechanical CAD project focused on creating a sliding stop mechanism using Autodesk Fusion.

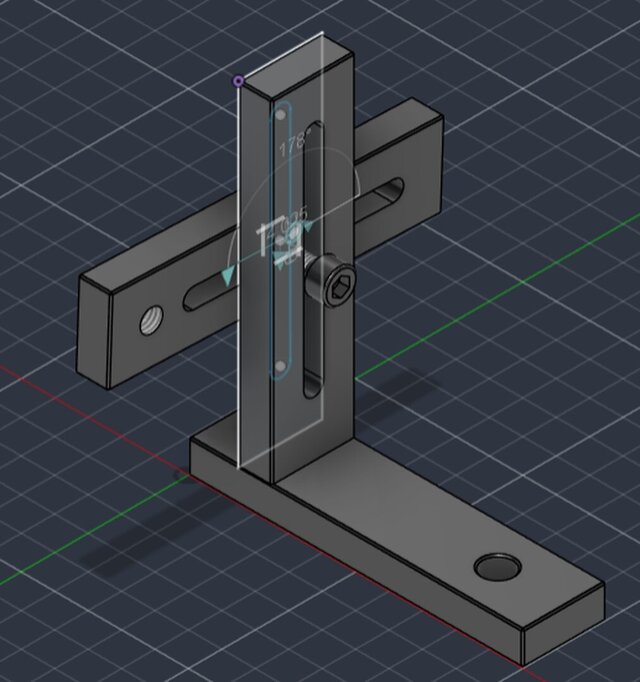

Individual components were modelled and combined into a complete assembly to demonstrate their positioning and relationship within the mechanism.

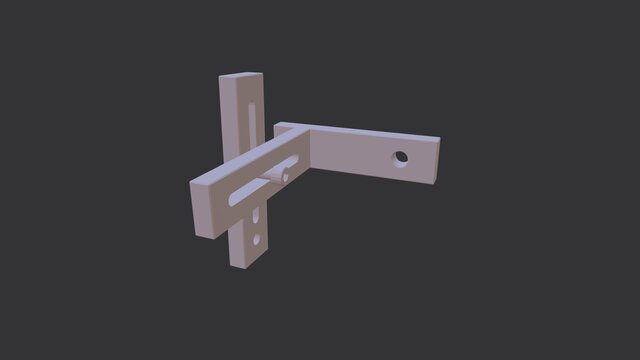

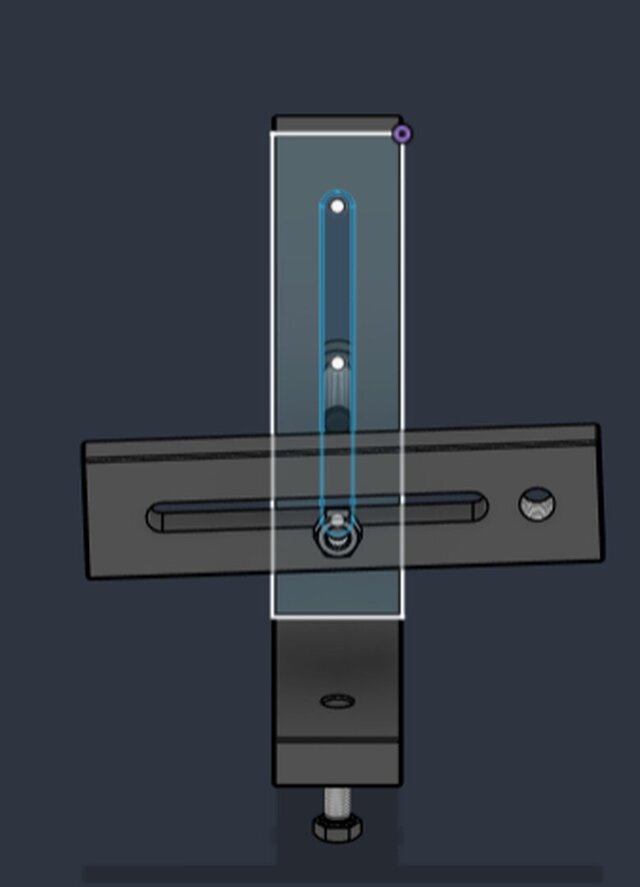

The project includes an assembled 3D model, exploded assembly view and supporting engineering drawings.
Published
