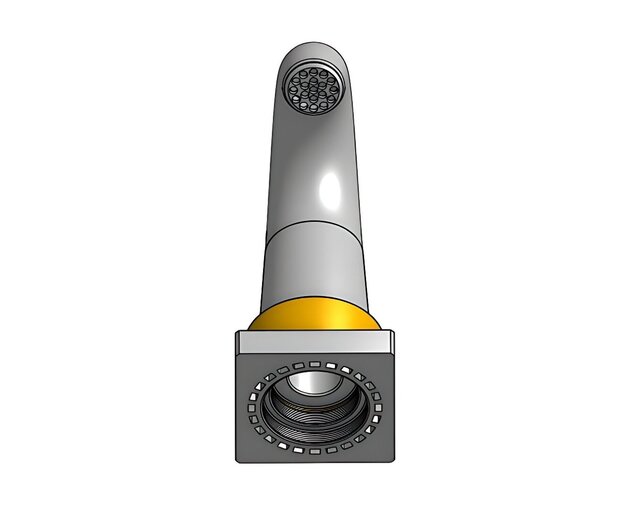

Single-Lever Monobloc Faucet, Bathroom Fixture Set
๐ ๐ผ๐ป๐ผ๐ฏ๐น๐ผ๐ฐ ๐๐ฎ๐๐ฐ๐ฒ๐ โ ๐ฃ๐ฎ๐ฟ๐ฎ๐บ๐ฒ๐๐ฟ๐ถ๐ฐ ๐๐๐ ๐ ๐ผ๐ฑ๐ฒ๐น
A fully parametric monobloc faucet, modeled in Onshape from concept through production-ready CAD.
๐๐ฒ๐๐ถ๐ด๐ป & ๐ ๐ผ๐ฑ๐ฒ๐น๐ถ๐ป๐ด
Hybrid revolve and boolean union approach for the necked, waisted spout profile
Clean sketch constraints throughout for full design intent and editability
Complete assembly with material and appearance assignments
๐๐ฒ๐น๐ถ๐๐ฒ๐ฟ๐ฎ๐ฏ๐น๐ฒ๐
STEP, STL, OBJ files
Technical drawings
Rendered visuals
Designed as part of a matching bathroom fixture set โ demonstrating end-to-end product design from surfacing and geometry to manufacturing-ready documentation.
