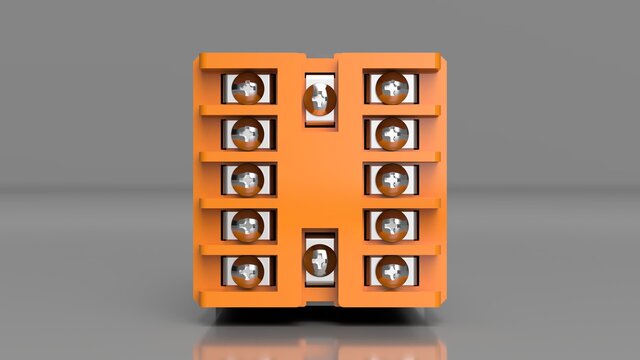

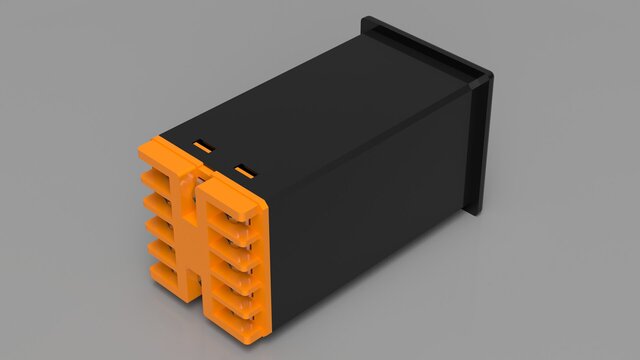

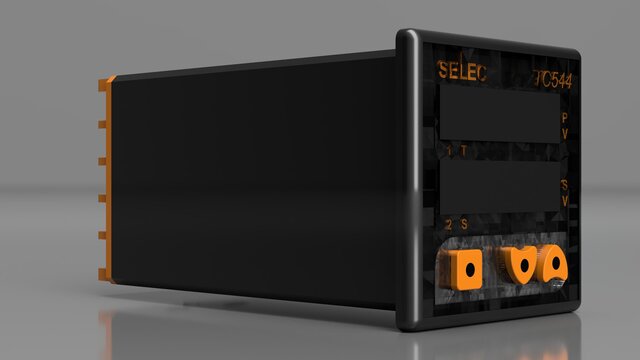

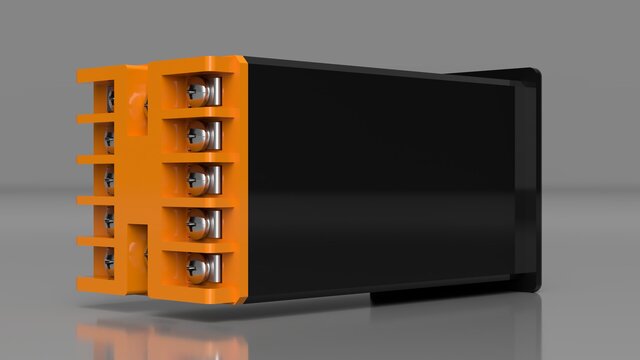

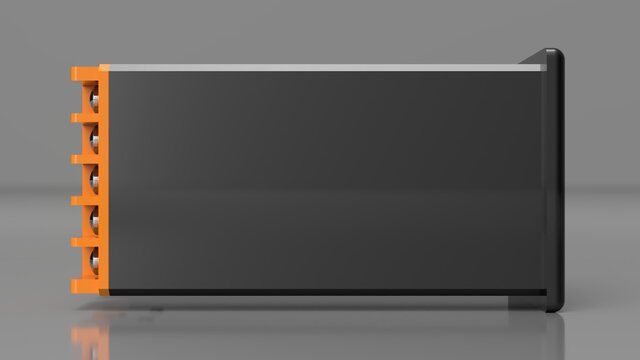

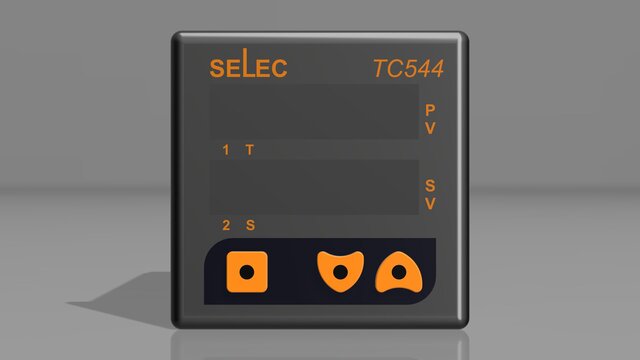

SELEC TC544A Temperature Controller – Reverse Engineered CAD Model

Exact 1:1 Dimensions This CAD model was recreated using manufacturer specifications and reference measurements to ensure accurate geometry for panel integration and industrial assembly layouts. Note: This is designed for engineering reference, virtual assembly, simulation, design integration, and manufacturing documentation. Key Features: Overall Dimensions (L × B × H) 94 mm × 52 mm × 52 mm Optimised CAD Geometry Clean parametric modelling with an organised feature structure, allowing easy edits and efficient performance in large assemblies. Application Ready Suitable for control panel design, industrial equipment assemblies, product prototyping, and manufacturing documentation.
