Sample: Electrical Installation Details Sheet (A3)

Report

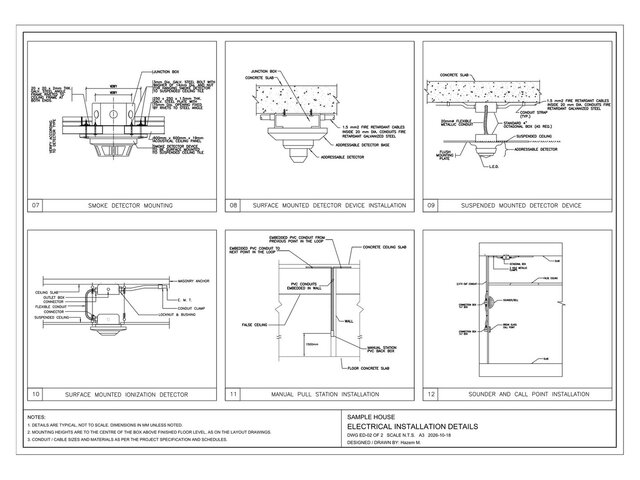

Portfolio sample, not a client job. Standard installation details picked for a house layout: socket outlets, back-to-back boxes, switches, surface and recessed luminaires, recessed distribution board, and fire alarm devices (detectors, pull station, sounder). Mounting heights match the layout drawings. A3 sheets, DWG + PDF.
Published
in Construction Drawings MEP Drafting Services Electrical 2D Drafting Services
autocad installation-details electrical-details
