Reverse-Flush Ceramic Filter System

Report

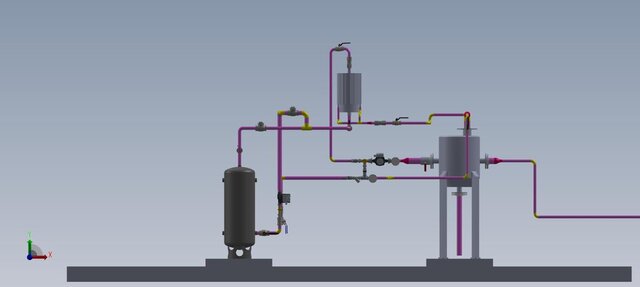

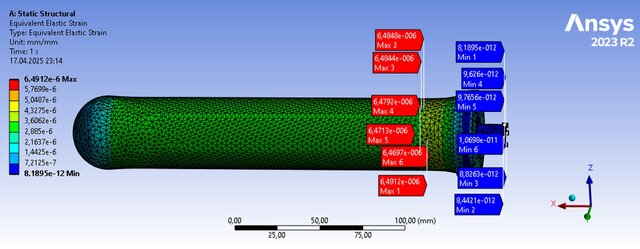

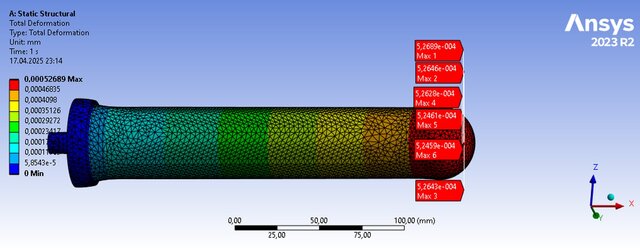

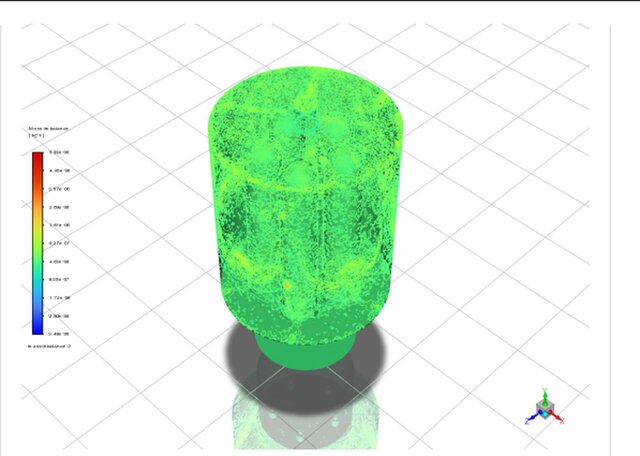

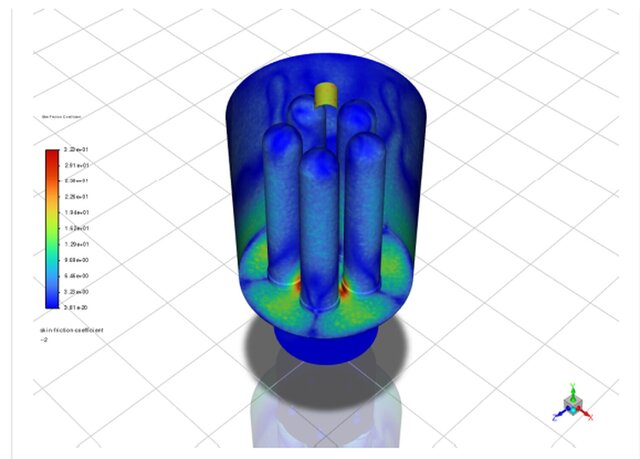

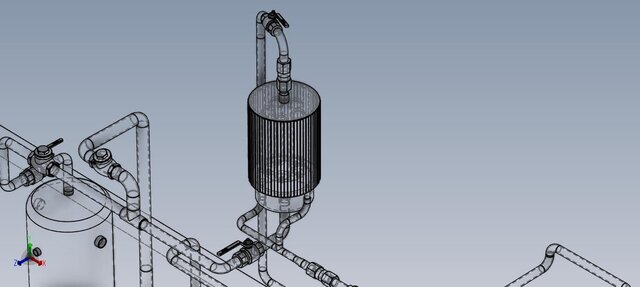

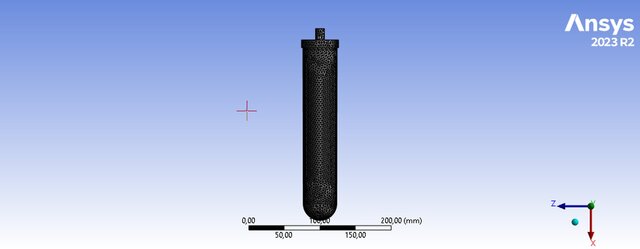

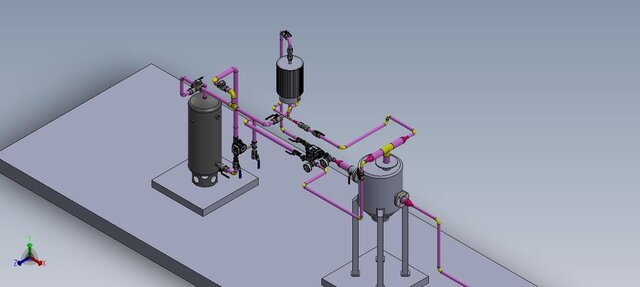

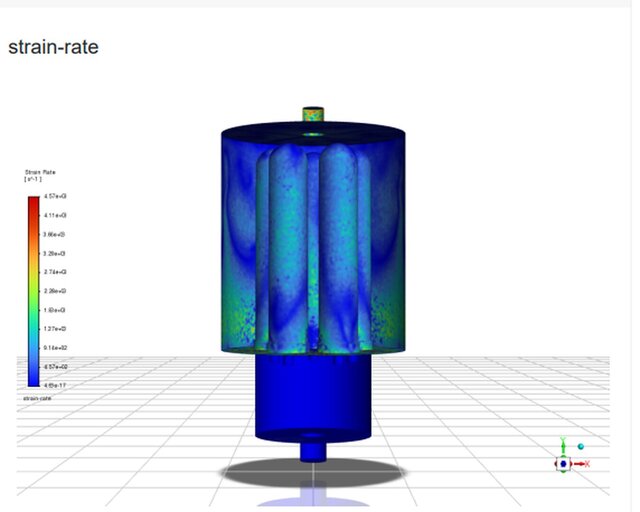

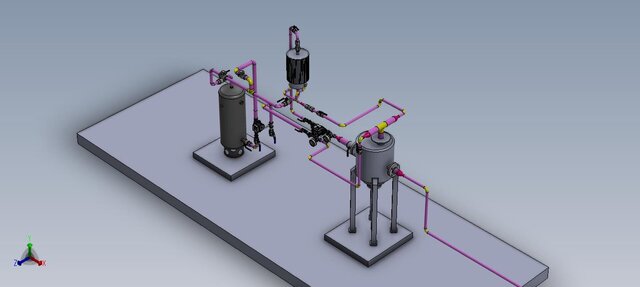

I designed a high-efficiency reverse-flush ceramic filter system tailored for EDM machines, aiming to extend filter life and minimize maintenance intervals. The system uses micro-porous ceramic elements and supports manual backwash, achieving filtration down to 2–3 microns. The design was validated through detailed CFD simulations in ANSYS Fluent to ensure flow performance and particle capture efficiency.
Published
in Mechanical Engineering SolidWorks Engineering Services Mechanical CAD Design
ansys fluid-flow-analysis ansys-fluent mechancial-design filtering-system solidworks-2025
Rendering Images 3D PDF Files
