Residential Architectural Drawing Set | AutoCAD 2D

Report

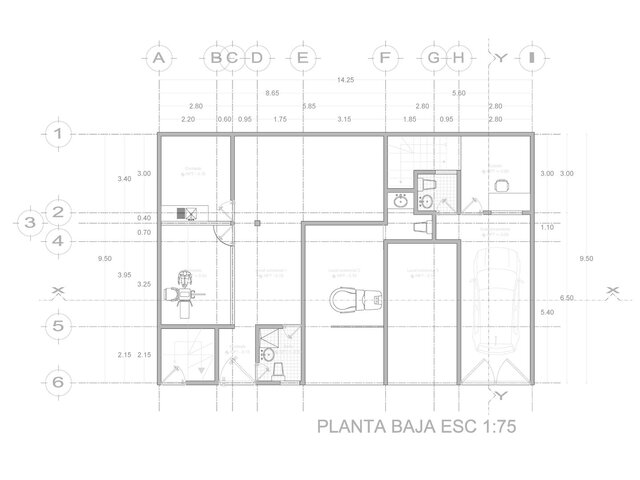

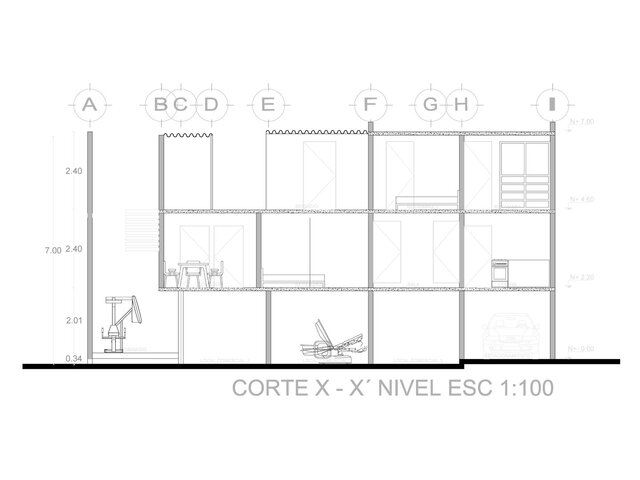

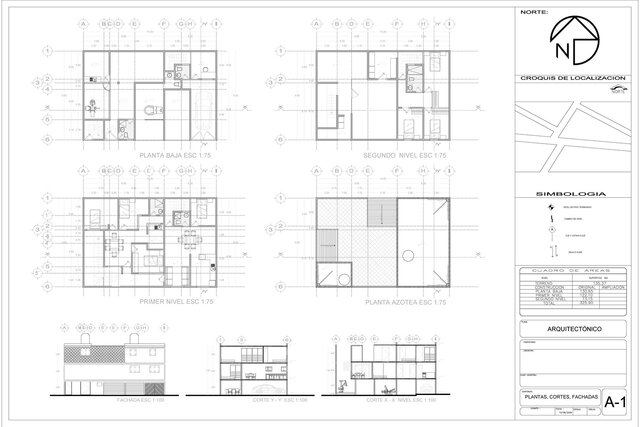

Complete 2D architectural documentation for a residential project developed in AutoCAD. The drawing set includes dimensioned floor plans, elevations, building sections, levels, annotations, architectural details, and organized technical documentation. The project demonstrates my workflow for converting architectural information and site measurements into accurate, clean, and professionally presented CAD drawings. Services available for similar projects include architectural drafting, as-built drawings, PDF or sketch to DWG conversion, floor plans, elevations, sections, drawing revisions, and construction documentation.
Published
in Construction Drawings 2D CAD Drafting Services Architectural Drafting Services
autocad cad-drafting elevation floor-plan 2d-drafting residential-architecture construction-drawings dwg as-built-drawings architectural-drawing architectural-documentation building-section
