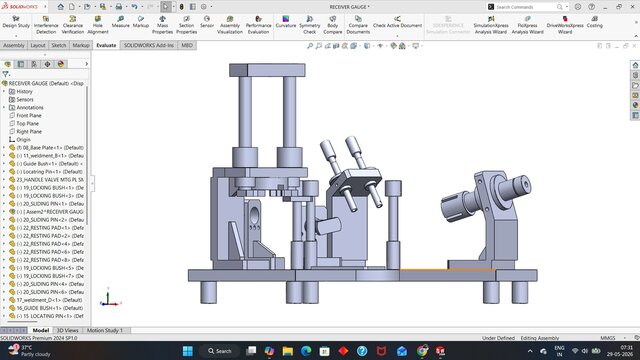

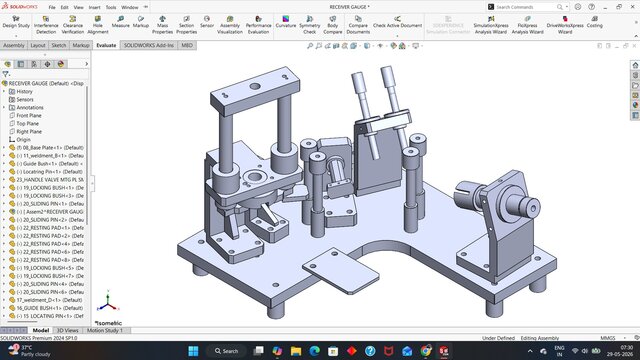

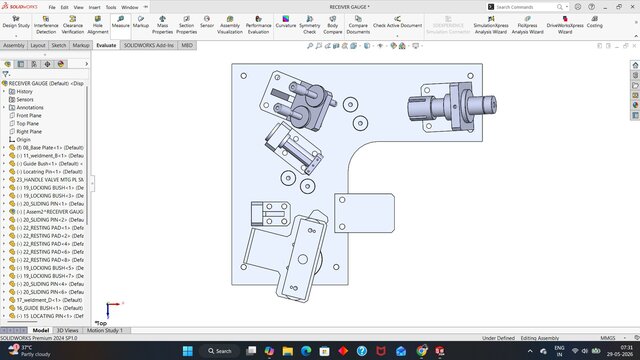

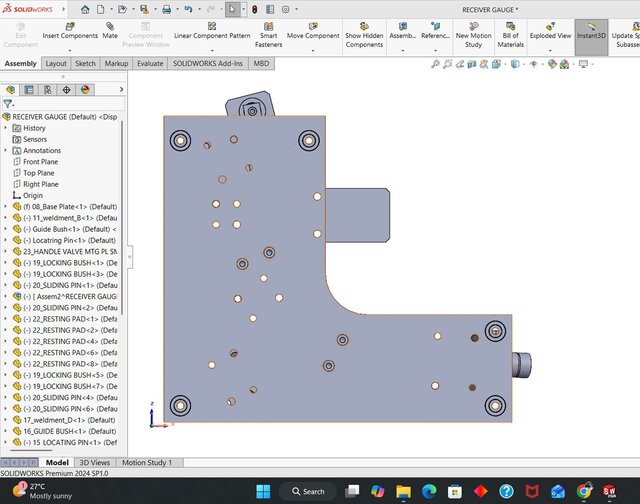

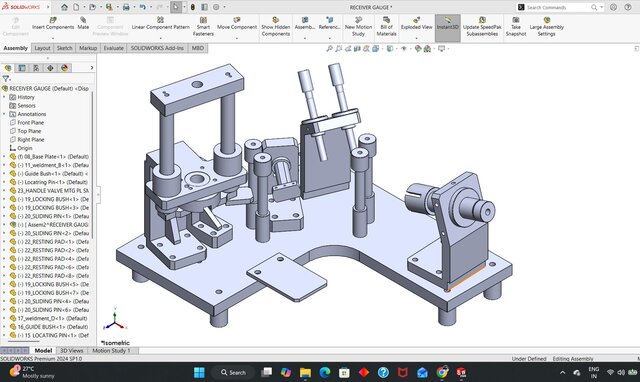

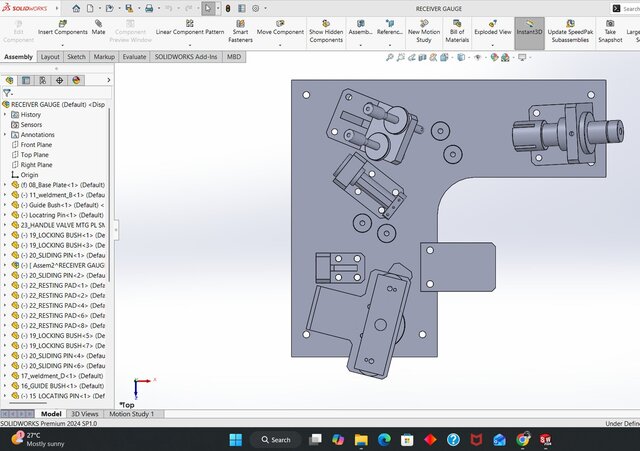

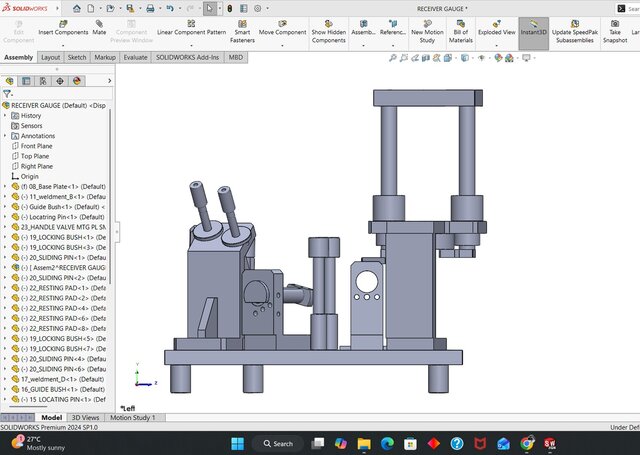

RECEIVER GAUGE

Key Points about Receiver Gauges Purpose: Used to check the internal dimensions (like holes, slots, or cavities) of a part. Function: Confirms that the part can correctly receive or accommodate its mating component without excessive clearance or interference. Design: Typically made as a hardened steel tool with precise geometry, often cylindrical or shaped to match the mating feature. Types: Go Gauge → Ensures the minimum material condition (the part can accept the mating piece). No-Go Gauge → Ensures the maximum material condition (the part is not oversized beyond tolerance). Applications: Widely used in automotive, aerospace, and tooling industries for quality control of shafts, gears, bearings, and other precision assemblies.
