Pump Station MCC Panel with VFD Drives

ognjenc

Report

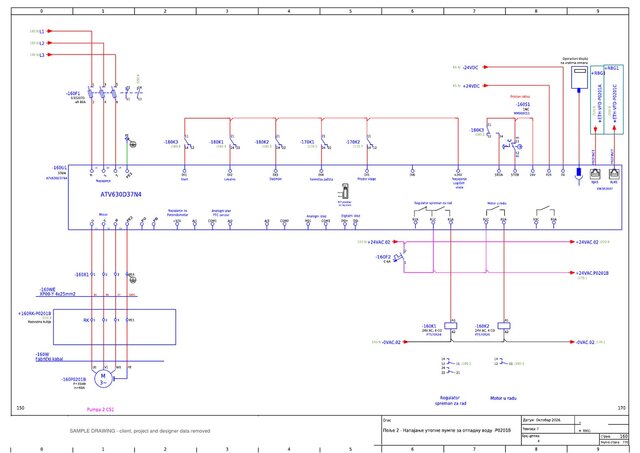

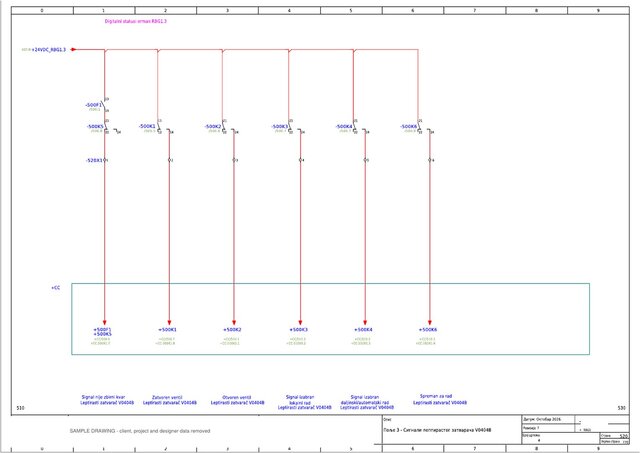

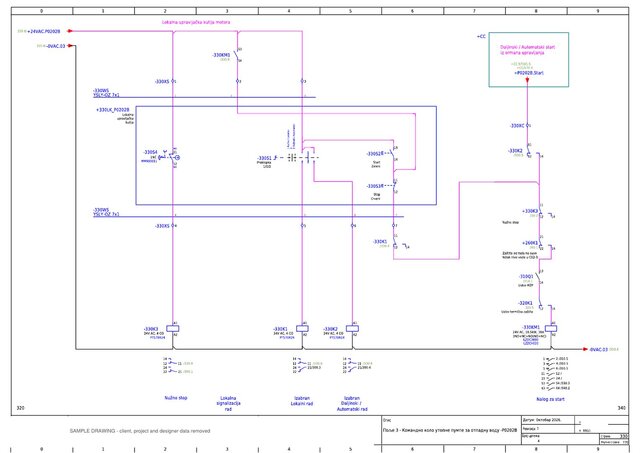

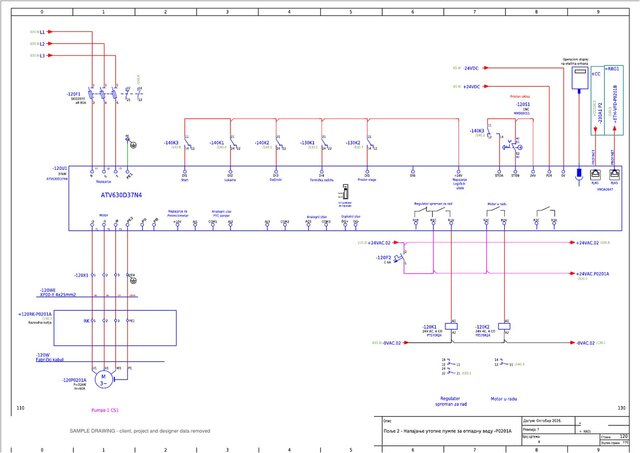

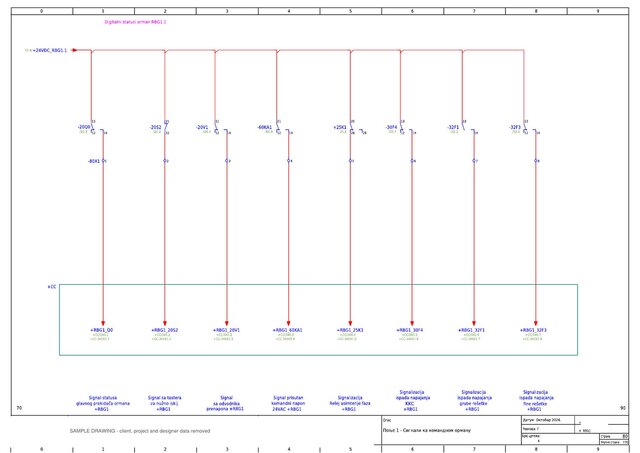

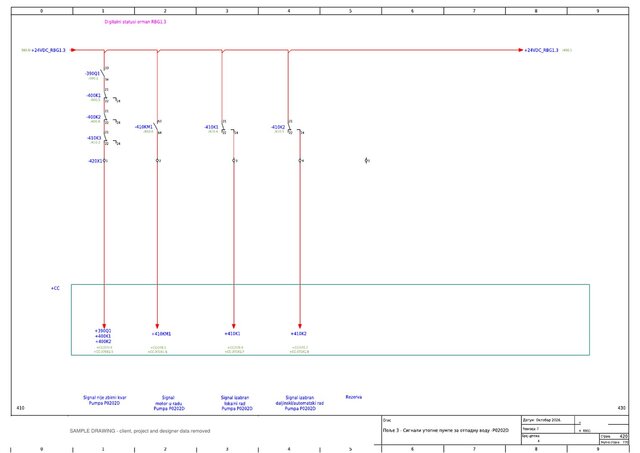

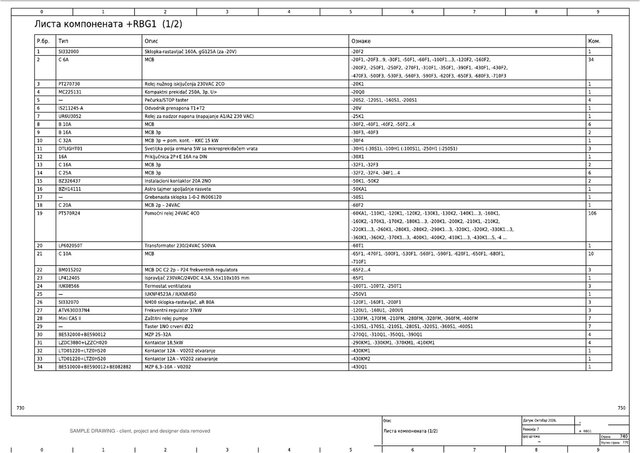

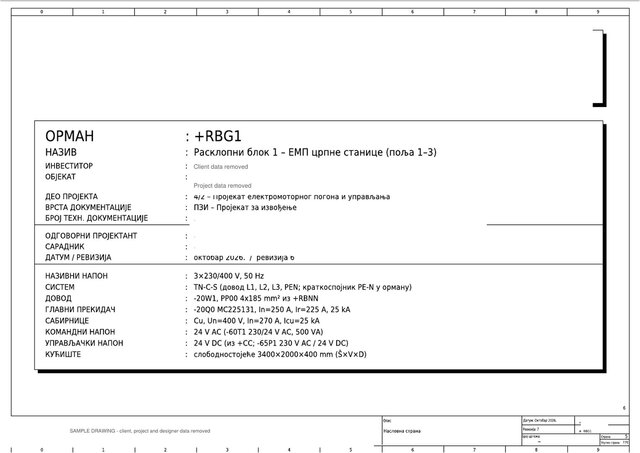

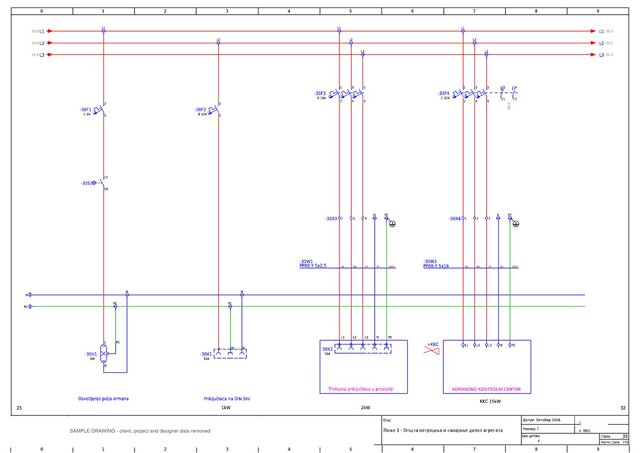

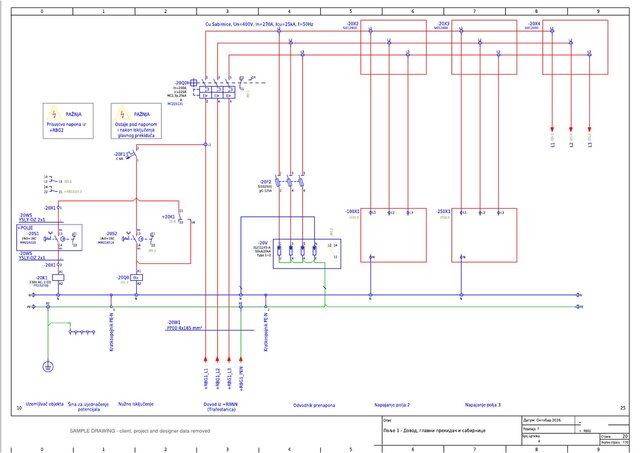

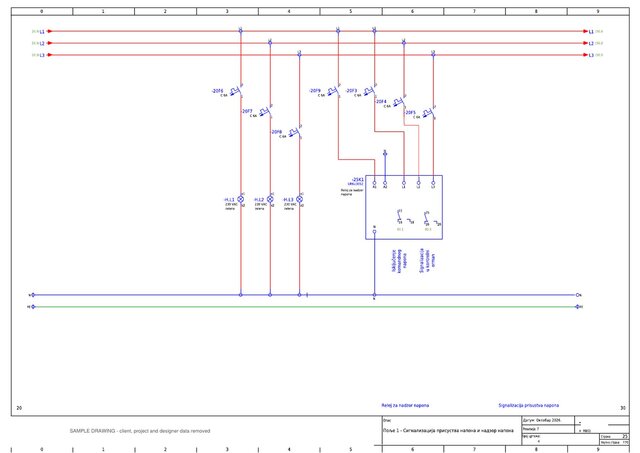

MCC panel for a wastewater pump station with VFD-driven pumps: main incomer, motor feeders, drive wiring, control and signalling circuits, 24 VDC supply, component list and panel layout. 12 sheets shown from an 85-sheet set; client and project data removed.

Published Oct 28, 2026

in Electrical Engineering Electrical Schematic Drawing Services Electrical Circuit Design Services

eplan control-panel-design schematic-diagram motor-control-center vfd-drives

Rendering Images
