Pump Station Control Box

Report

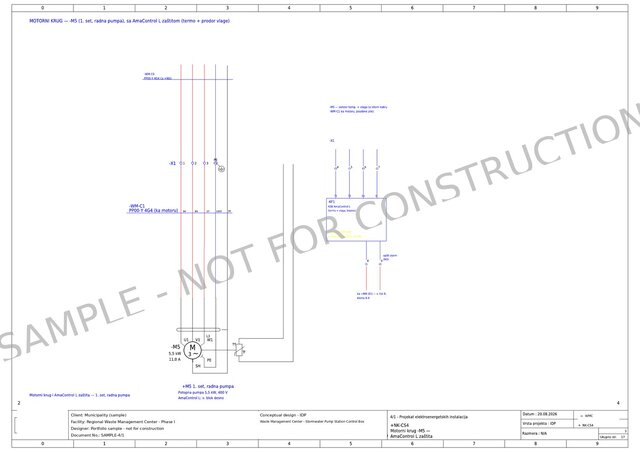

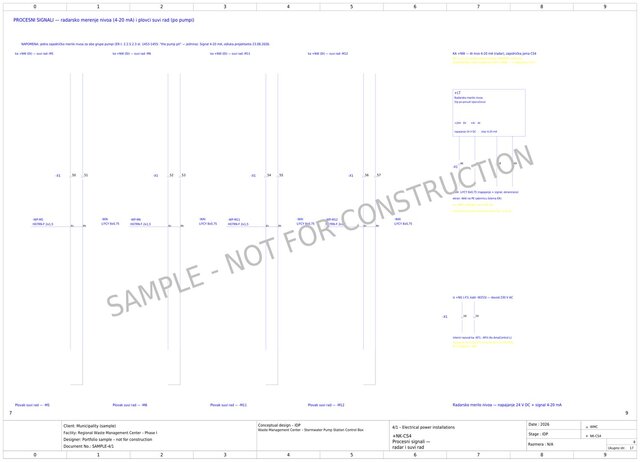

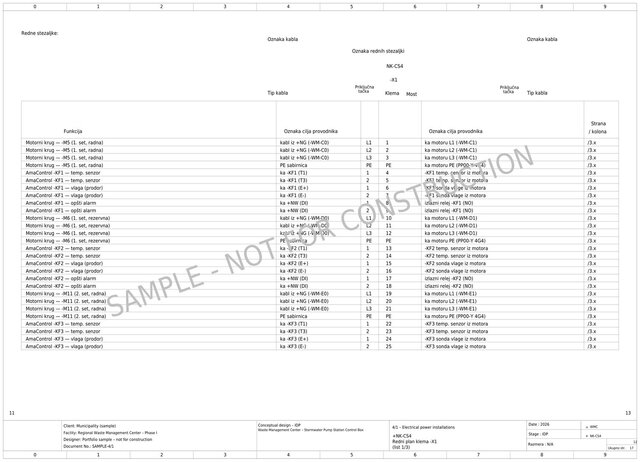

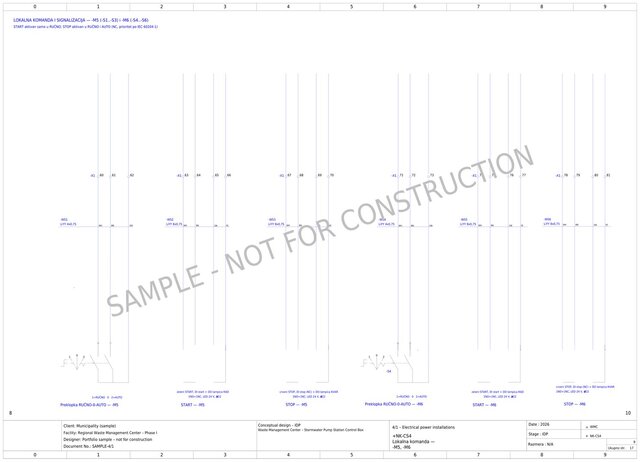

Control box for a stormwater pumping station: submersible pump feeders with thermal and moisture protection, radar level measurement over Modbus RS485, signals to the plant PLC, terminal strip and cable list.
Published
in Electrical Engineering Electrical Schematic Drawing Services Electrical Circuit Design Services
autocad control-panel-design electrical-drawing plc schematic-diagram
