Pressure Washer Water Filter (Gama 130) : Reverse Engineering & Injection Molding Design

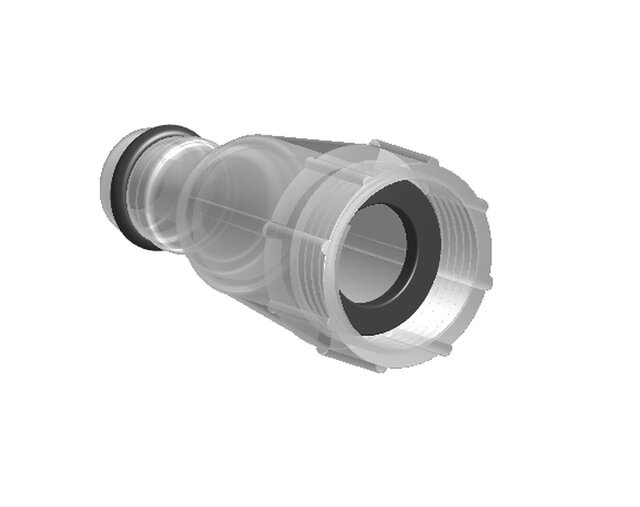

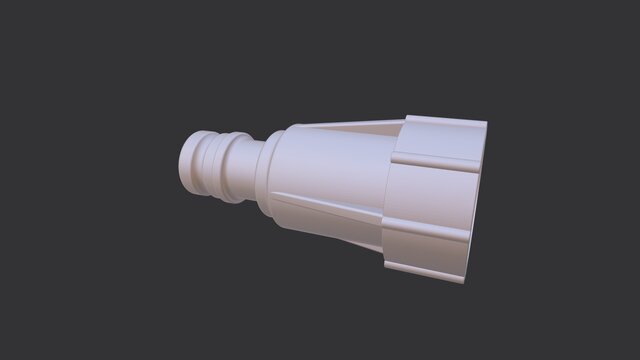

Precise reverse engineering and CAD modeling of a replacement water filter for a Gama 130 pressure washer. Developed from physical measurements of a broken original component to create a fully functional, highly accurate manufacturable part. Key Engineering Features: Sealing Interfaces: Accurate modeling of O-ring grooves and sealing seats to ensure pressure-tight connections without leaks. Thread Precision: Detailed internal and external threading designed for secure assembly. DFM (Design for Manufacturing): Optimized wall thicknesses, uniform transitions, and draft considerations tailored for plastic injection molding or high-end 3D printing. Material Visualization: Modeled to simulate transparent polymer characteristics and functional elastomeric seals.
