Precision mechanical Part | CNC Machining & CAM Design

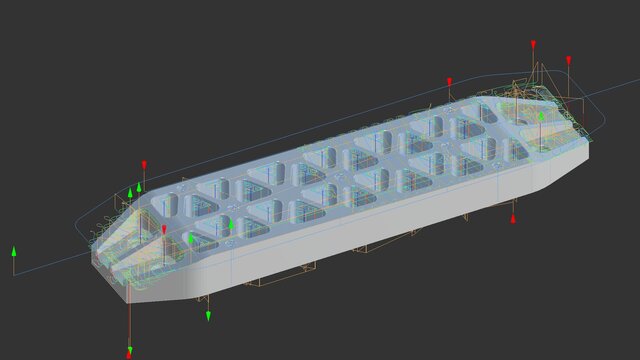

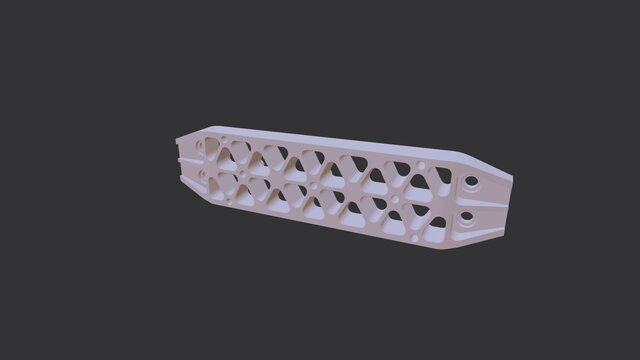

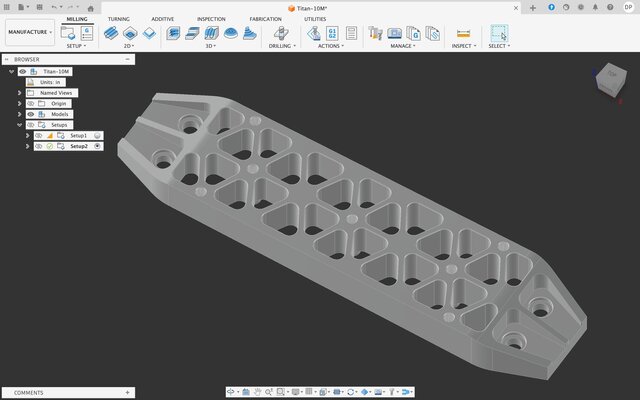

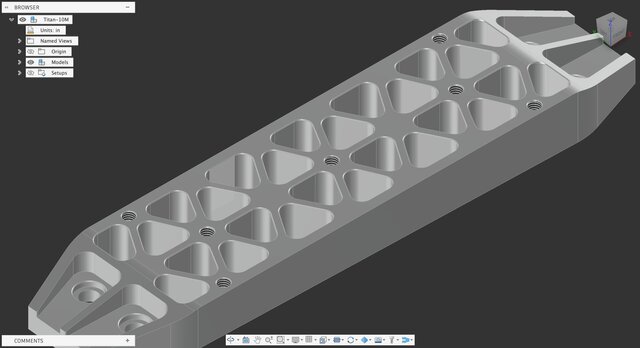

Mechanical Part Optimized for CNC Production This project showcases a high-precision mechanical component designed with a strict focus on manufacturing efficiency and toolpath optimization. Key Technical Aspects: • Design for Manufacturing (DFM): Developed with tolerances and clearances suitable for standard CNC milling processes. • Advanced CAM Setup: Includes comprehensive toolpath generation within Fusion 360, featuring optimized roughing and finishing operations. • Precision Engineering: Focused on dimensional accuracy and clean geometry for high-quality surface finish. Project Scope: • 3D Solid Modeling. • Technical documentation readiness. • CNC-optimized geometry for efficient material removal. Files: STEP (Master Model), STL (Prototyping).
