PLC Control Cabinet - Layouts, Schematics and Field Wiring

ognjenc

Report

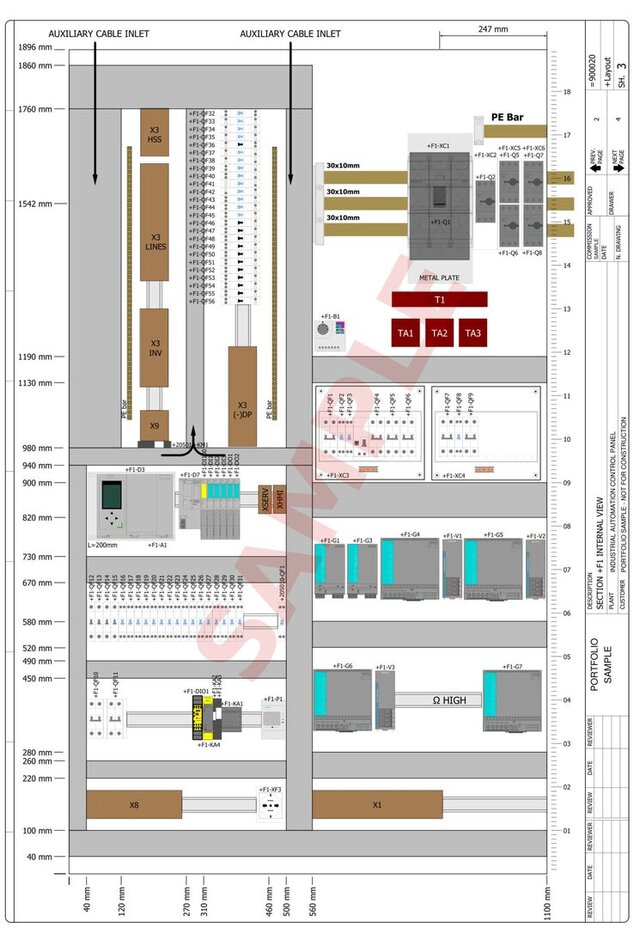

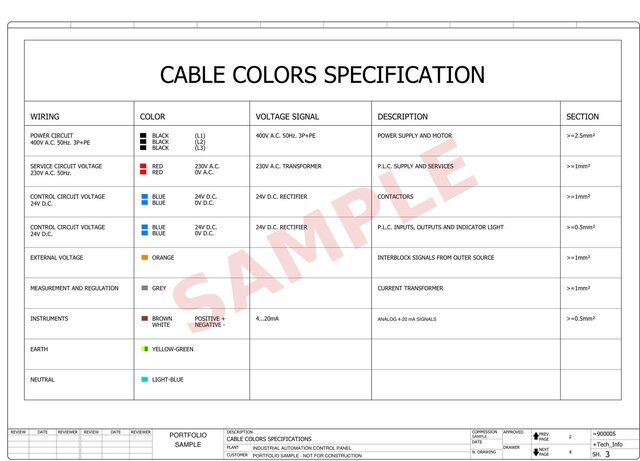

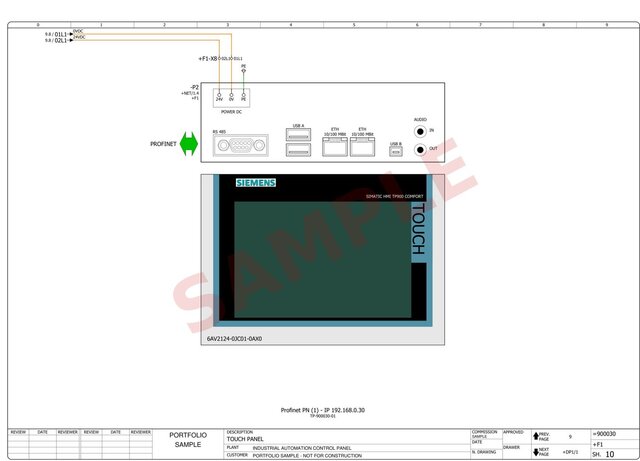

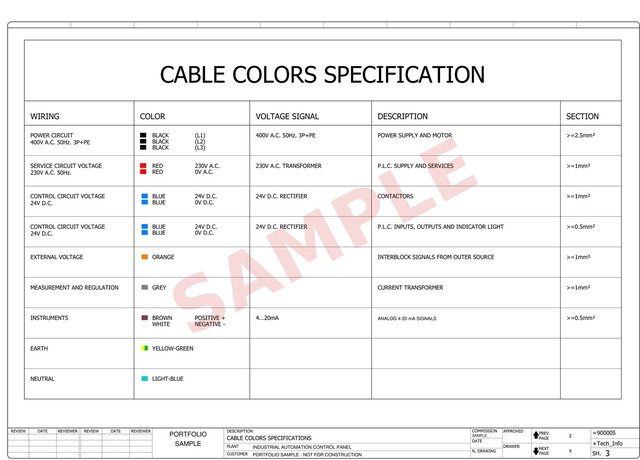

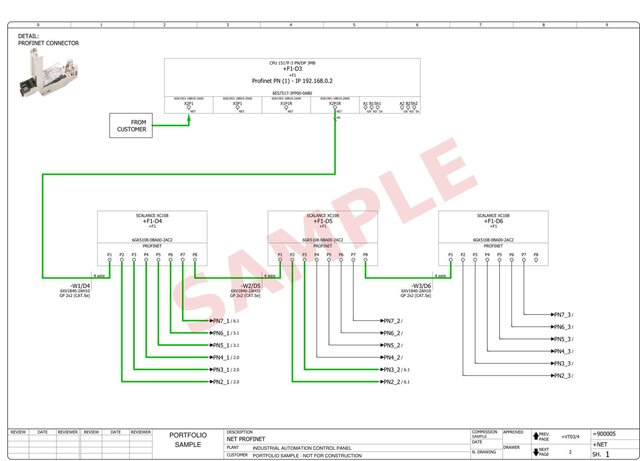

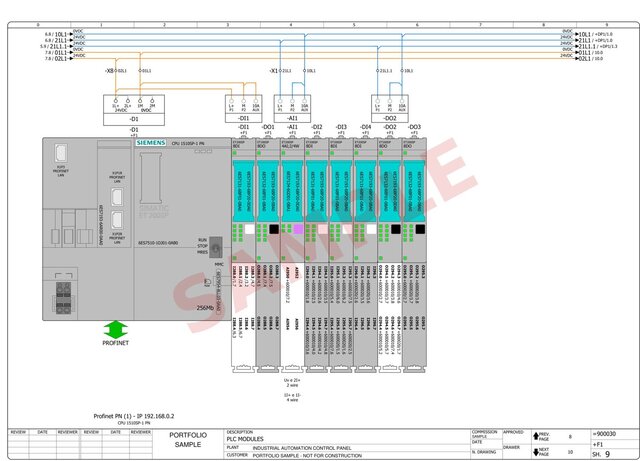

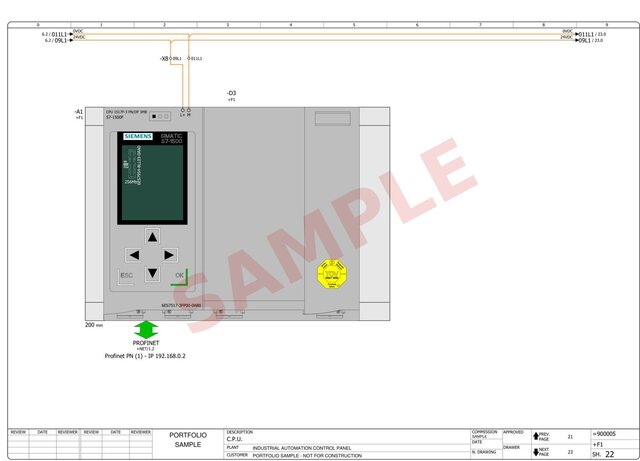

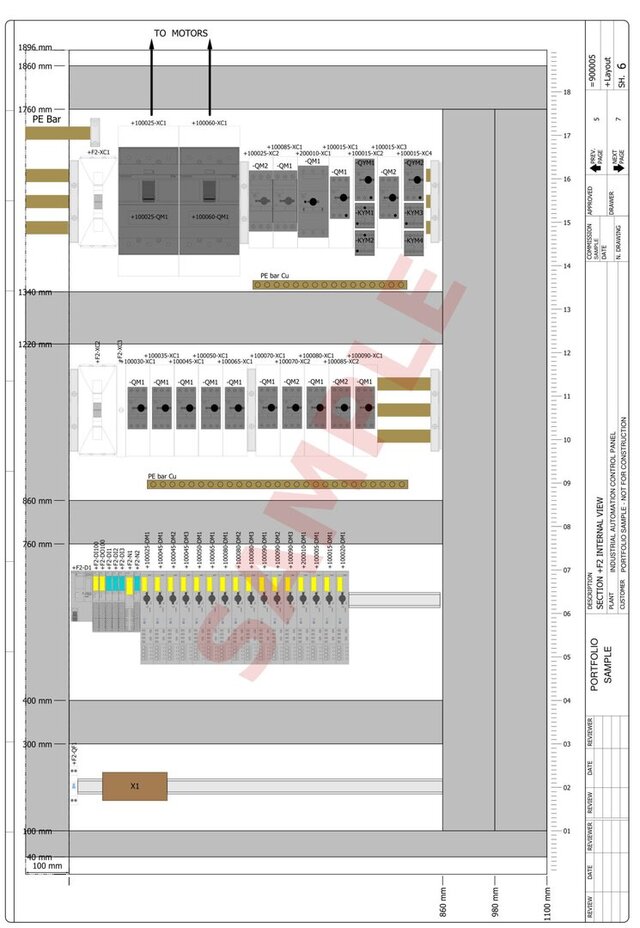

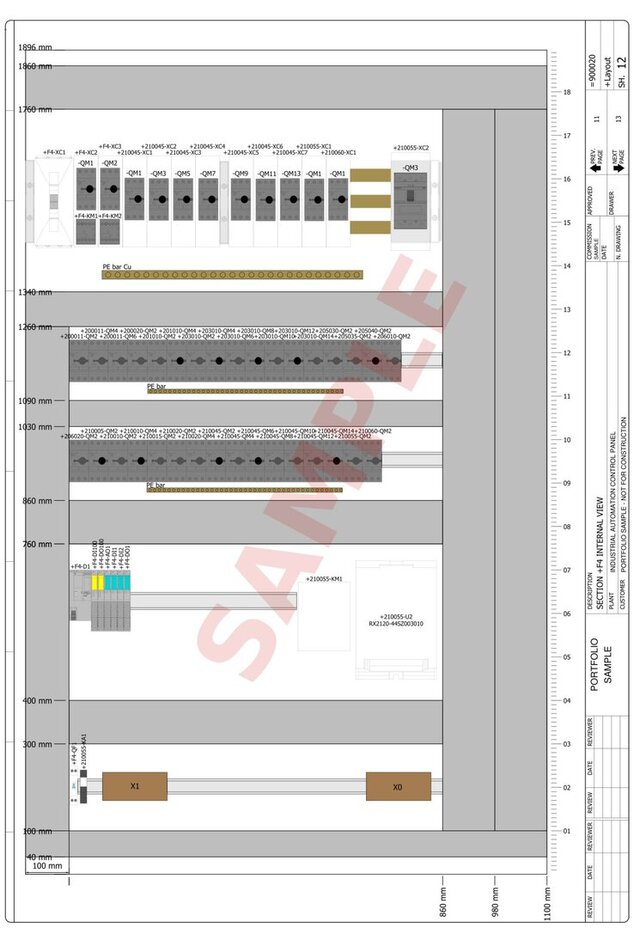

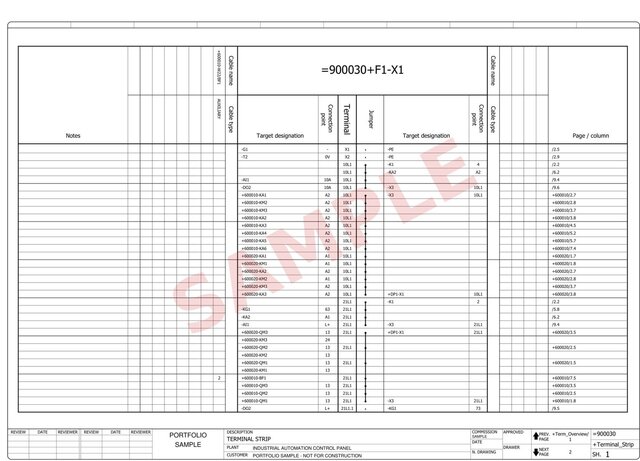

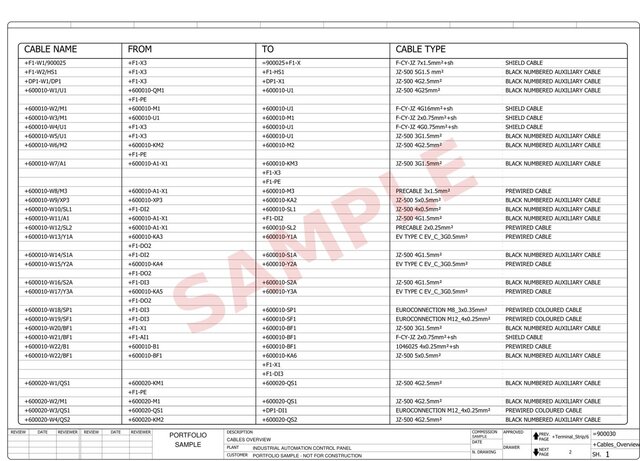

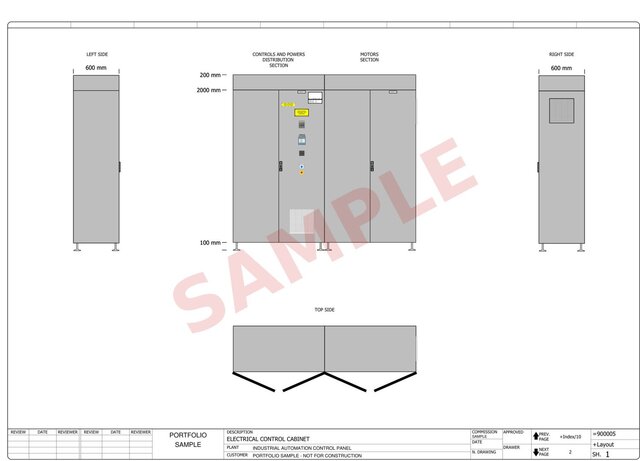

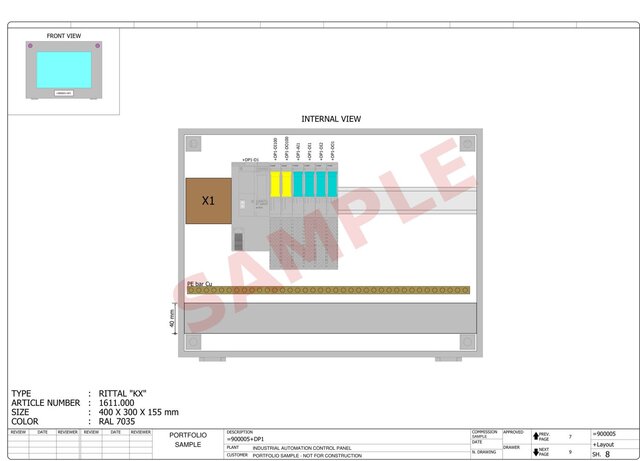

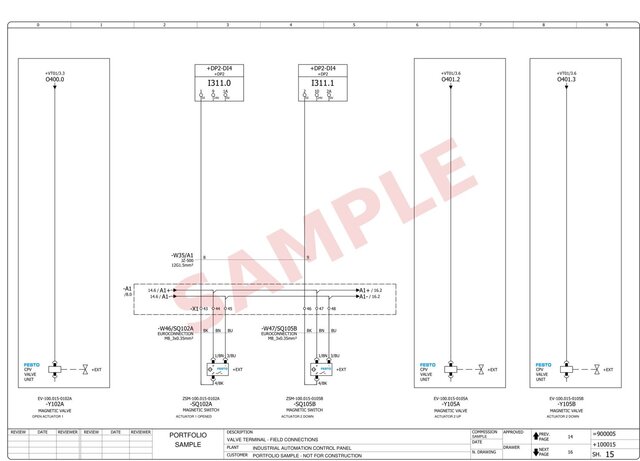

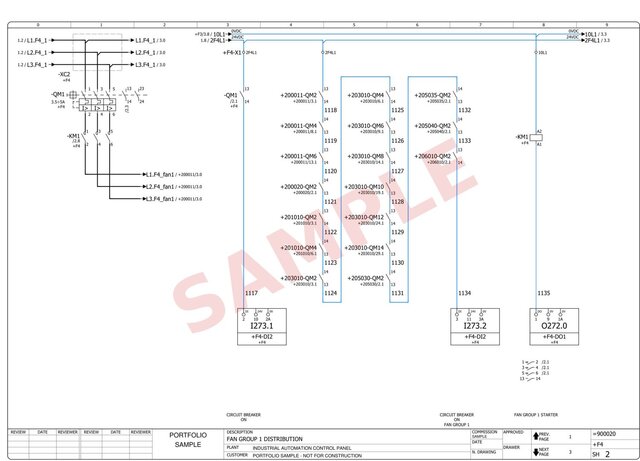

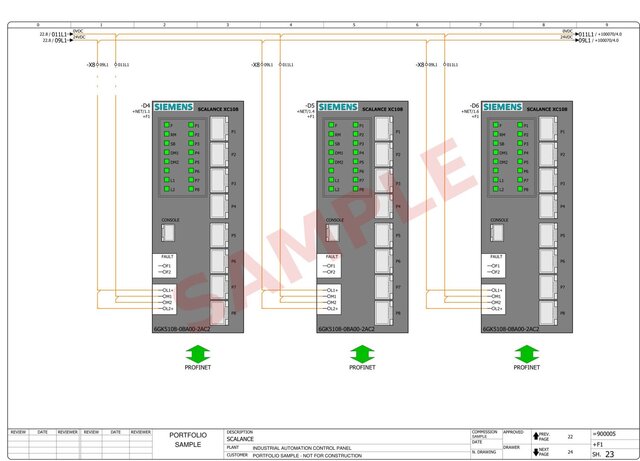

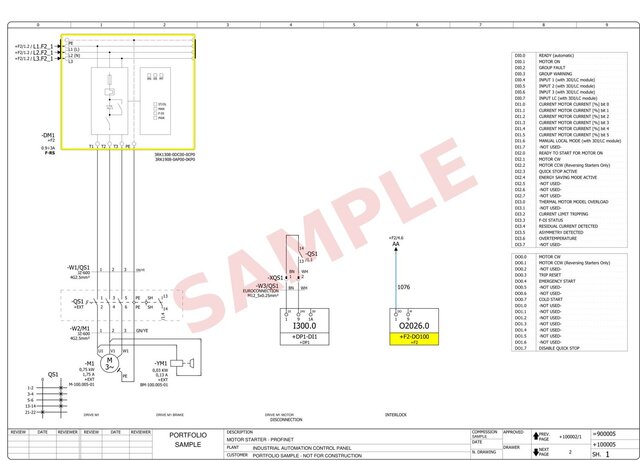

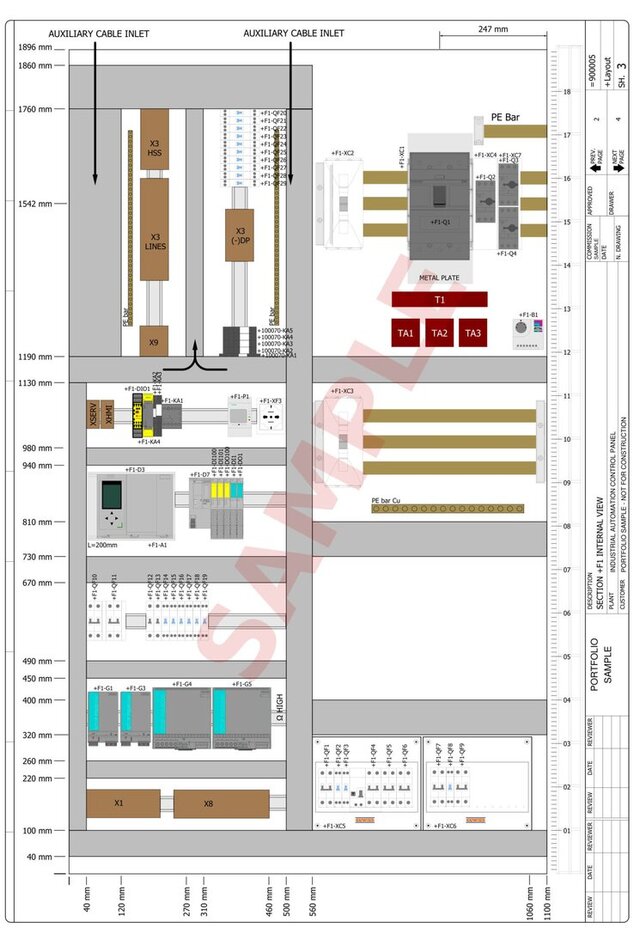

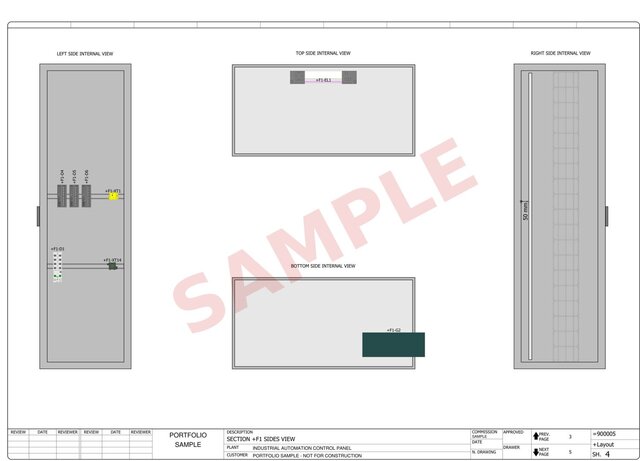

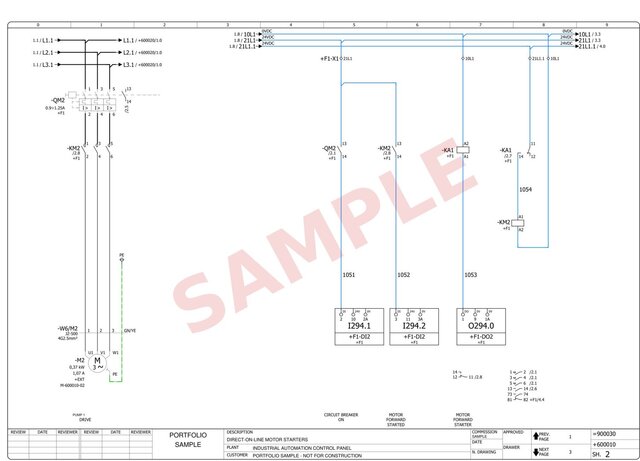

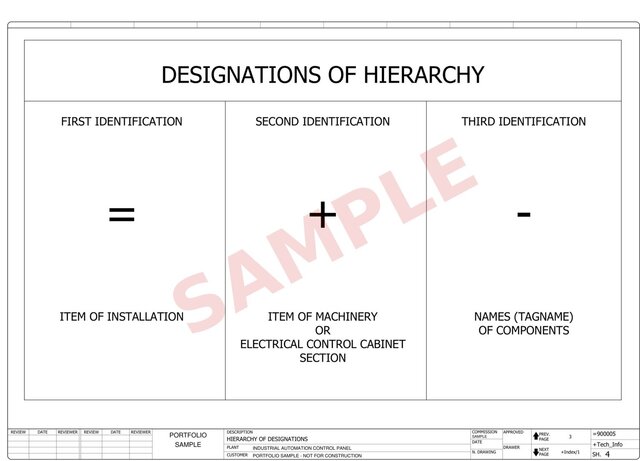

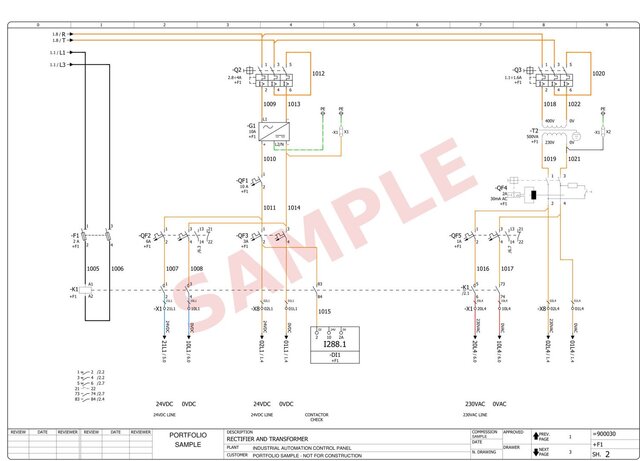

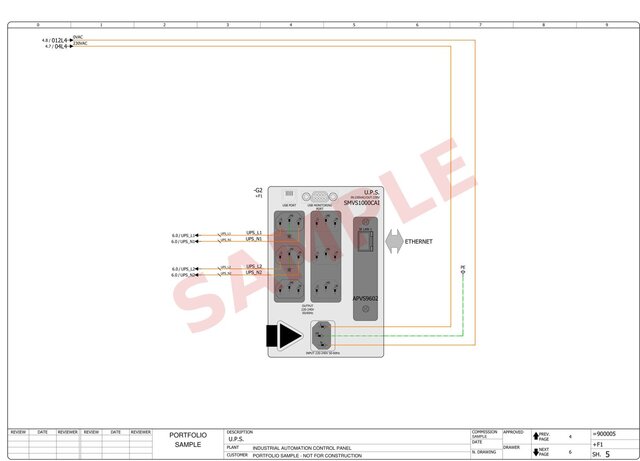

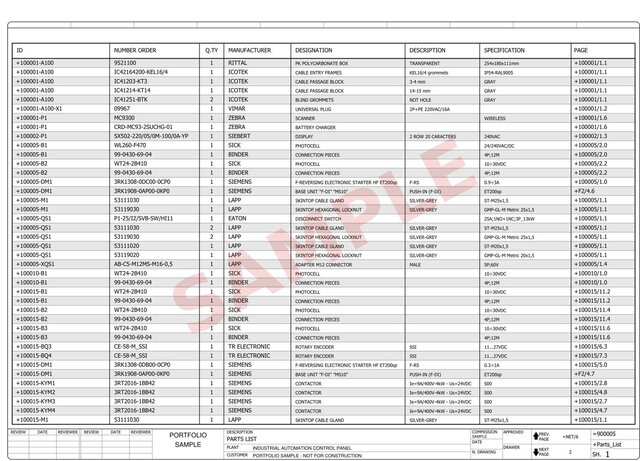

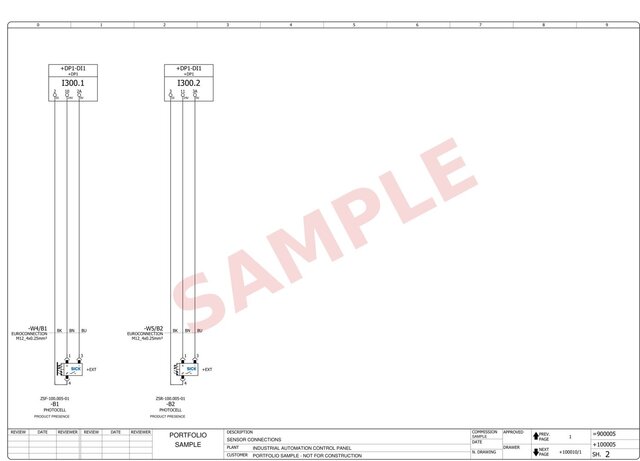

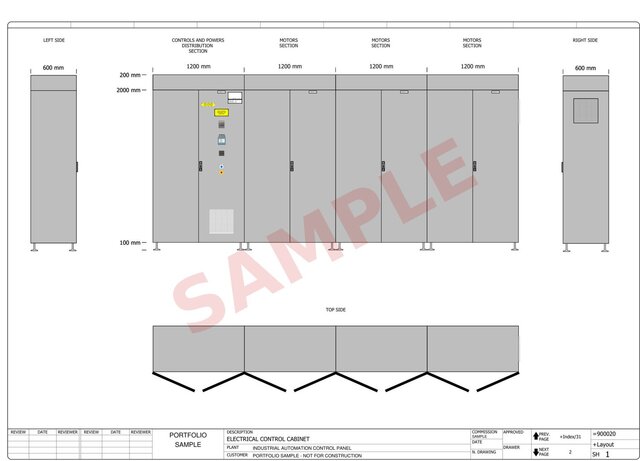

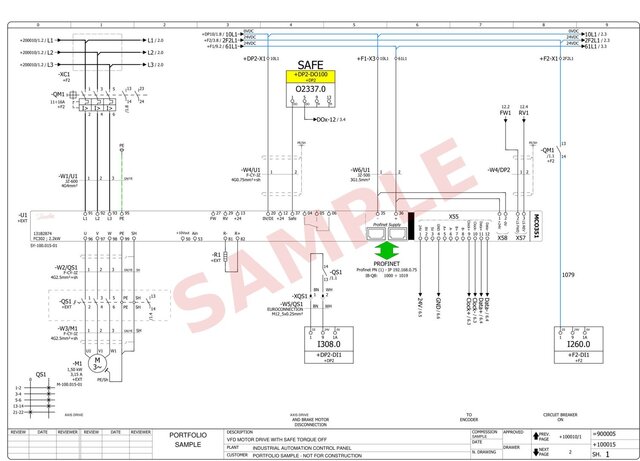

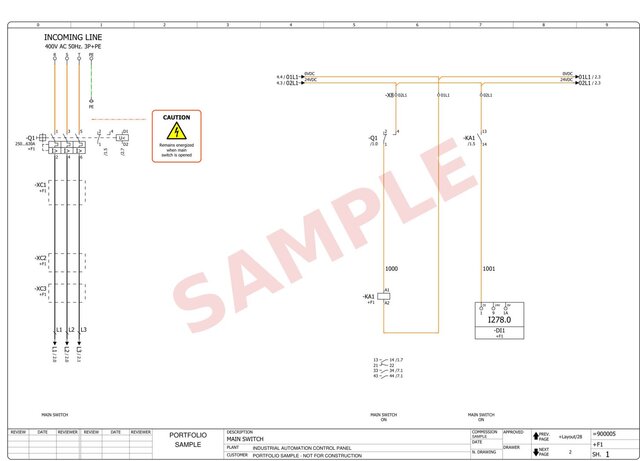

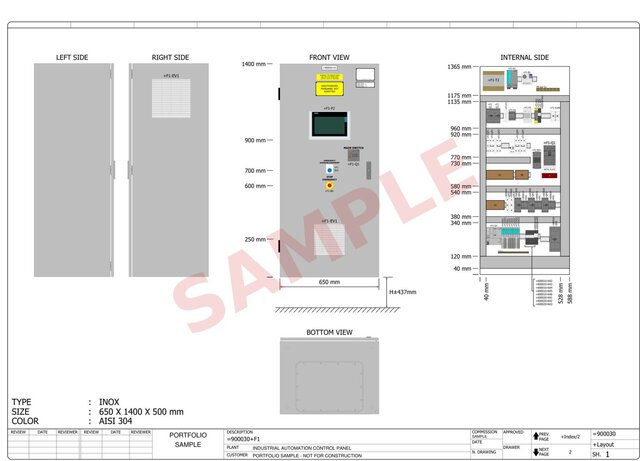

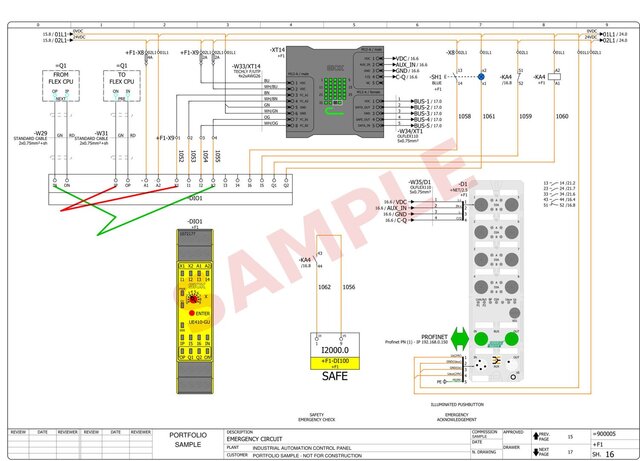

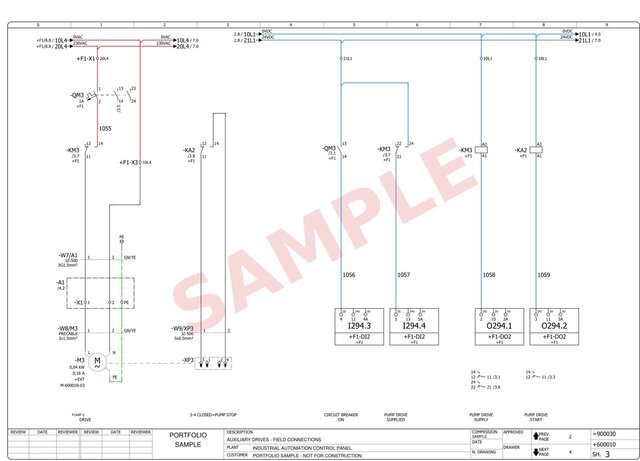

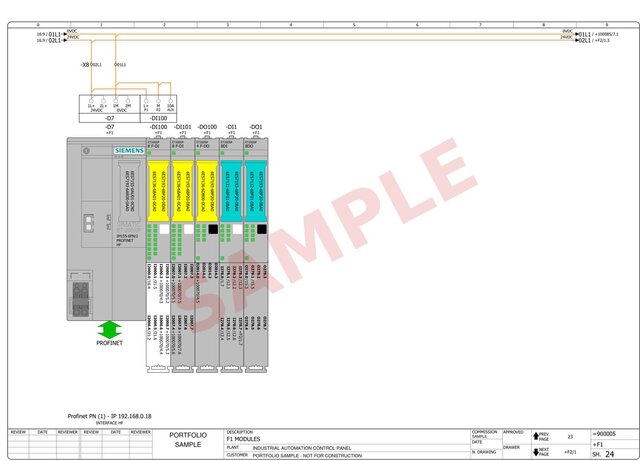

Industrial automation cabinet, 400 V AC, Siemens S7-1500F PLC with ET200SP Profinet I/O. Sample sheets: 5-section cabinet layouts, power and PLC schematics, Profinet network, field wiring (VFD with STO, motor starters, valves, sensors), cable and parts lists. Drawn to IEC practice in EPLAN style.

Published Oct 4, 2026

in Electrical Engineering Electrical Schematic Drawing Services Electrical 2D Drafting Services

control-panel schematics eplan wiring-diagram iec plc
