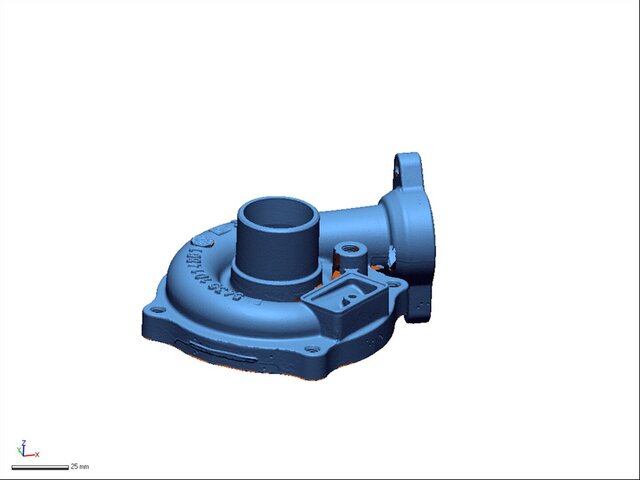

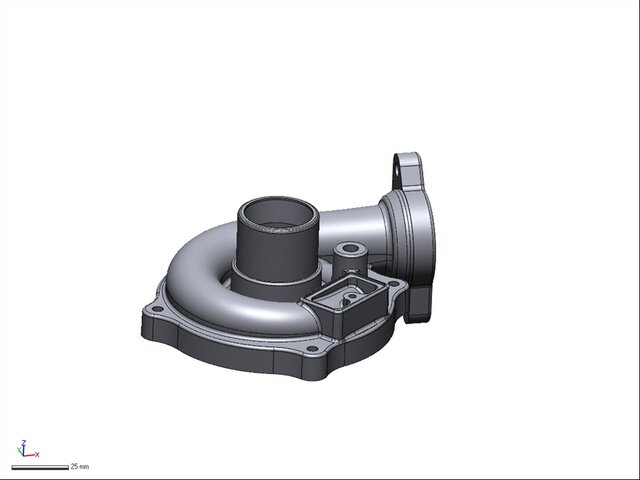

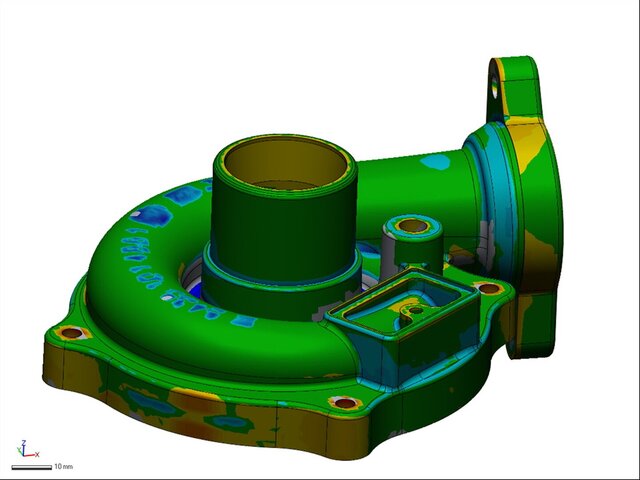

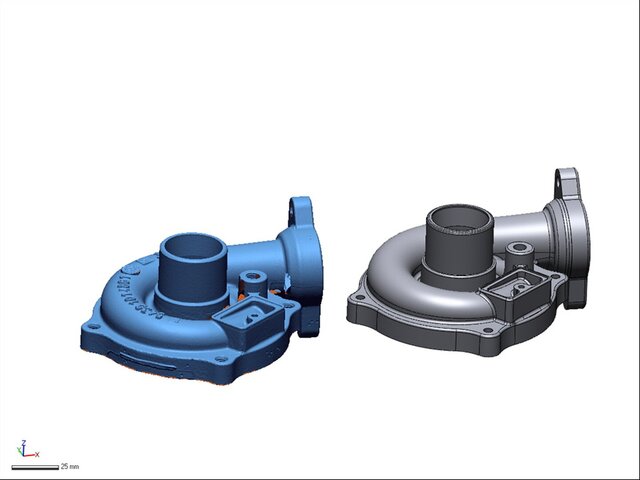

Parametric Centrifugal Blower

Comprehensive 3D CAD modeling of a multi-part centrifugal blower fan. The project features a complex organic volute (snail) casing, engineered with smooth surface transitions for optimal airflow. The entire assembly is designed with precise interlocking joints, clearance tolerances, and optimized wall thicknesses, making it fully ready for additive manufacturing (3D printing) and mechanical integration.
