🏭 MY 3D Modeling of an Industrial Thickener in SolidWorks 🏭

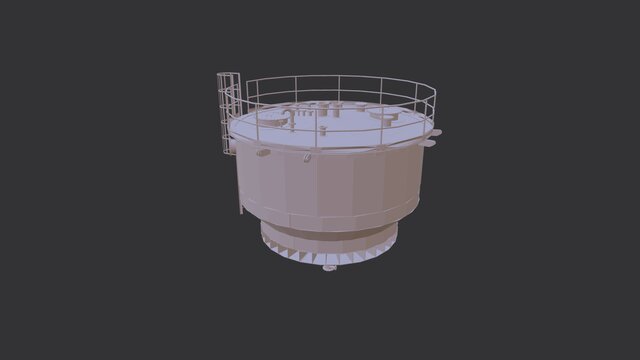

This project involves the complete 3D modeling of an industrial Clarifier Thickener by using SolidWorks. The model was developed with a focus on engineering accuracy, manufacturability, and assembly requirements. The model includes all major components, such as the tank shell, conical bottom, top platform, access ladder, safety handrails, nozzles, manholes, support structure, drive mounting, and other auxiliary components. The assembly was created to accurately represent the actual equipment and facilitate design review, fabrication, and documentation. 🔥 Project Highlights: ⚒️ Complete 3D modeling of an industrial Thickener ⚒️Part and Assembly modeling in SolidWorks ⚒️Design of structural and mechanical components ⚒️Accurate placement of nozzles, manholes, platforms, and access systems ⚒️Large assembly management and interference checking ⚒️Preparation of engineering models for fabrication and documentation such as GAD, Detail Drawing,MOT,,.... ⚒️Design based on API 650
