Multi-Level Relief Medallion - Vector Art to Full CAM

Report

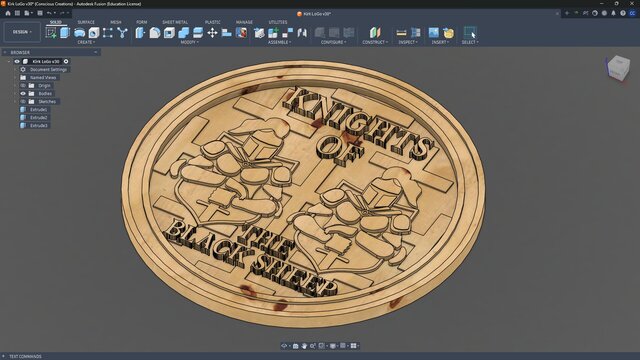

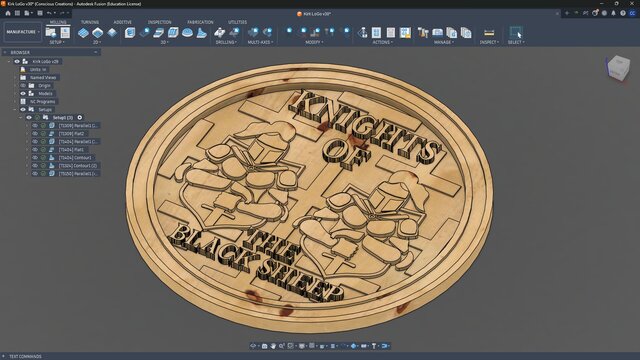

Custom heraldic crest taken from vector artwork to a multi-level 2.5D carved relief: twin knights, a cross, and custom gothic lettering wrapped to a ring. A full design-to-machine workflow, with 2.5D modeling plus a complete CAM program (3D parallel and flat finishing, contour, multiple tools). The whole pipeline, art to G-code, in one hand.
Published
in 3D Sculpting Design 2D to 3D Conversion Services CNC Programming
medallion heraldic relief
Rendering Images
