Mounting Bracket with Two Central Holes

Name: Cad Crowd
Address: 1709 E Glenoaks Blvd Apt 4, Suite 4, Glendale, CA, 91206, US
Telephone: +1.877.880.8850
Price range: $$$

mehdi777

Report

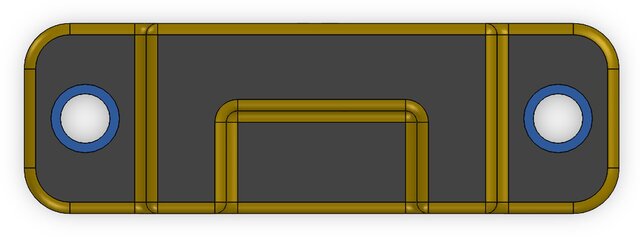

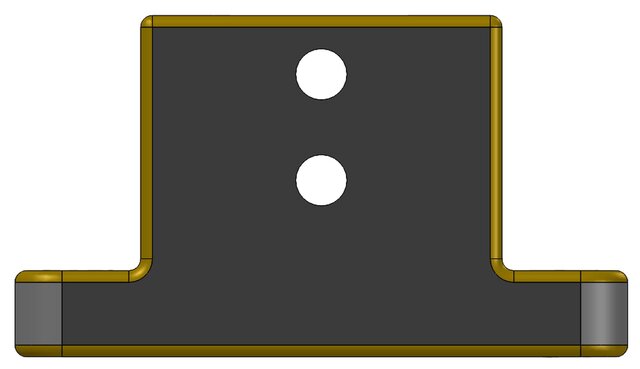

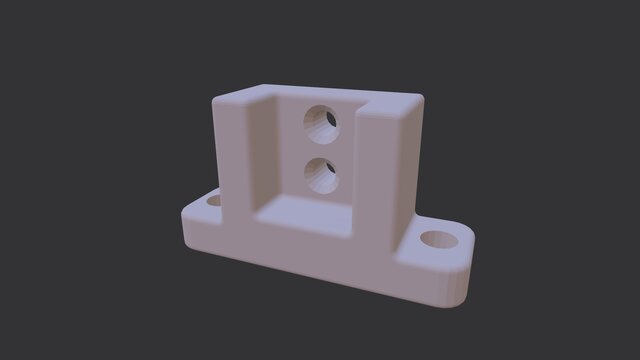

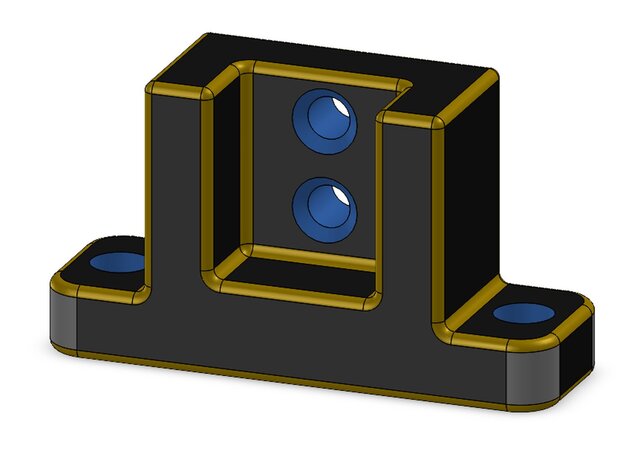

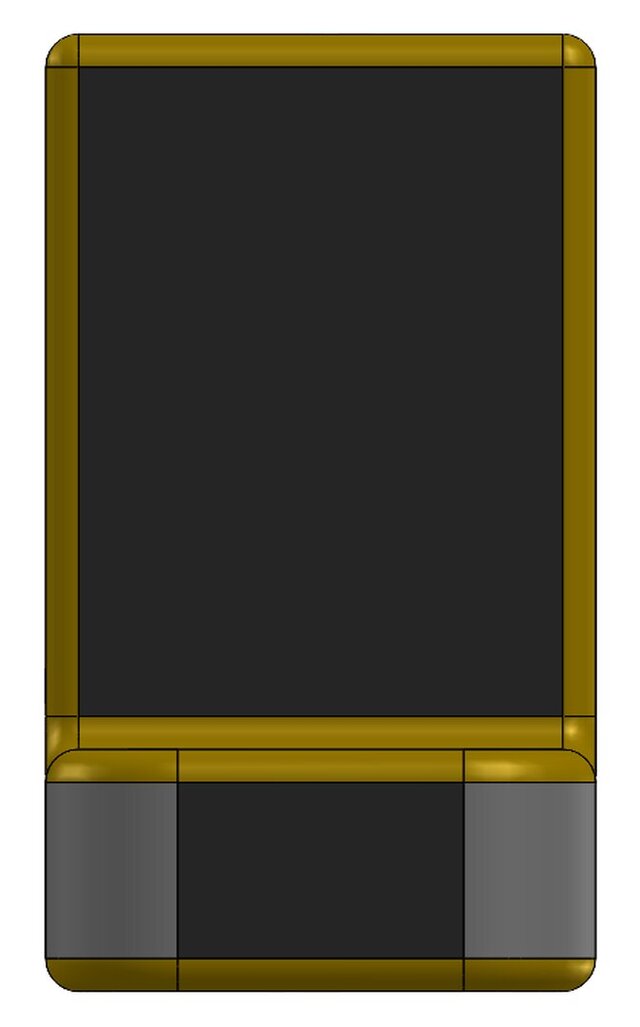

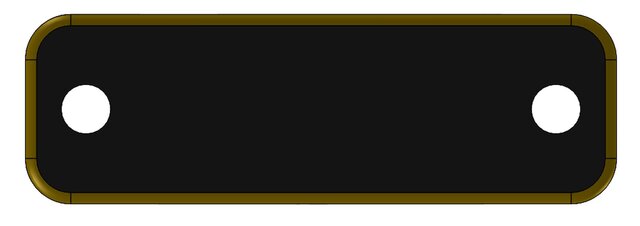

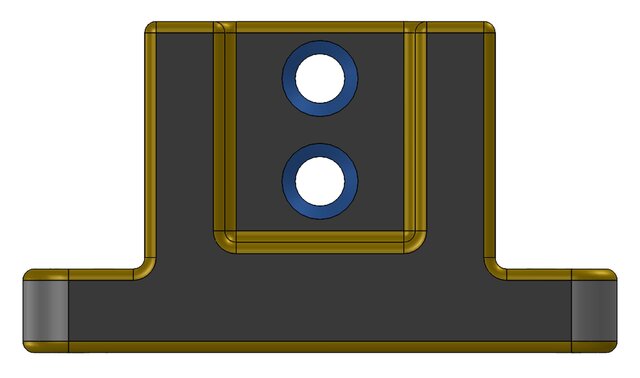

A 3D CAD model of a mechanical mounting bracket featuring a sturdy base, two mounting holes on the bottom flanges, and two vertically aligned holes in the central recessed section. The design includes rounded edges and fillets to improve its appearance and reduce sharp corners.

Published Oct 23, 2026

in 3D Modeling Design Industrial Design Services

mechanical-bracket support-bracket

Rendering Images STEP/STP 3D Modeling
