NC4gate Automatable Gate Module

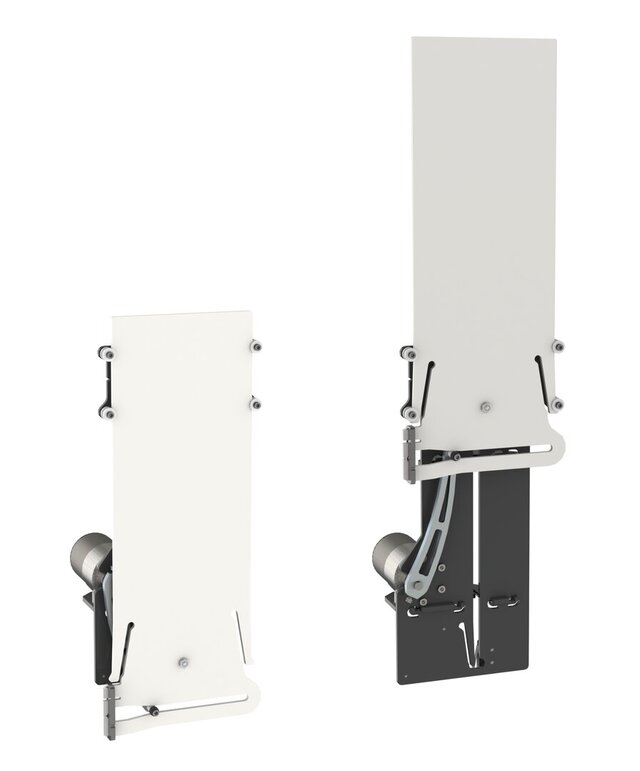

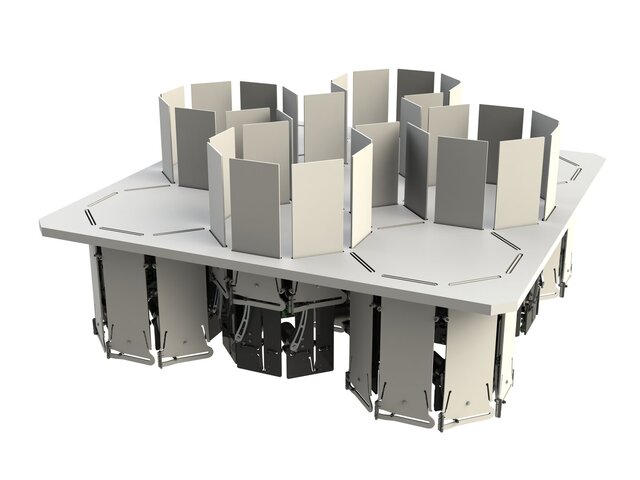

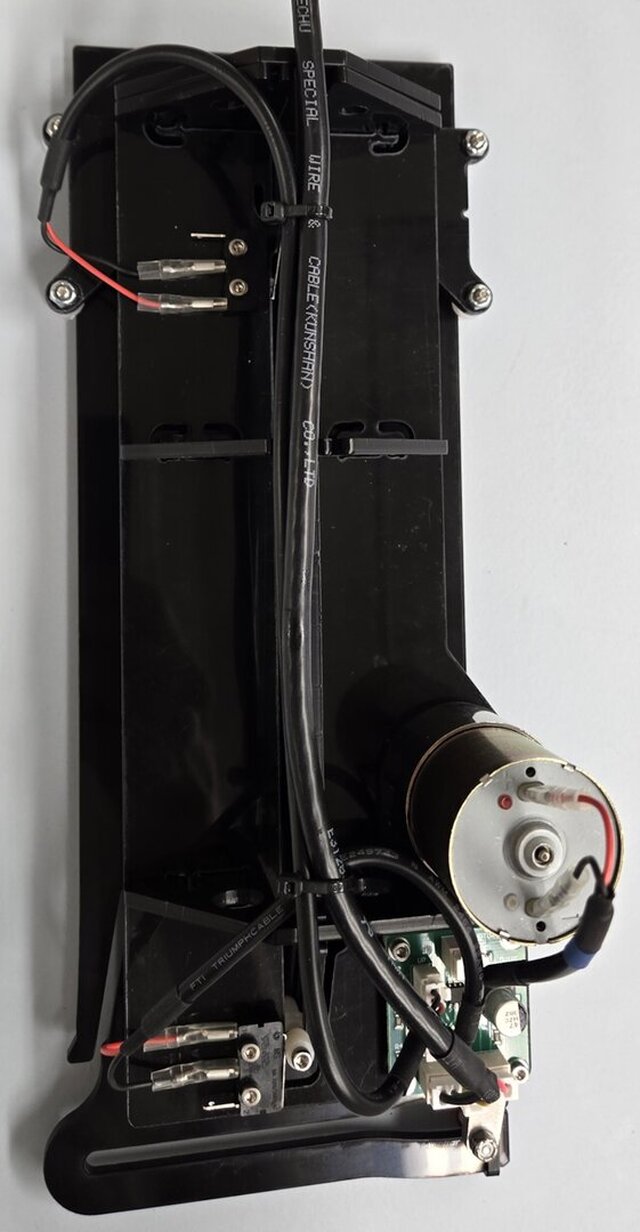

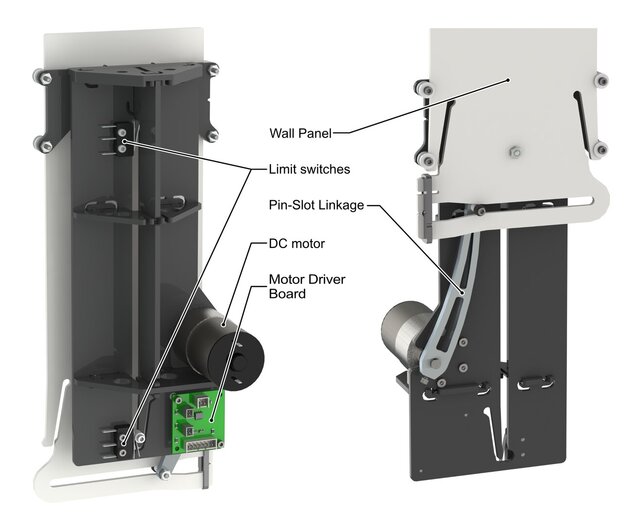

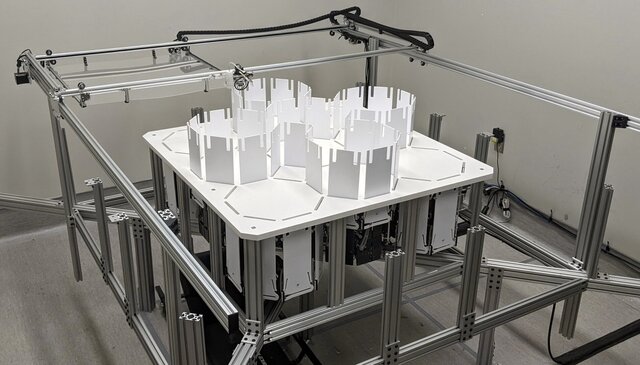

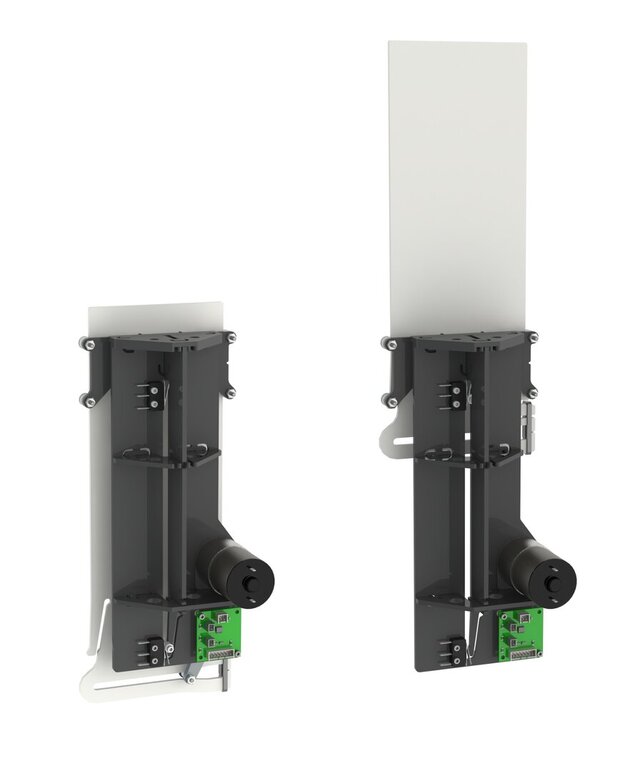

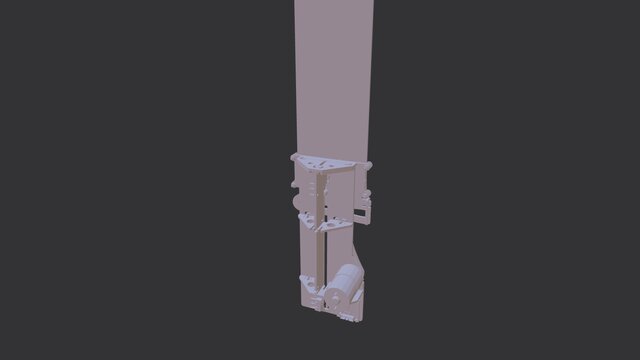

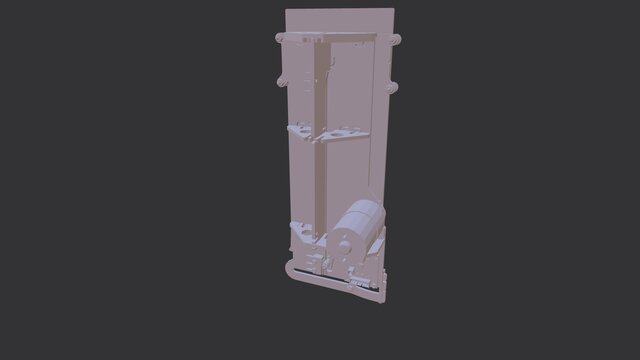

Modular motorized gate system for autonomous control of rodent behavior in maze experiments. ## Description These gate modules, termed the NC4gate, were designed for use with another portfolio project: the [Omniroute Maze System](https://www.cadcrowd.com/3d-models/omniroute-maze-system). Each module is constructed from laser-cut POM-C acetal panels joined with snap-fits and minimal fasteners, with a waterjet-cut aluminum pin-in-slot linkage driven by a compact 12 V DC gearmotor. Limit switches at the top and bottom of travel register position and ensure safe, reliable operation. The design provides 180 mm of gate travel in a compact 117 × 86 × 290 mm footprint, allowing modules to be densely packed in multi-gate maze systems. Standard hardware and drilling jigs streamline fabrication and assembly. Electronics include a custom motor driver board (based on the TI DRV8870 chip) for PWM motor control and limit switch monitoring. For large-scale setups, modules connect via I²C to Cypress expansion boards, enabling a single Arduino Mega to control up to 512 gates. ## Role & Contributions - Conceived, designed, and fabricated the mechanical system - Developed all CAD models and assemblies - Directed custom PCB development team - Principal author of firmware and host software - Produced assembly, wiring, and operating documentation - Primary maintainer ## Highlights & Key Specs - **Envelope:** 117 × 86 × 290 mm (gate lowered) - **Gate travel:** 180 mm total - **Typical actuation time:** ~578 ms up, ~531 ms down - **Endurance:** thousands of cycles; individual modules tested up to 100,000 cycles - **Control scale:** up to 512 gates from a single PC and microcontroller - **Interfaces:** Qt-based GUI for manual operation; Python API for programmatic control ## Materials & Fabrication - **Structure:** laser-cut POM-C acetal (3.175 mm) with snap-fit features and minimal fasteners - **Actuation:** 12 V 50 RPM DC gear motor (37 mm can) driving pin-in-slot linkage - **Linkage:** waterjet-cut aluminum arm for durability under repeated cycling - **Sensing:** upper and lower limit switches for hard-stop detection - **Hardware:** standard fasteners, spacers, rollers; cable ties and strain relief provisions ## Validation & Performance - **Actuation latency:** tests on N=5 modules across 50 cycles each show consistent latencies: upward ~578 ms and downward ~531 ms, suitable for behavioral control - **Stress testing:** long operational life up to 100,000 cycles, with field-repairable failure modes (motor wear, linkage retention, wiring); 60-module system running near-daily for over one year ## Deployment & Status - **Development:** completed, Dec 2021–Sep 2023 - **Deployment:** NC4 Lab, University of British Columbia (3 studies) - **Status:** active, Sep 2023–present, NC4 Lab ## Release - **CAD:** - Design files including SolidWorks assemblies and parts, PCBs, jigs, cutting templates, and documentation: [https://osf.io/uy7ez](https://osf.io/uy7ez) - **Software:** - Standalone NC4gate firmware and software repo: [https://github.com/NC4Lab/NC4gate](https://github.com/NC4Lab/NC4gate) - Omniroute system firmware and software repo: - ROS workspace (Ubuntu host): [https://github.com/NC4Lab/omniroute_ubuntu_ws](https://github.com/NC4Lab/omniroute_ubuntu_ws) - ROS workspace (Windows host): [https://github.com/NC4Lab/omniroute_windows_ws](https://github.com/NC4Lab/omniroute_windows_ws) - **Related portfolio entry:** [Omniroute Maze System](https://www.cadcrowd.com/3d-models/omniroute-maze-system) ## Licensing - **Hardware:** CERN-OHL-W v2.0 - **Software:** Apache-2.0 - **Documentation:** CC BY 4.0 ## References For additional details, including system performance tests and detailed schematics, see the preprint methods manuscripts for the NC4gate system and associated Omniroute maze: - Lester, A. W., Kaur, G., Djafri, N., & Madhav, M. S. (2024). [A modular gate system for autonomous control of rodent behavior](https://www.biorxiv.org/content/10.1101/2024.11.22.624912v1). bioRxiv. - Lester, A. W., Mombeini, A. G., & Madhav, M. S. (2025). [The Omniroute maze: a novel rodent navigation apparatus that integrates dynamically configurable routes, sensory cues, and automated reward delivery](https://www.biorxiv.org/content/10.1101/2025.09.01.672969v1). bioRxiv. ## Included files *Attached on this page.* ### Image Files - **render_1.png:** three-quarter view (front/rear, right, top) render of gate module - **render_2.png:** three-quarter view (front, right, top) render of gate module in raised and lowered state - **render_3.png:** three-quarter view (rear, right, top) render of gate module in raised and lowered state - **render_4_annotated.png:** annotated three-quarter view (front/rear, right, top) render of gate module - **render_5.png:** three-quarter view (front, right, top) render of 60 gate modules installed in Omniroute rig - **cadview_1_annotated.png:** annotated exploded CAD view of gate module - **photo_1.png:** bench photo of gate module, electronics side - **photo_2.png:** bench photo of gate module, wall panel side - **photo_3.png:** bench photo of 60 gate modules installed in Omniroute rig ### 3D Model Files - **nc4_gate_TOP_ASSY_lowered.step:** top-level assembly of automatable gate module in lowered position - **nc4_gate_TOP_ASSY_raised.step:** top-level assembly of automatable gate module in raised position
