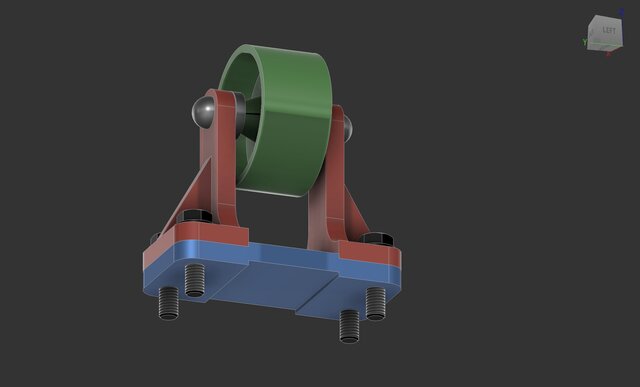

Mechanical Assembly | Support Roller Stand

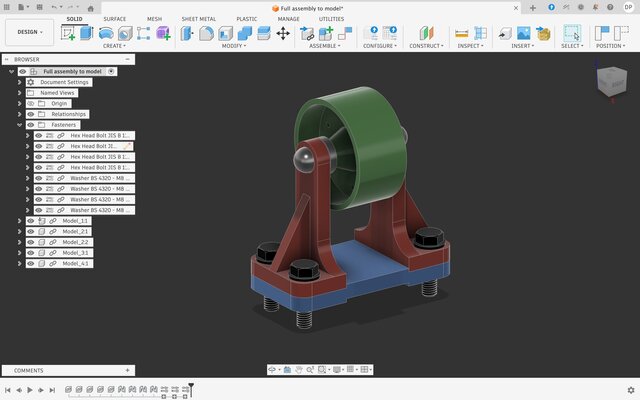

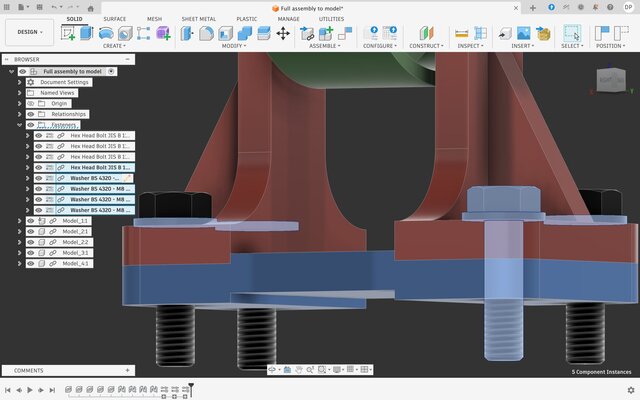

This project demonstrates the design and management of a mechanical assembly containing both custom modeled components and standard hardware. Technical Highlights: • Component Management: Organization of multiple unique parts into a cohesive assembly structure. • Assembly Joints: Proper use of Fusion 360 joints (Revolute/Rigid) to simulate real-world movement and fitment. • Standardized Hardware: Integration of standard fasteners (bolts and washers) from engineering libraries for a complete Bill of Materials (BOM) view. Files included: STEP (Master Assembly) for compatibility.
