MCC - Motor Feeders & VFD Drives

Report

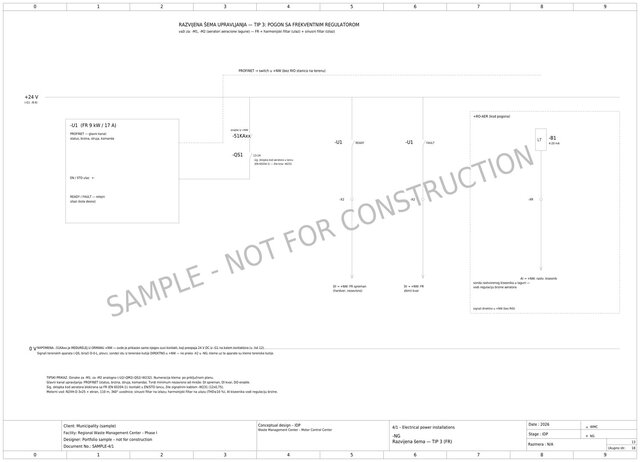

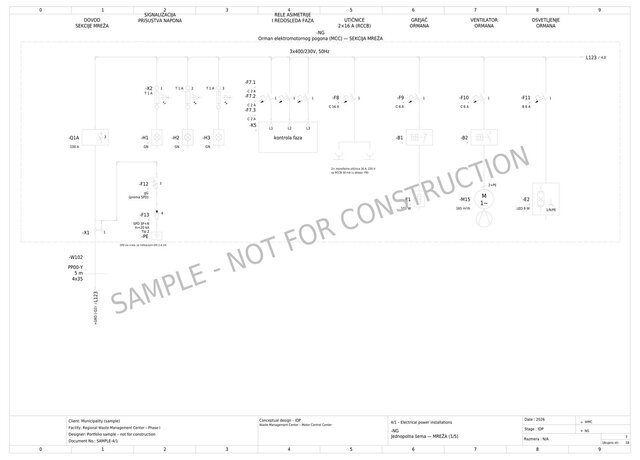

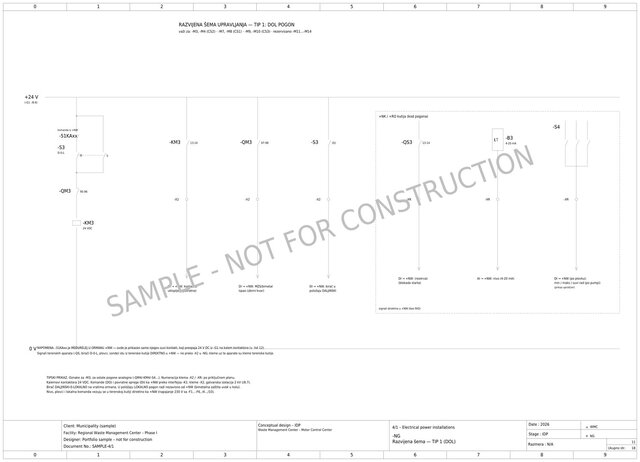

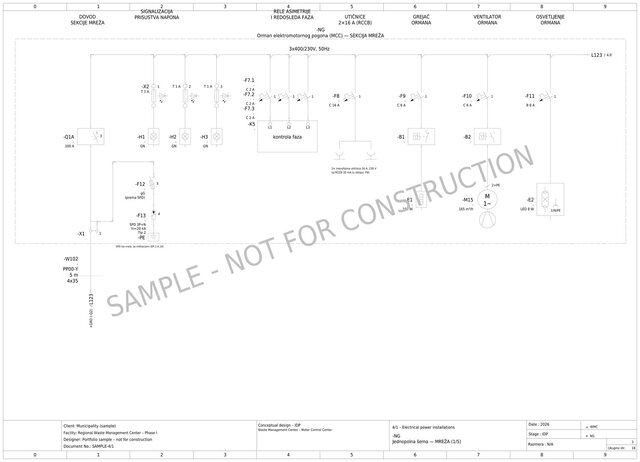

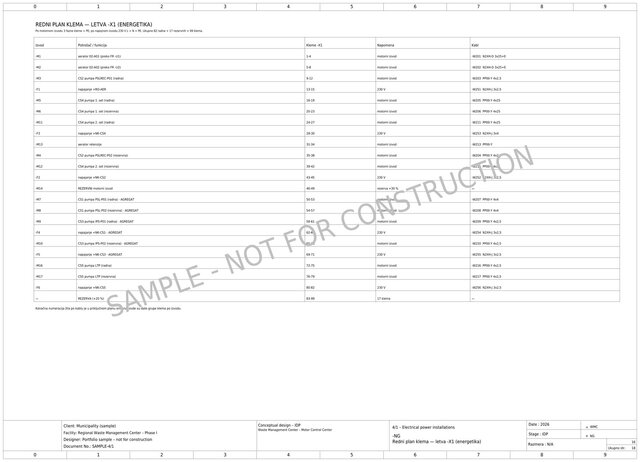

Motor control center for a waste management plant: motor starters, VFD-driven aerators, 24 VDC control supply with UPS, field junction boxes and terminals. Consistent device tagging across all sheets, terminal plan and cable list generated from one master motor list.
