Marine Control Panel Component — CAD Design

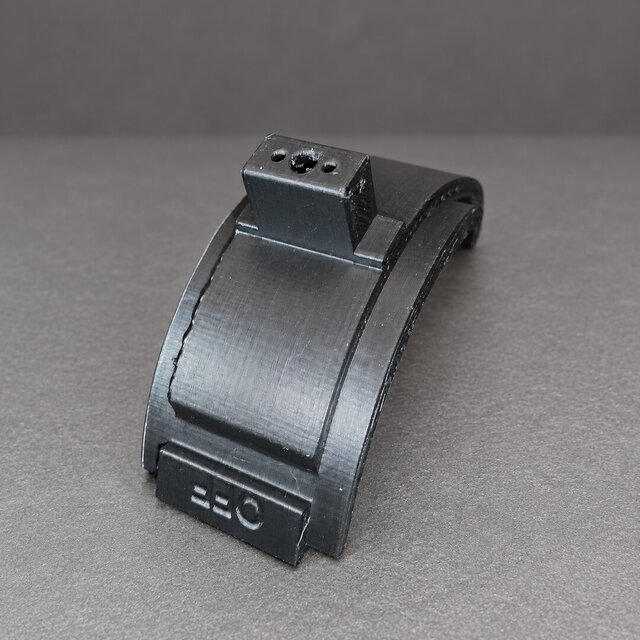

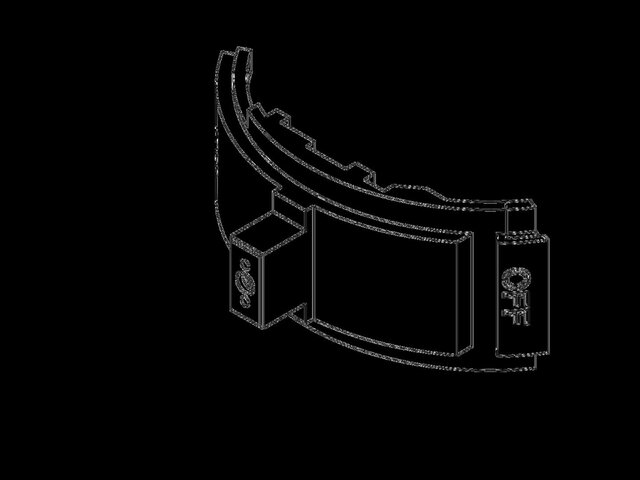

CAD model of a switch component for an electronic control panel used on cargo ships. Challenge: Document the control component geometry and interfaces for the stated panel application. Solution and contribution: Eleven 3D modeled the curved profile, mounting regions and OFF identification in Autodesk Fusion 360. Complementary isometric, front and side CAD views show the component geometry. The portfolio includes a photograph of a printed component with a treated background. No marine certification, material specification, electrical performance or functional testing is claimed.
