MAGNET FRAME CASTING

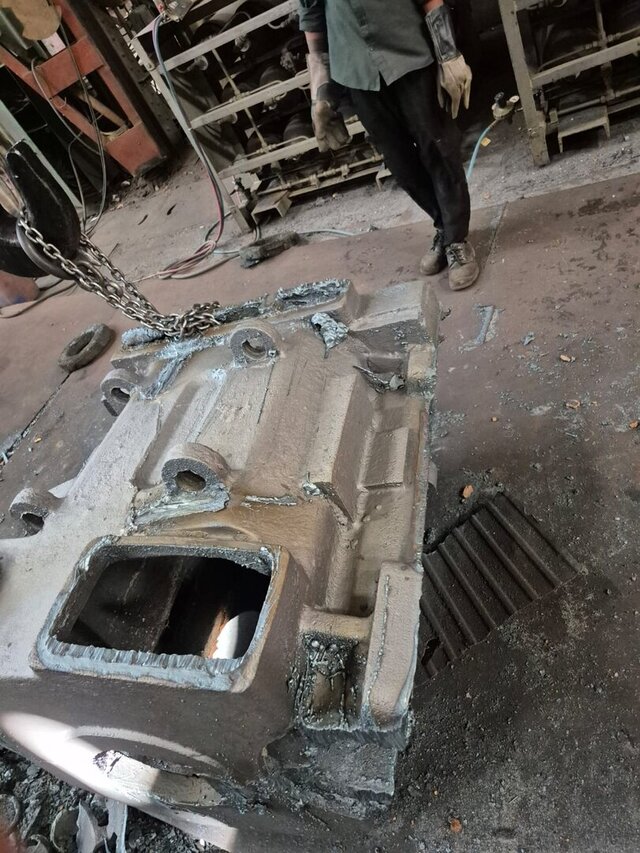

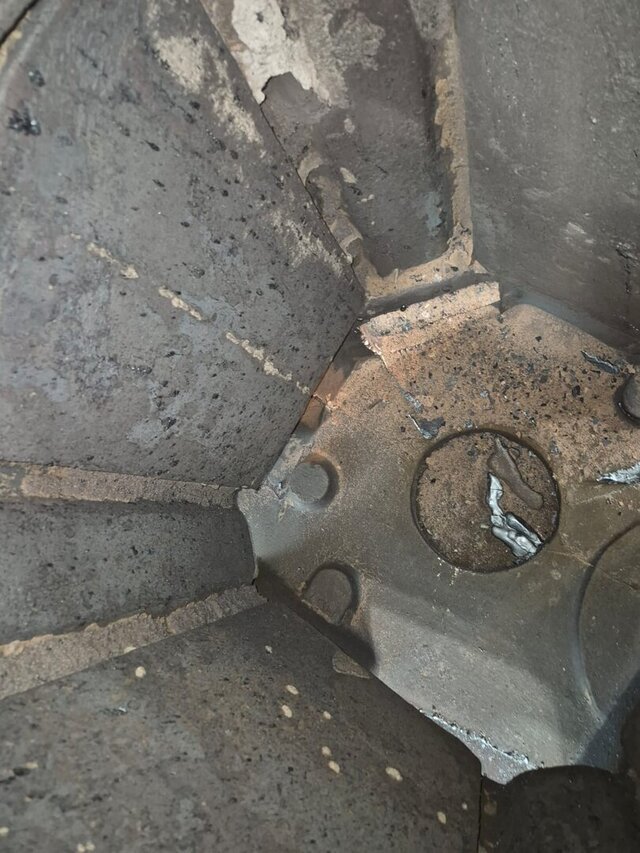

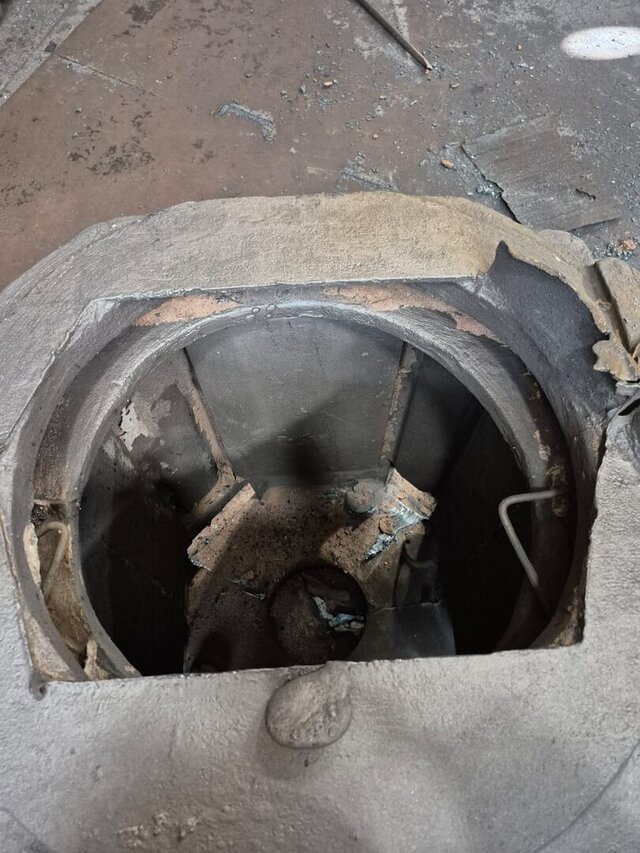

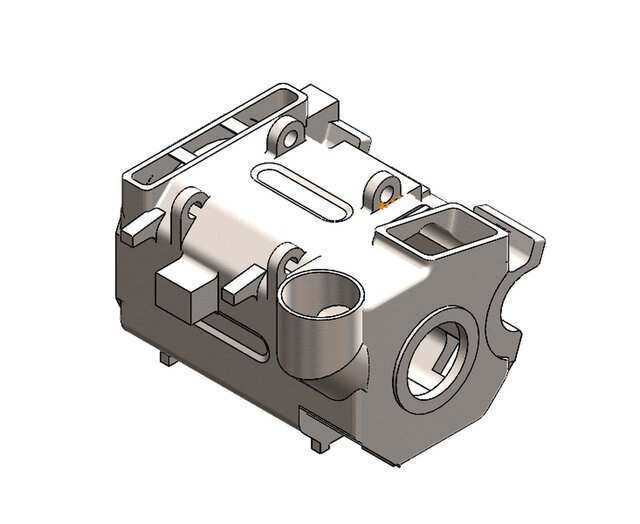

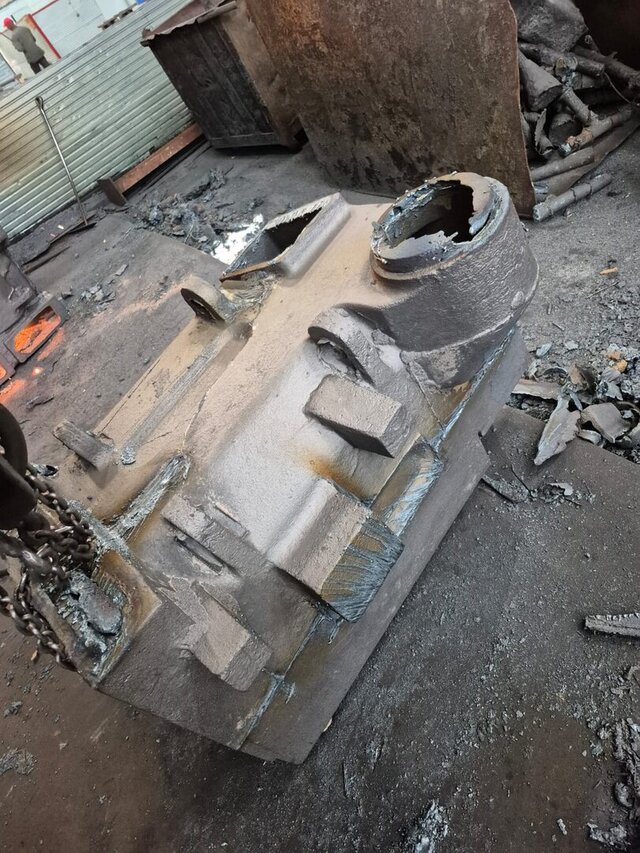

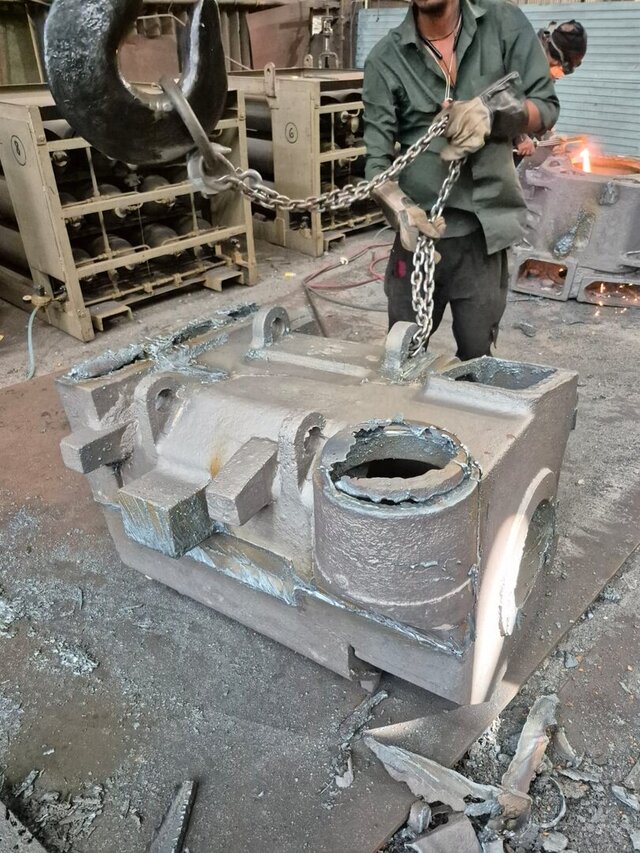

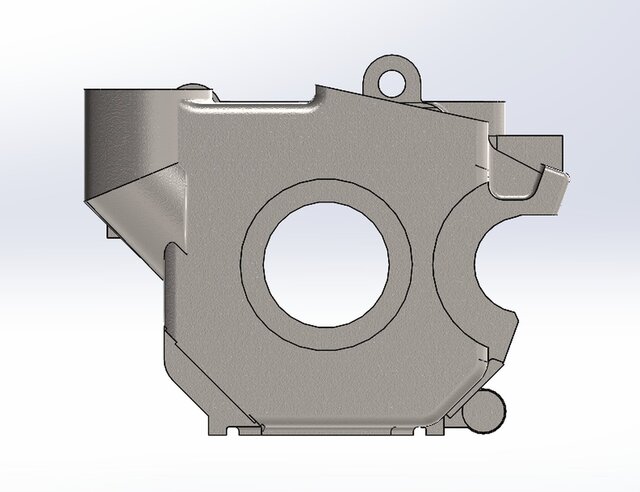

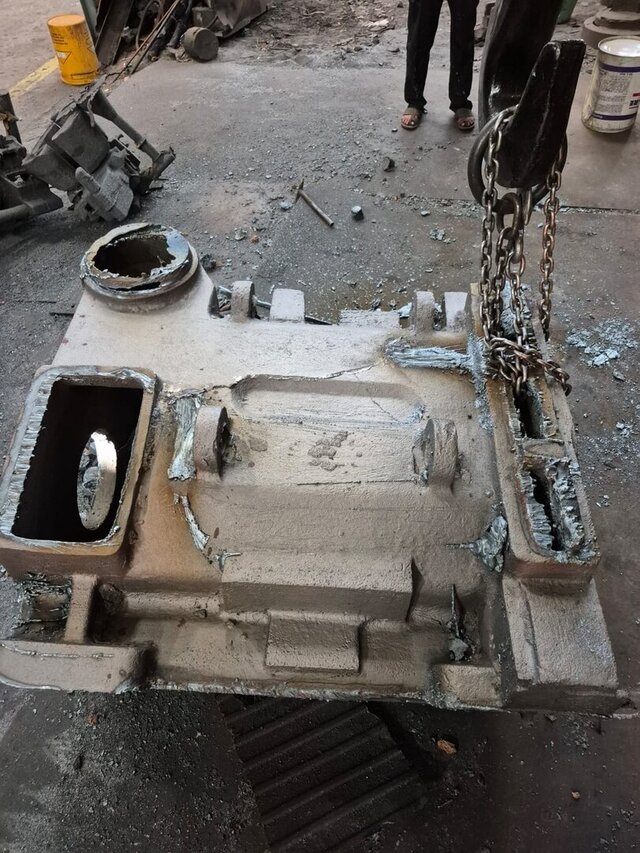

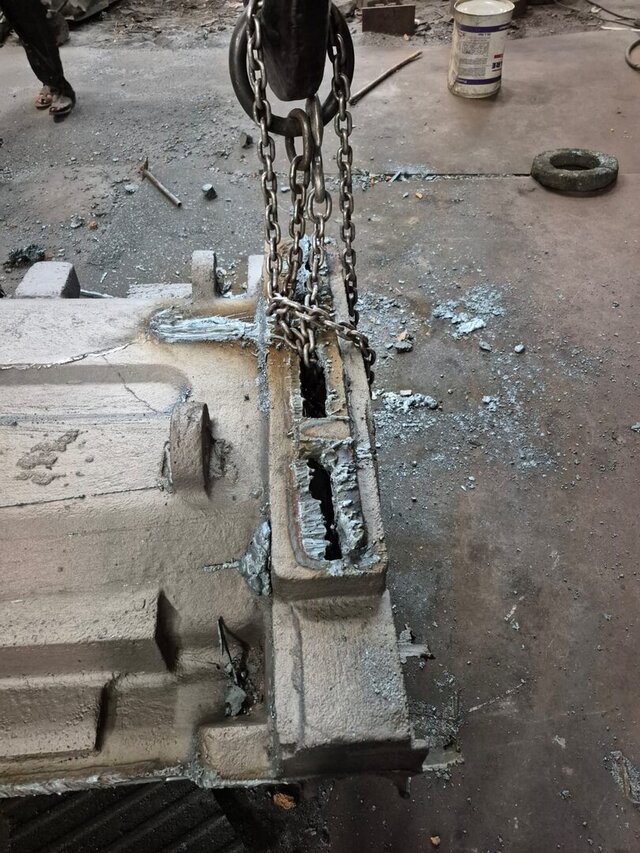

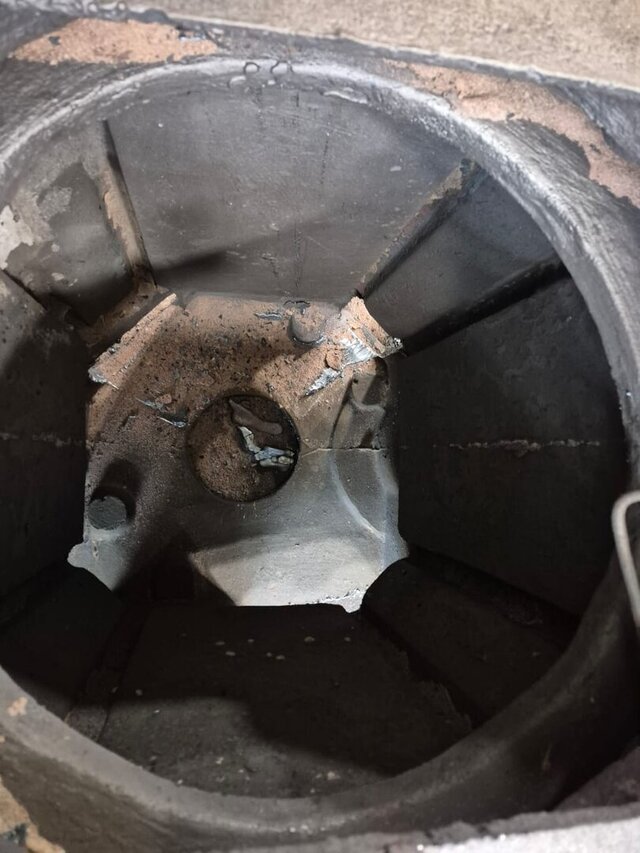

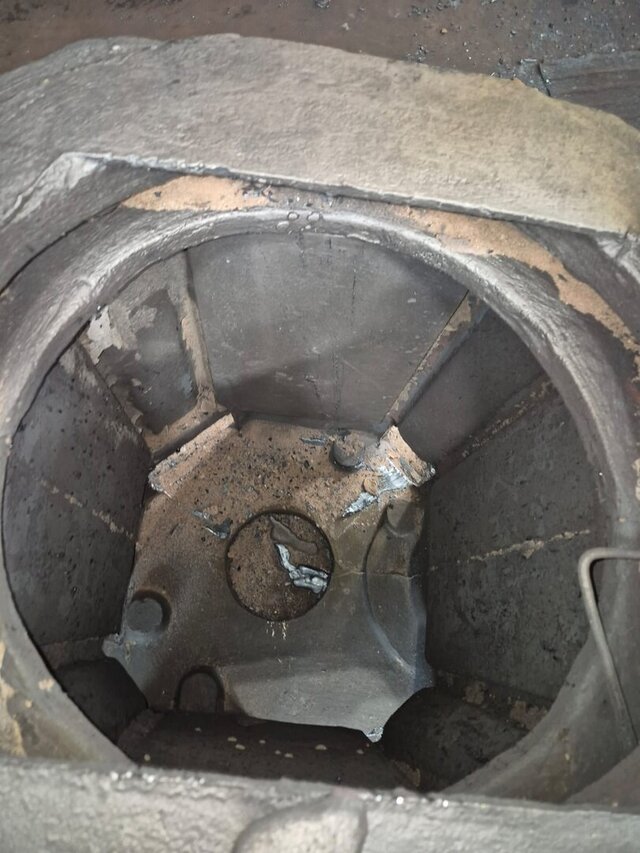

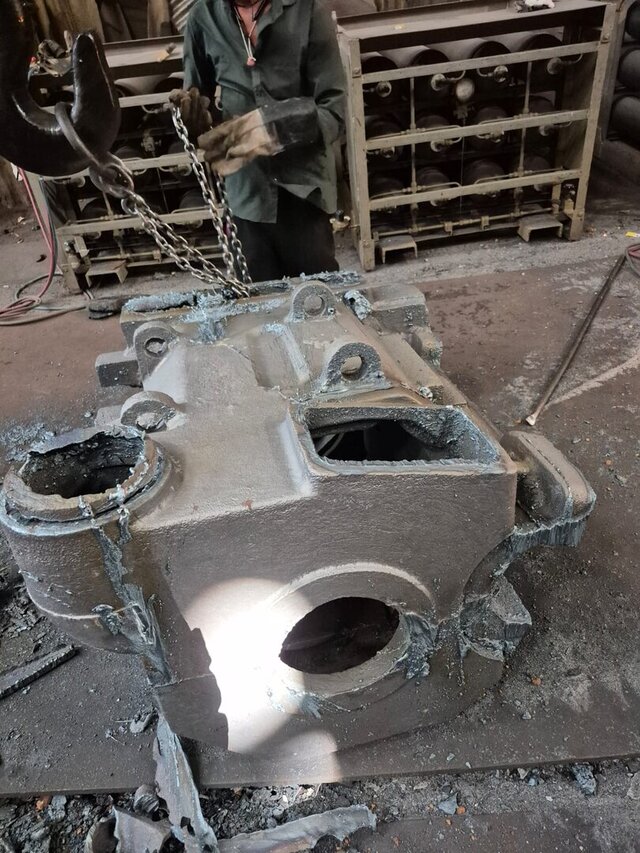

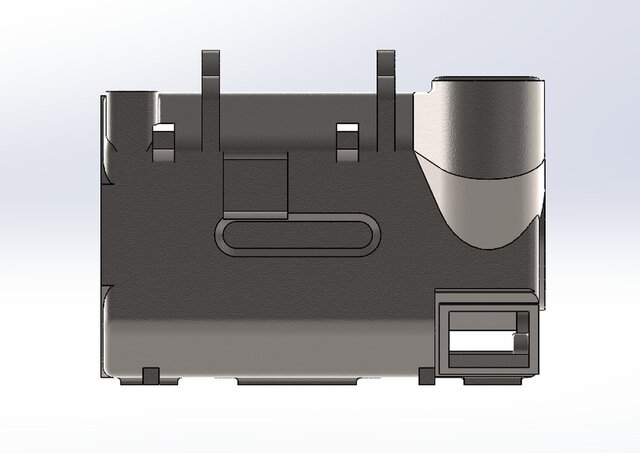

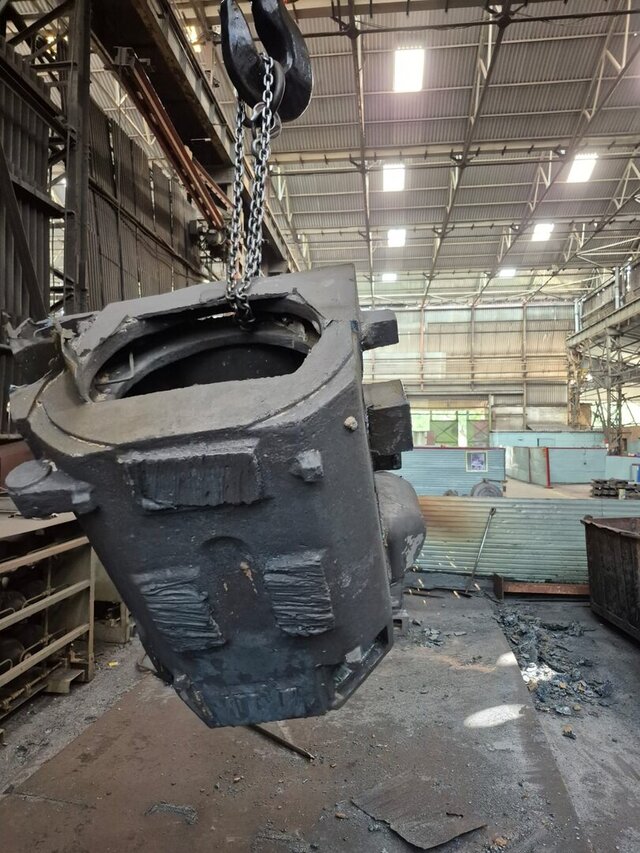

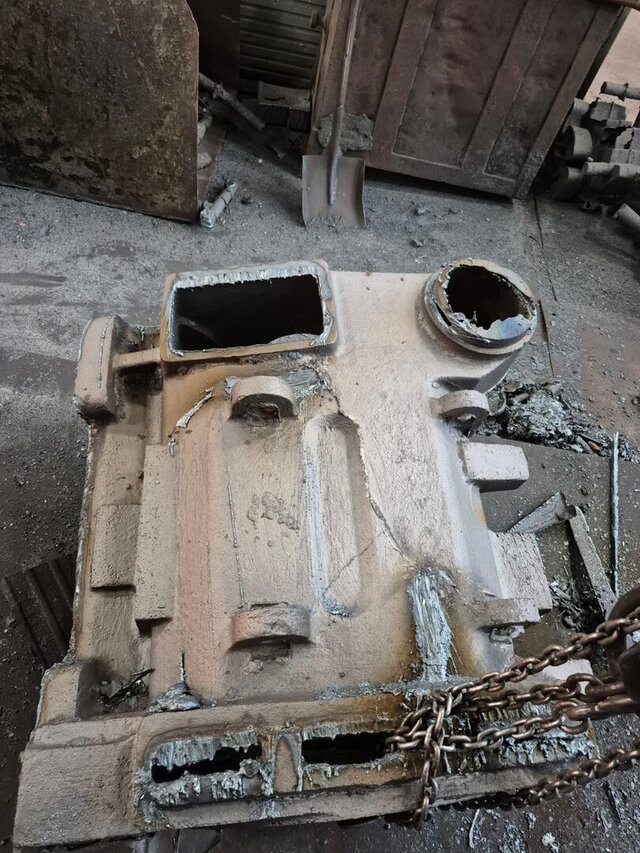

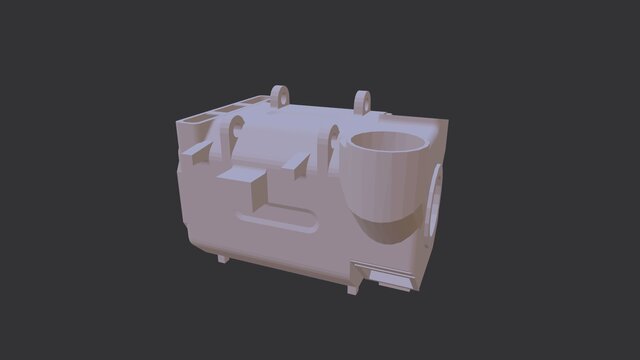

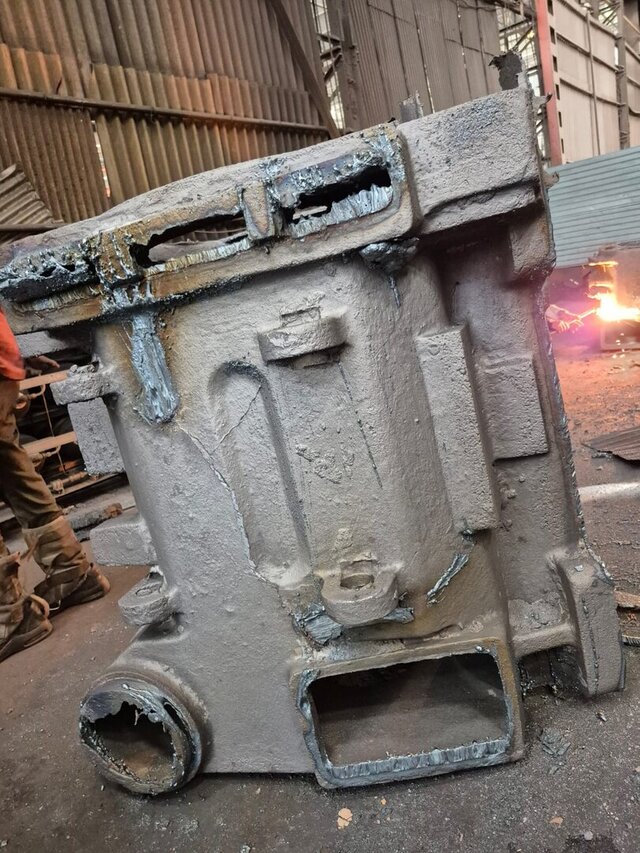

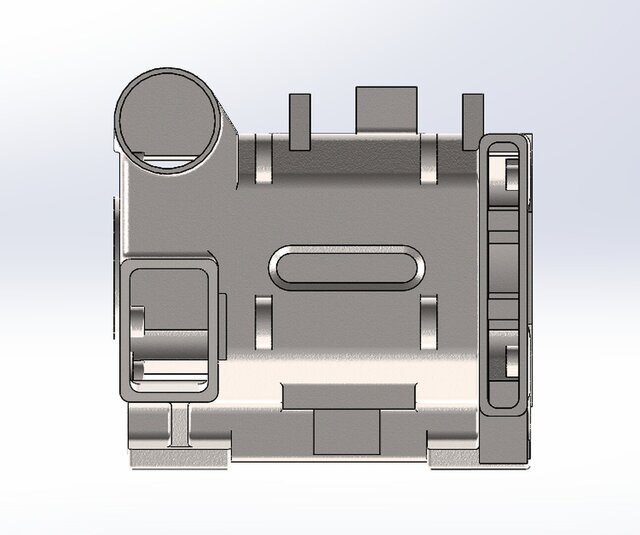

high-precision industrial metal casting, specifically designed as a magnet frame or housing for heavy-duty electrical or mechanical equipment. The part exhibits complex geometry that suggests it was produced via investment casting or high-pressure die casting to achieve its detailed features. Key Design Features Main Cylindrical Bore: The primary structural element is a large, central hollow chamber. This is designed to house internal components, likely a rotor, stator, or magnetic assembly. Integrated Mounting Points: Lifting Lugs: Two rounded tabs with pre-cast holes sit atop the main body for easy rigging and installation. Side Brackets/Mounting Rails: Flanged ridges run along the length of the base to provide secure attachment points to a chassis or bedplate. Functional Ports: Circular Boss: A raised, vertical cylindrical port on the top rear, likely for cable entry, sensors, or fluid cooling. Rectangular Port: A secondary access point or junction box mounting area on the upper front section. Structural Reinforcement: Vertical and horizontal ribbing is visible on the end face and sides to maximize the strength-to-weight ratio and dissipate heat.
