LV Network Calculation in SIMARIS design

Report

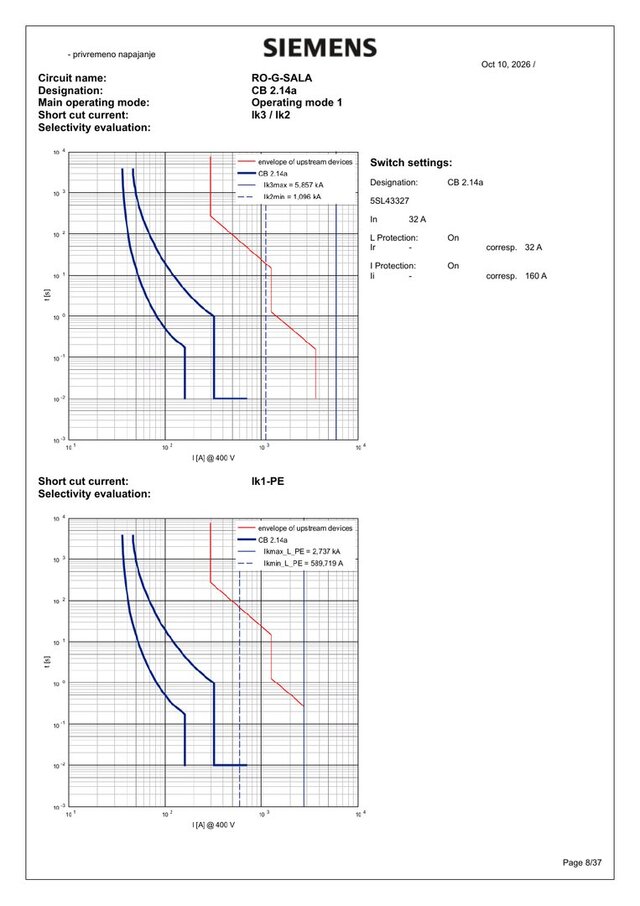

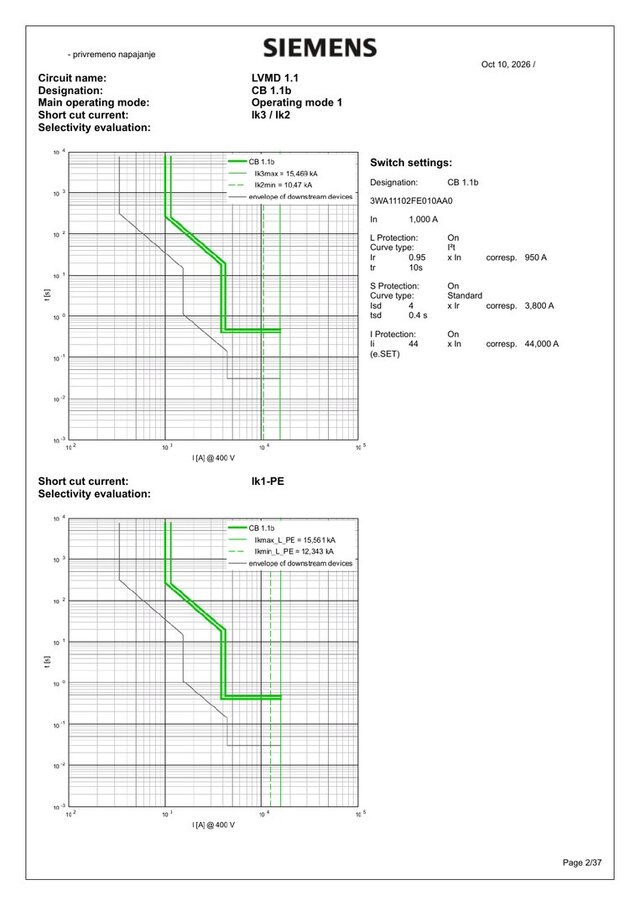

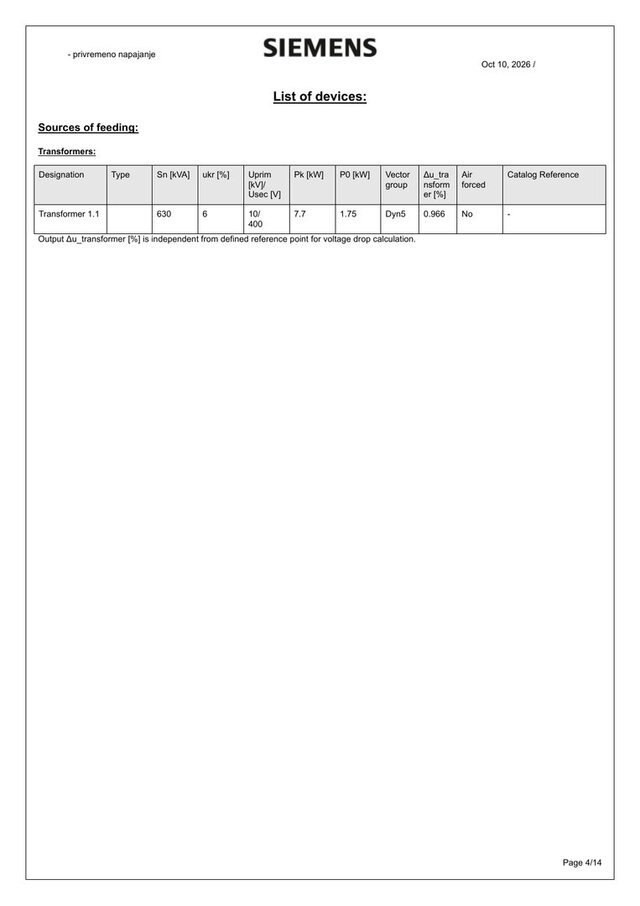

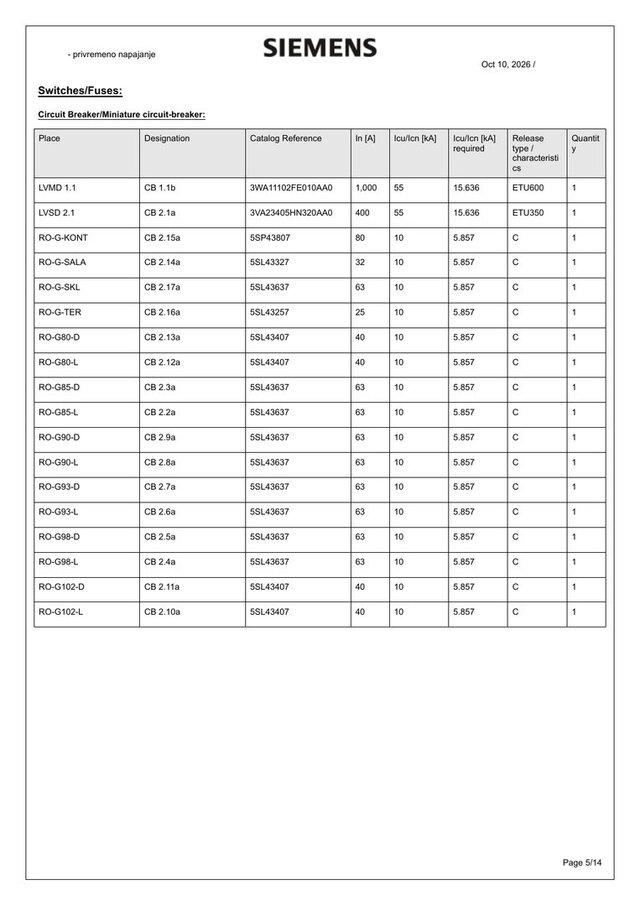

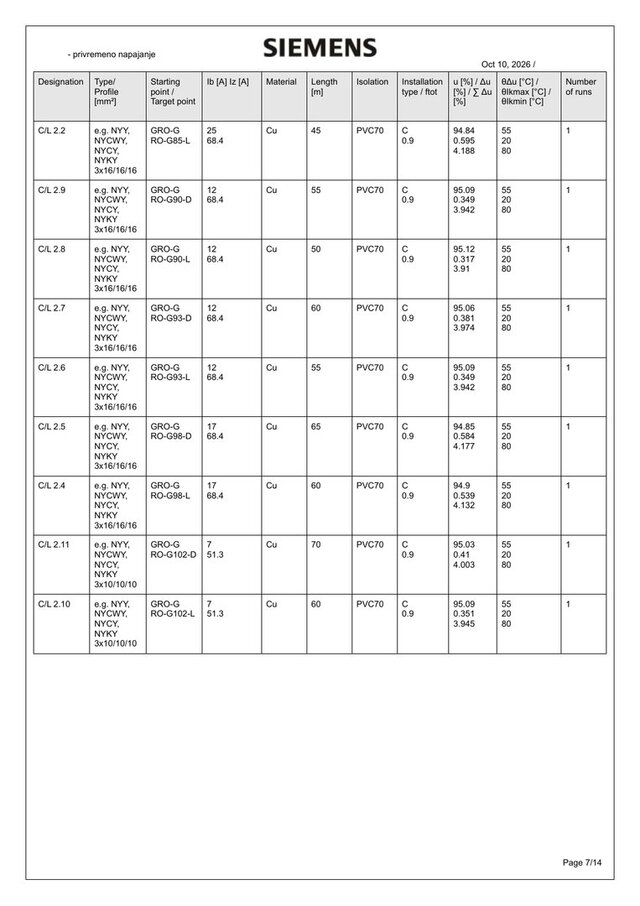

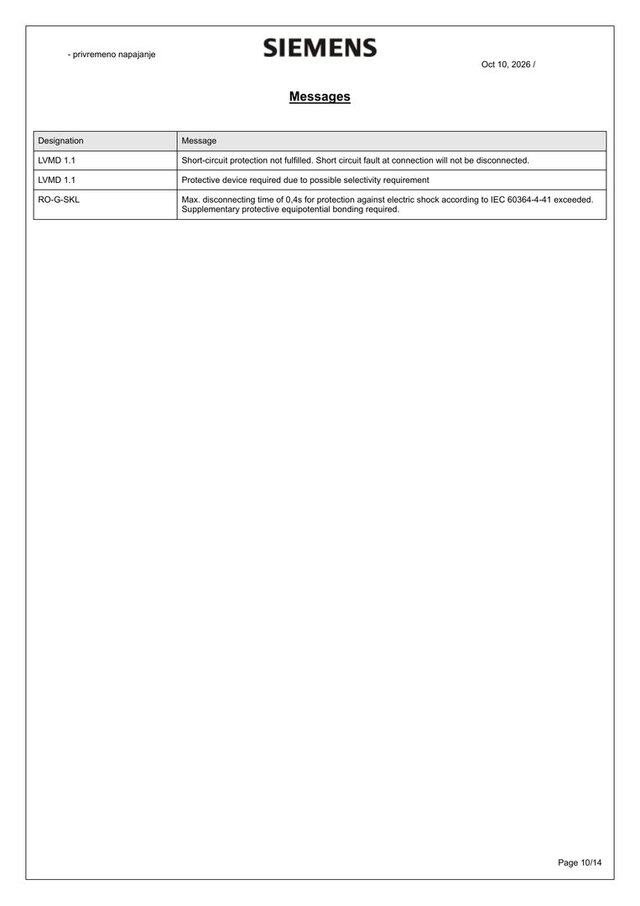

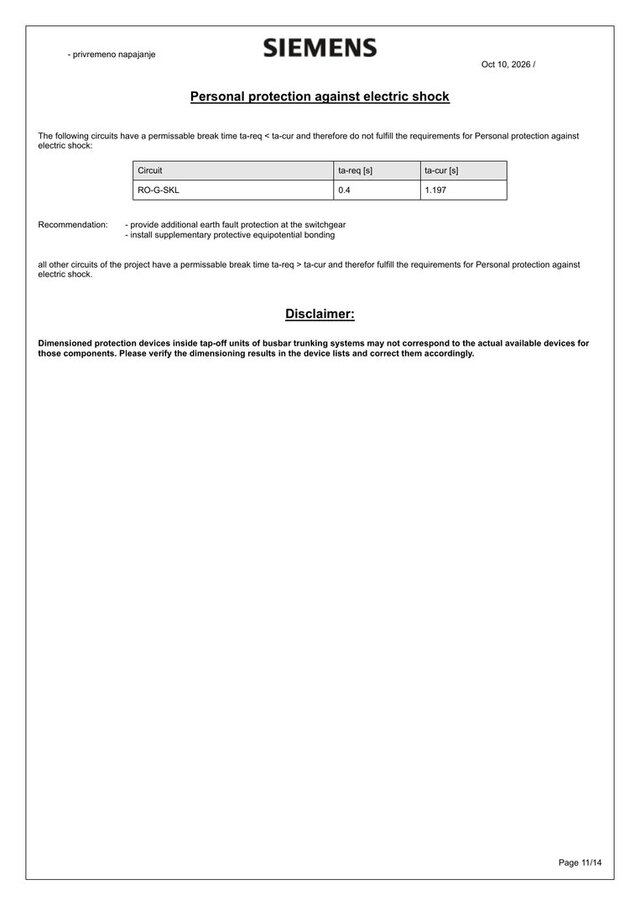

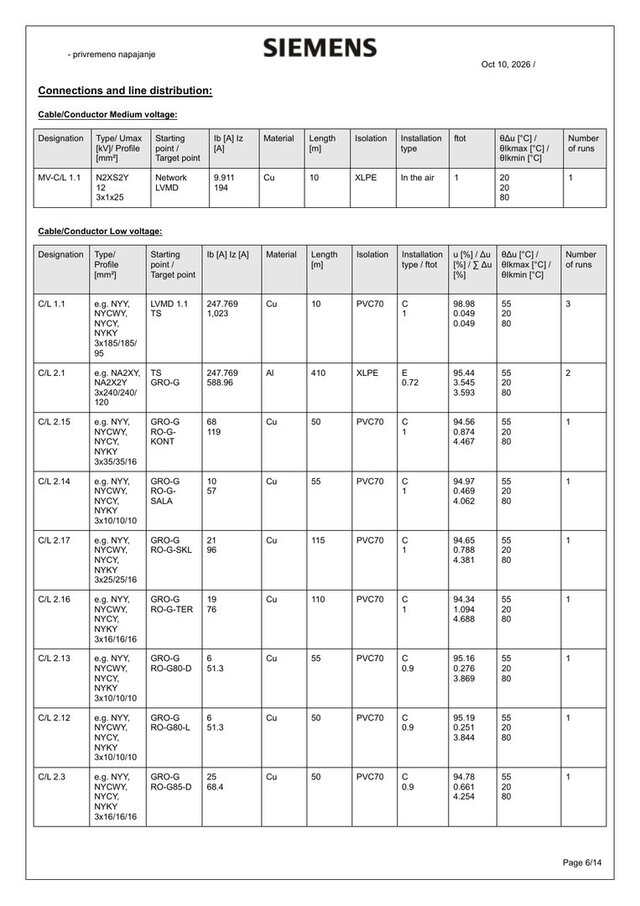

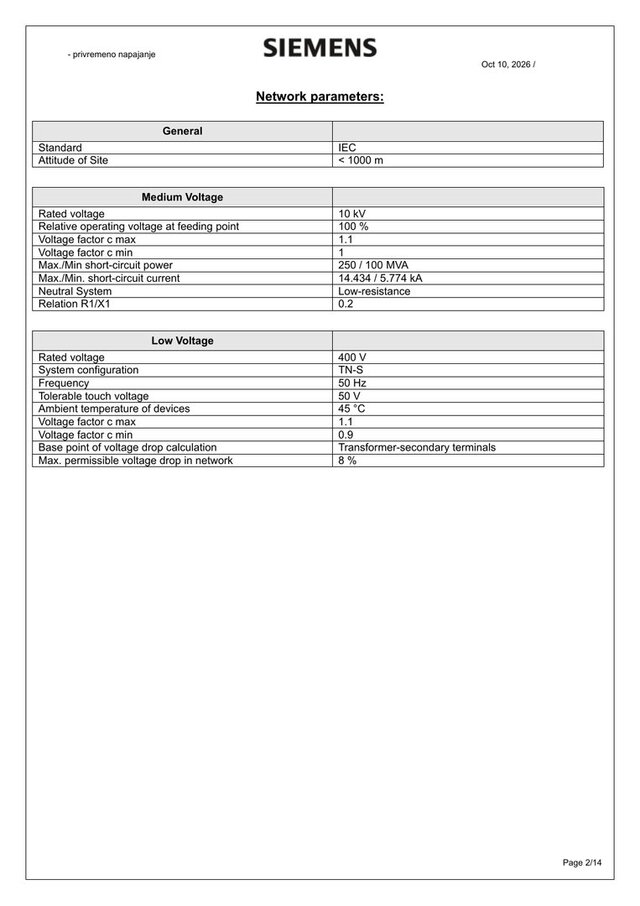

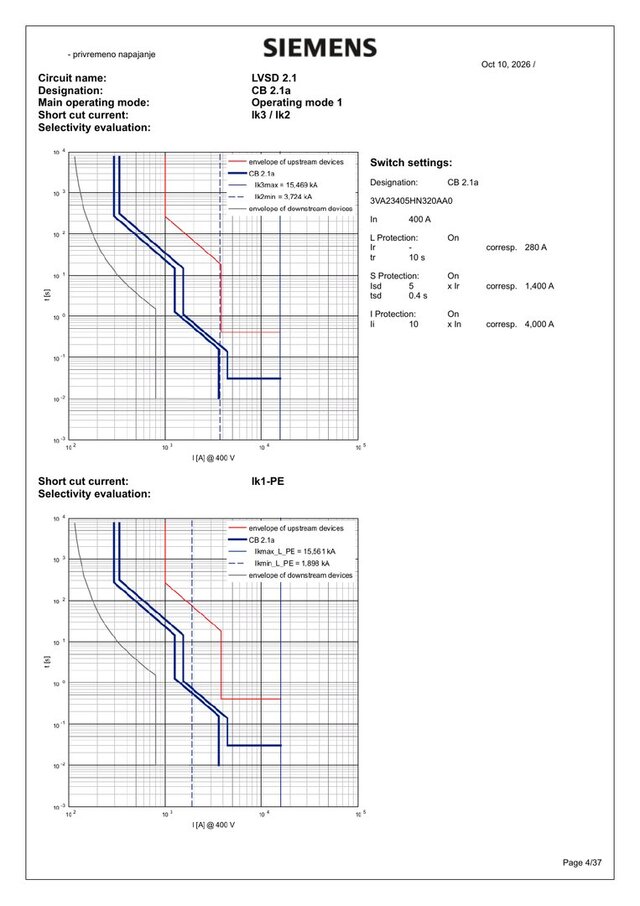

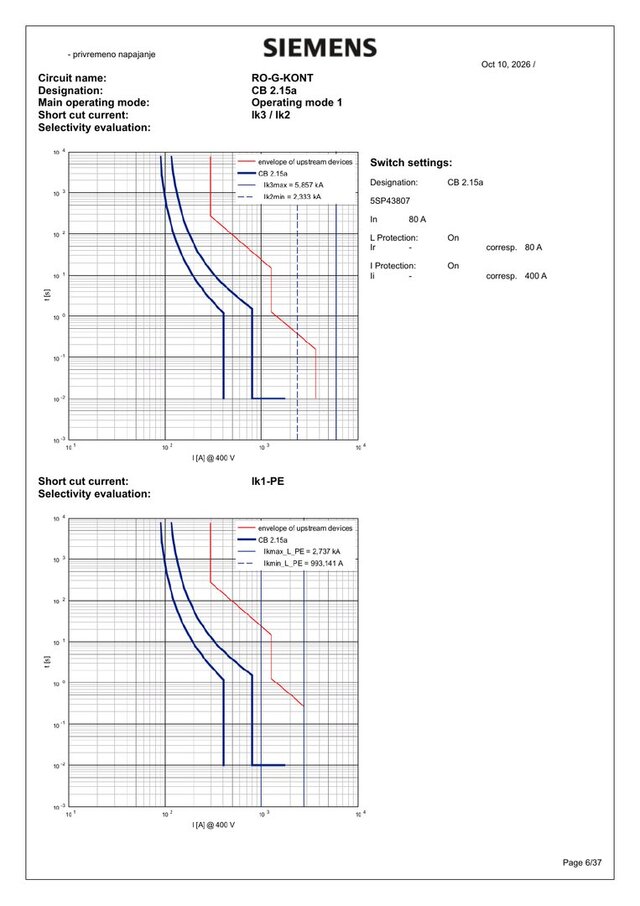

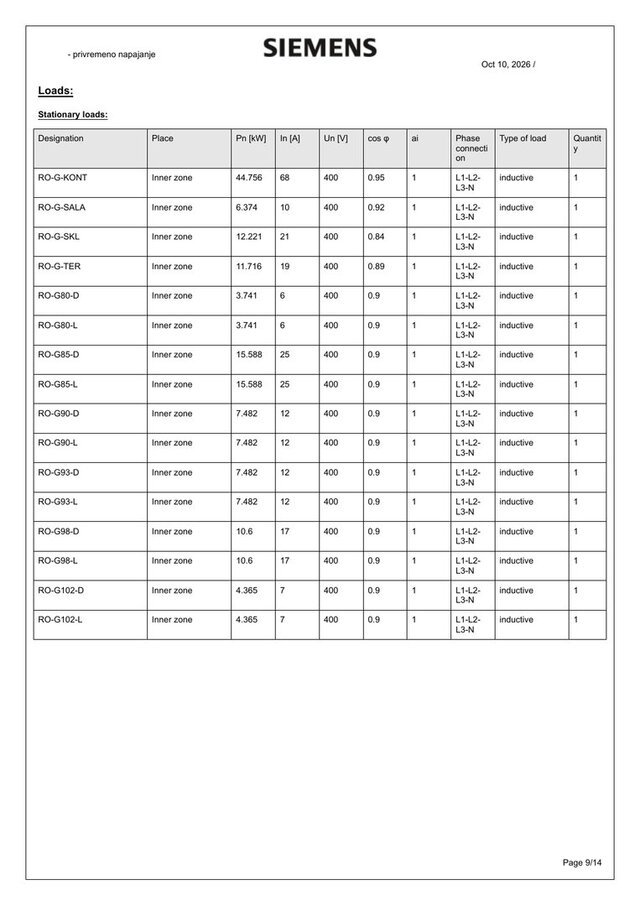

Low-voltage network calculation in Siemens SIMARIS design for a temporary site power supply: cable cross-sections, voltage drop, short-circuit currents, breaking capacity, disconnection times and selectivity curves of the protective devices. Report excerpt; client and project data removed.
