LED Display Using Light Guides

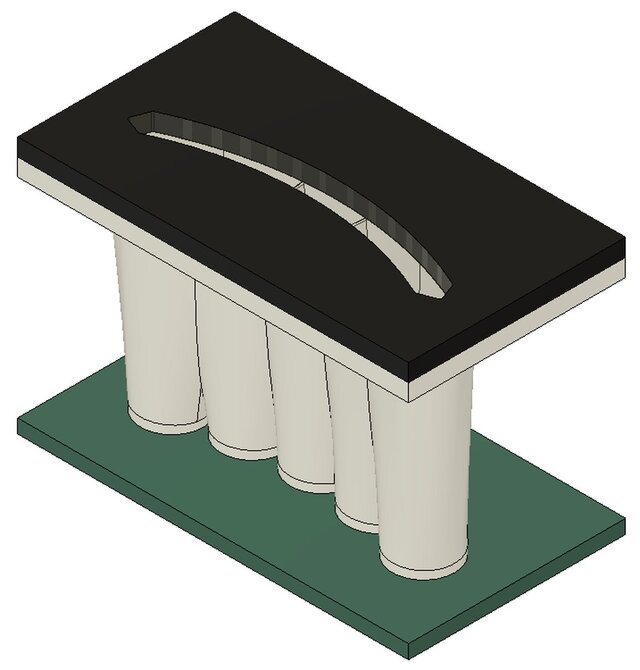

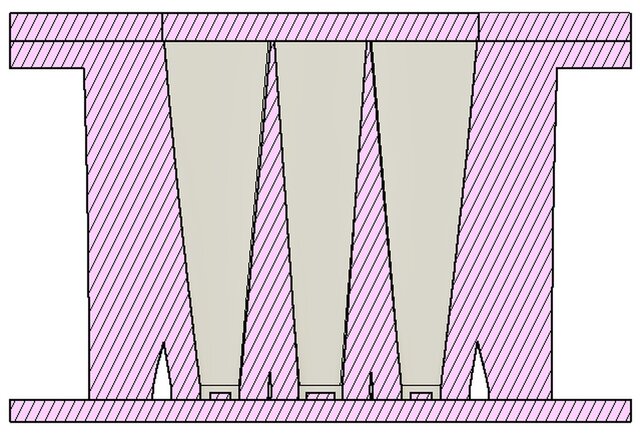

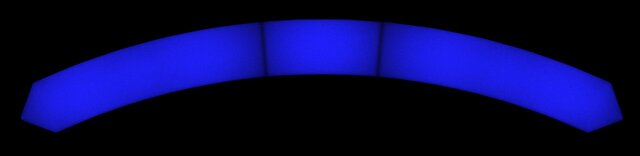

A 3 window LED Display Using Light Guides. LEDs are mounted on a printed circuit board shining upwards towards a display panel. Display panel has 3 openings (windows) designed to illuminate 3 indicators. The light guides (white plastic parts with hollow channels between the LEDs and the Display Panel) direct the light to the indicators.
