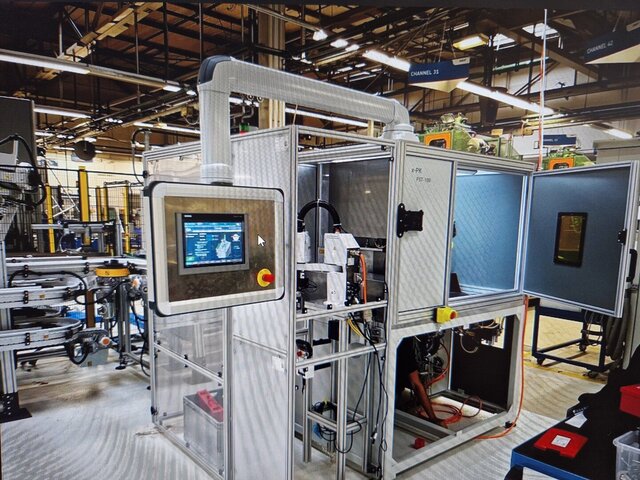

Laser-based Trimming and Deburring System for Radial Shaft Seals

Report
Automated stand-alone cell for laser-trimming radial shaft seals (RWDR) from bulk material. It manages the entire process: feeding, singulation, precise double-trimming (outer 30mm, inner 20mm), and sorted output, guaranteeing burr-free separation in a single clamping operation. Technical Data: Feeding: Vibratory bowl & linear track Laser: Fiber optic cable with collimator Optics: Beam input 7mm, focal dia. <0.2mm Handling: Pneumatic pick-and-place, precision clamping Cycle Time: 7-10 sec/part via parallel processing.
