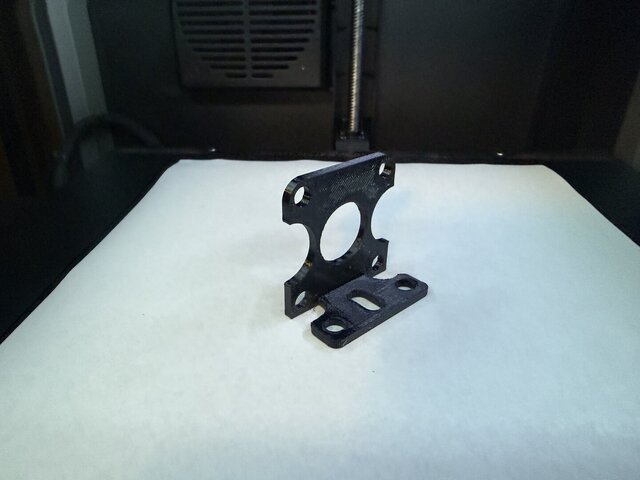

L-Shaped Mounting Bracket with Adjustable Slot

Report
Custom L-shaped mounting bracket designed for industrial or product mounting applications. Features dual mounting plates, precision bolt holes, and an elongated adjustment slot for fine-tuning positioning. Designed in Fusion 360 for prototype or manufacturing.
Published
in Product Design CAD Design Mechanical Engineering
structural mechanical industrial prototype stl cad-design bracket fusion-360 mounting-plate

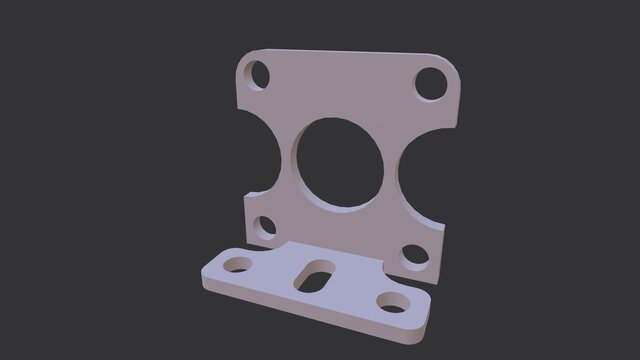

Rendering Images
