KTM5M3 Soviet tram Scale model

Report

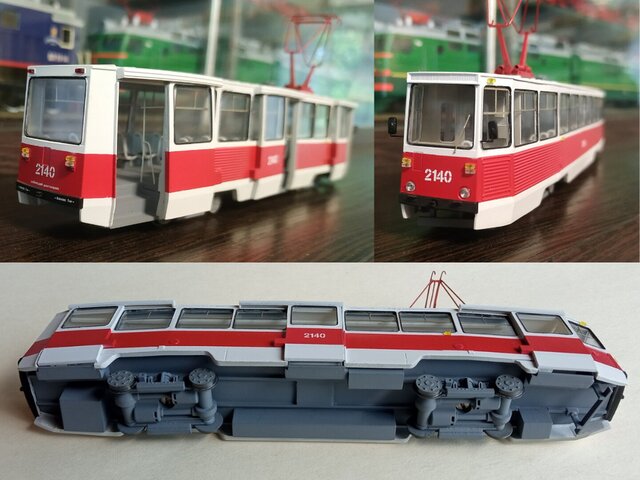

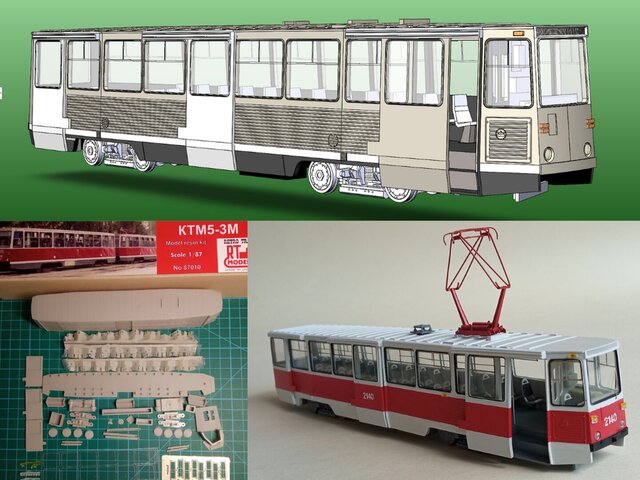

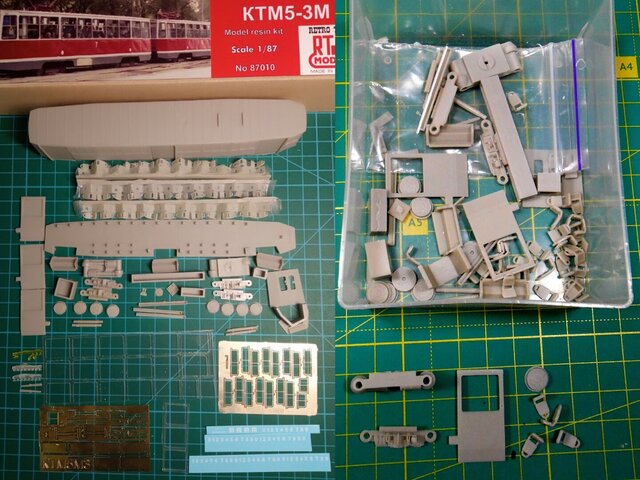

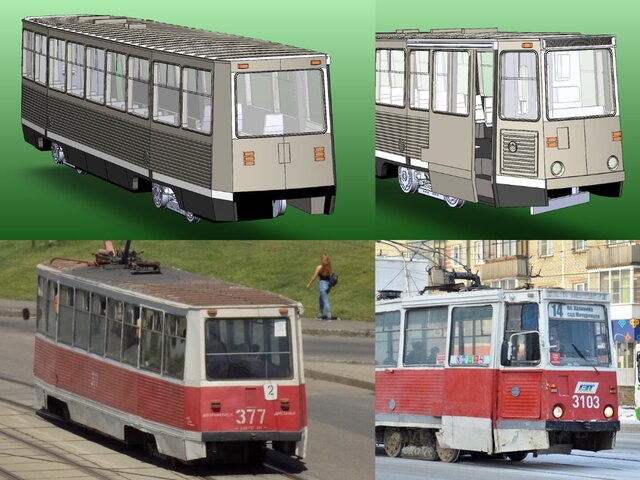

Scale model of soviet tram KTM5M3 in 1:87 scale. Created on the basis of technical drawings and also using reverse engineering. Based on this 3D model, the company "RTM" made a milled master model and launched it in serial production. Examples of the finished plastic model and its comparison with the 3D model.
Published
in Reverse Engineering SolidWorks Design Services Design for Manufacturing and Assembly
solidwokrs assembly reverse-engineering design-for-manufacturing-dfm scale-accurate-model
Rendering Images SolidWorks eDrawings
