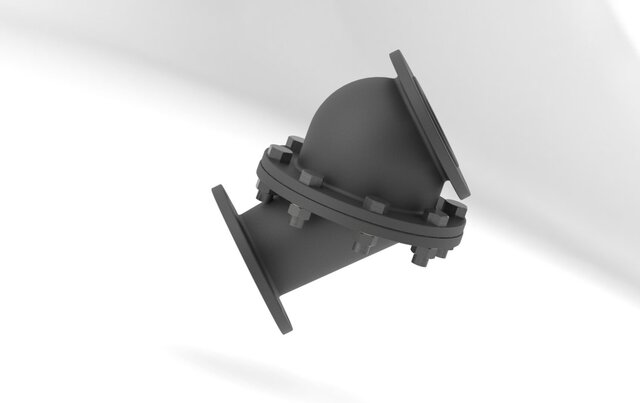

Industrial Swing Check Valve – Full Mechanical Assembly

Report

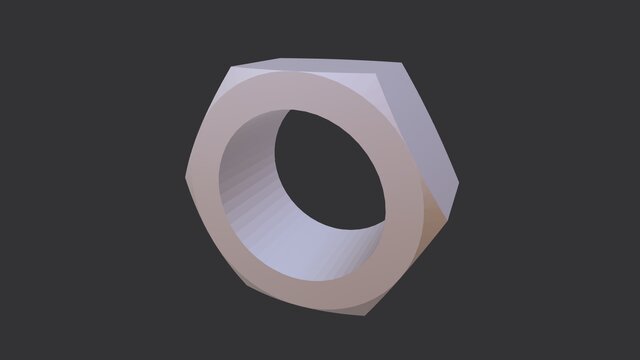

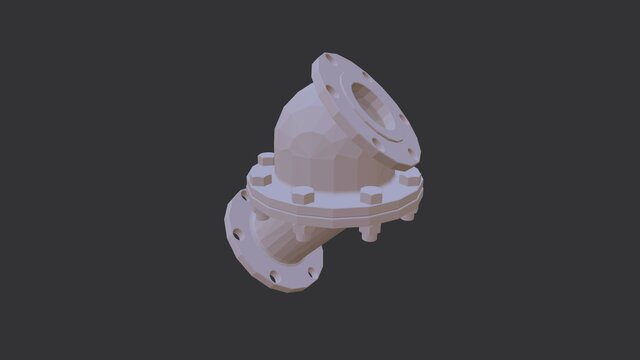

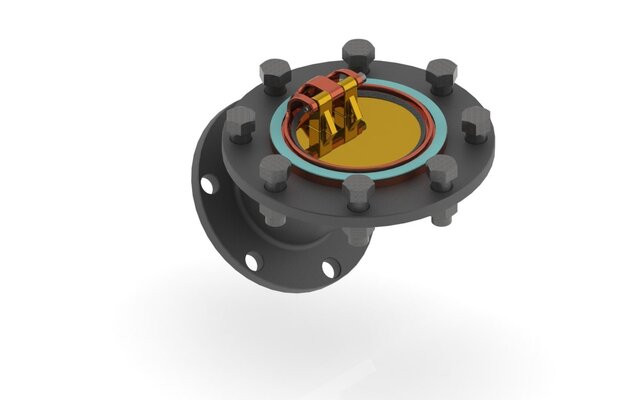

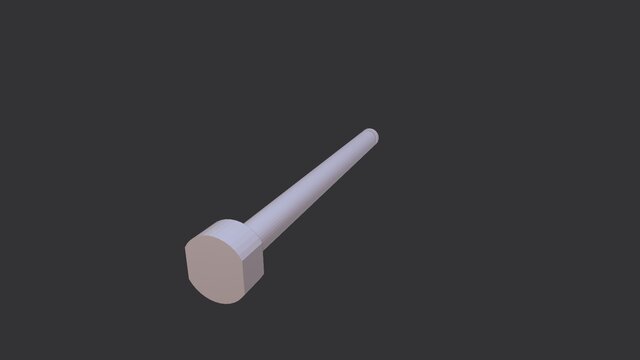

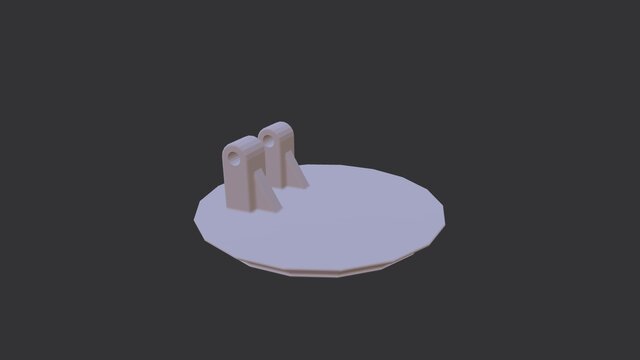

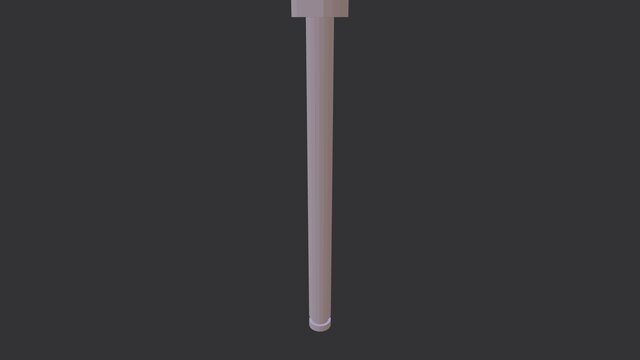

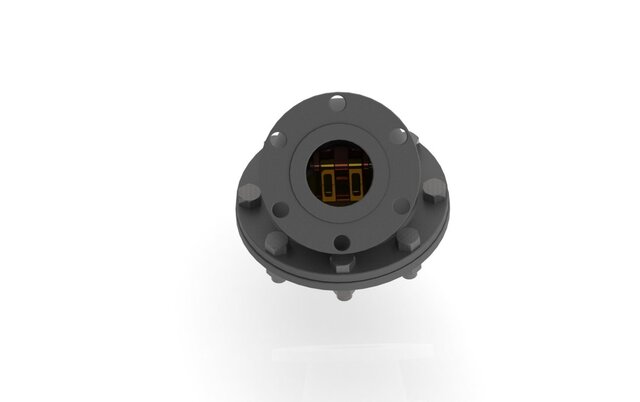

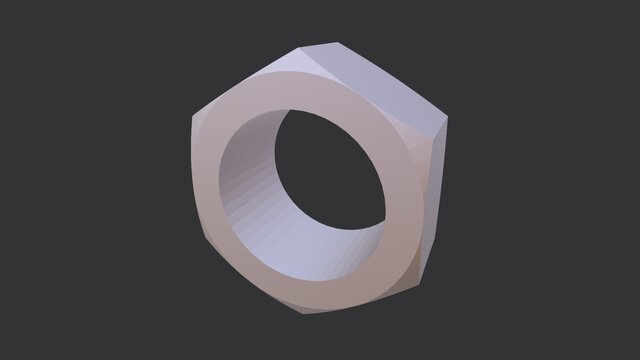

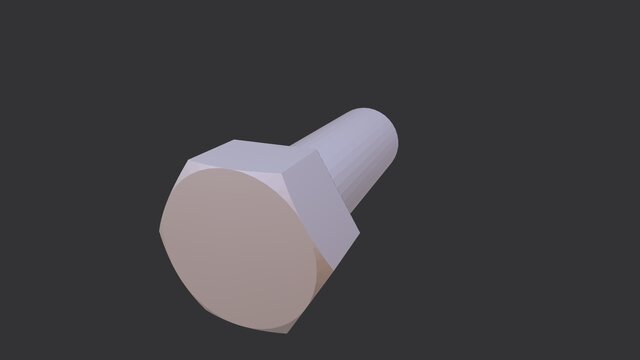

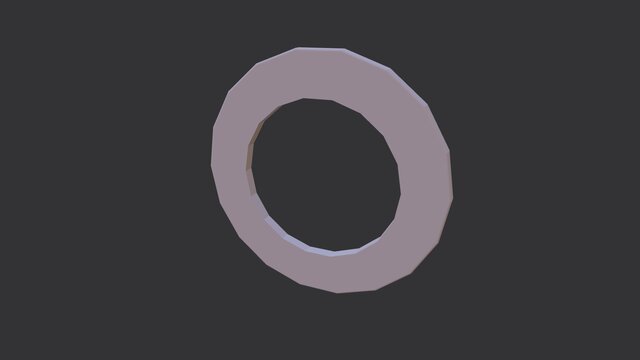

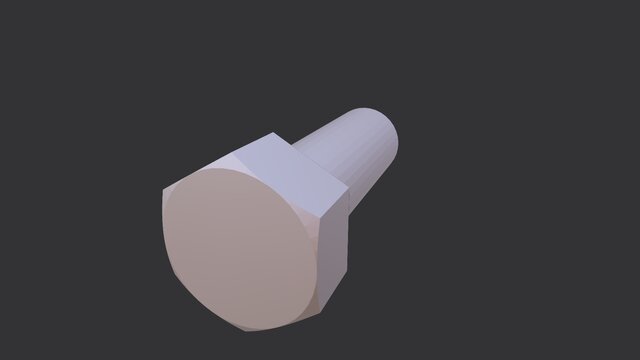

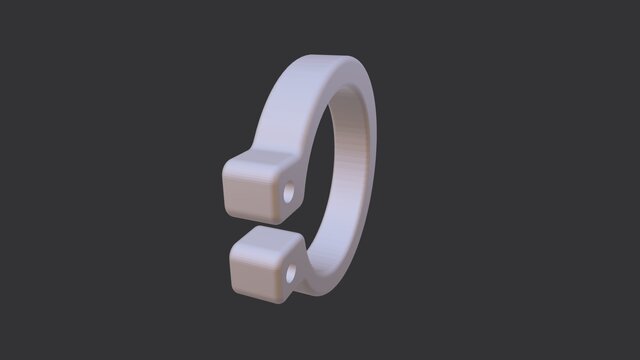

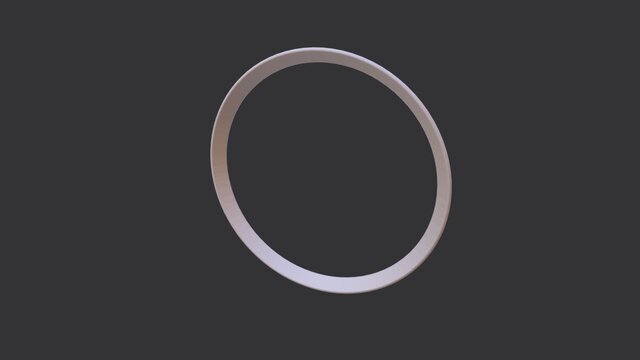

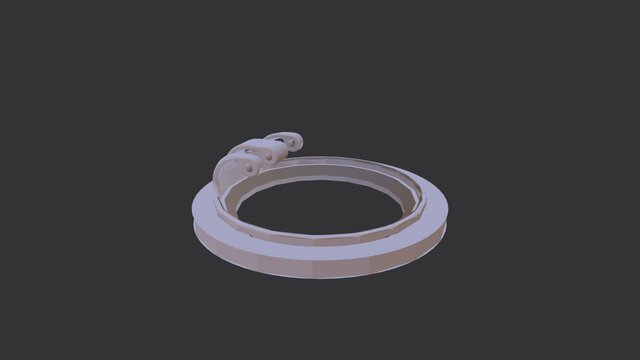

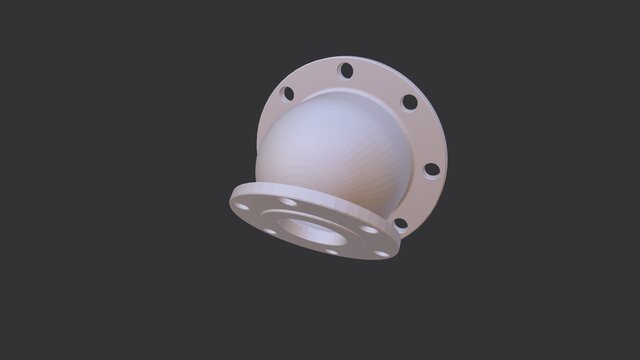

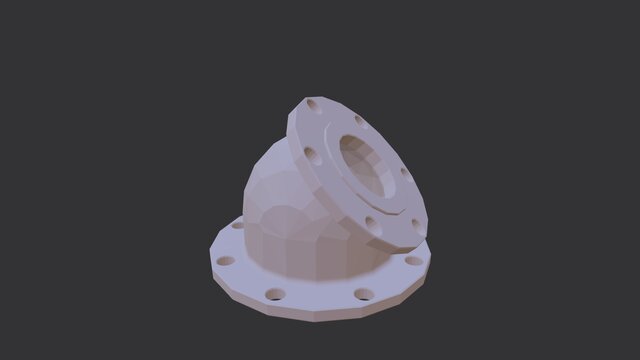

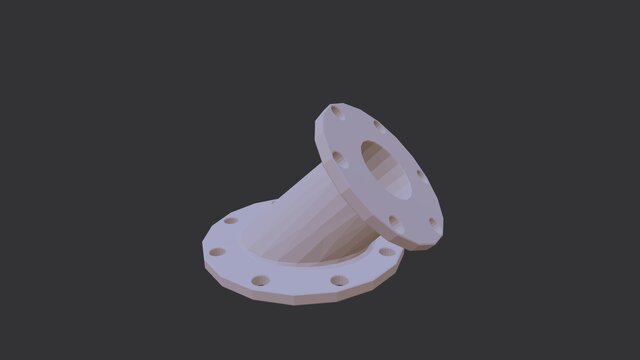

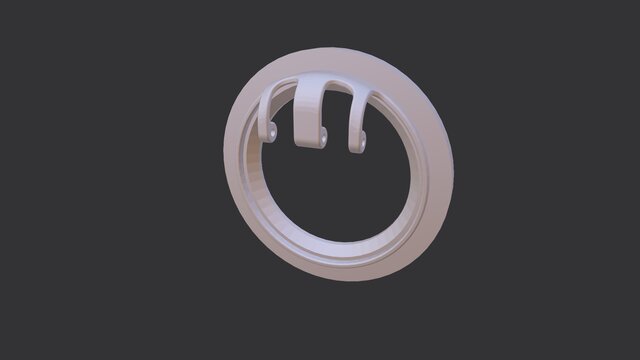

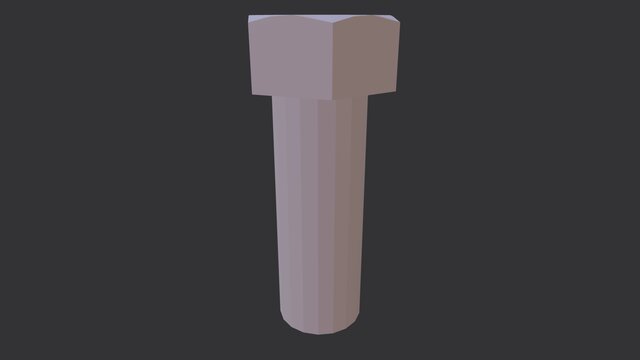

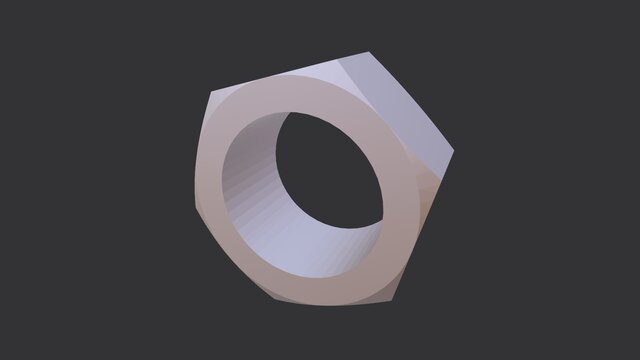

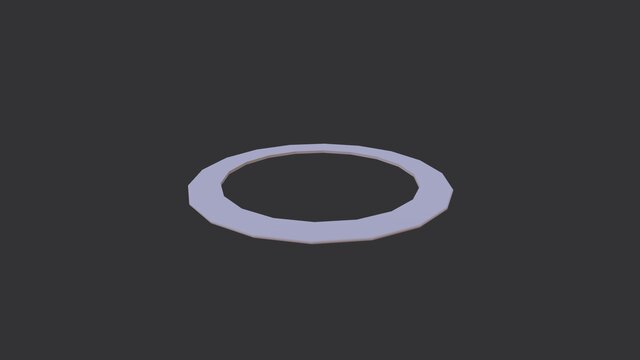

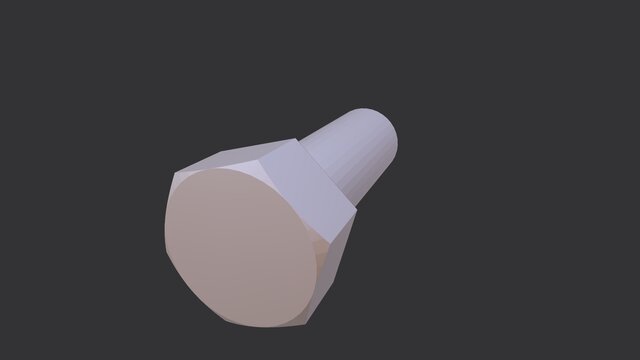

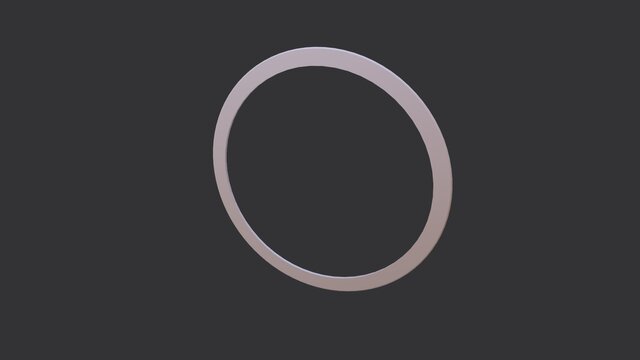

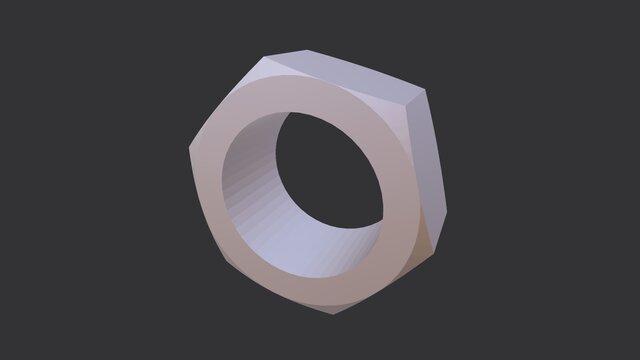

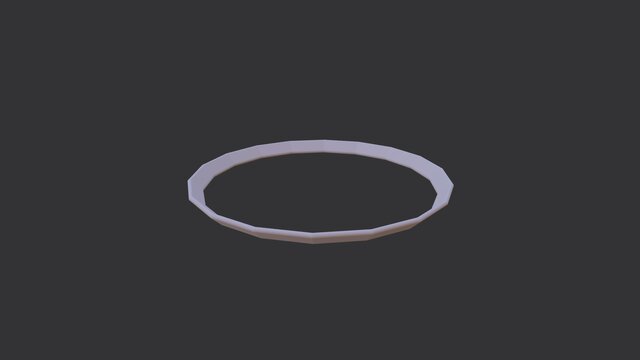

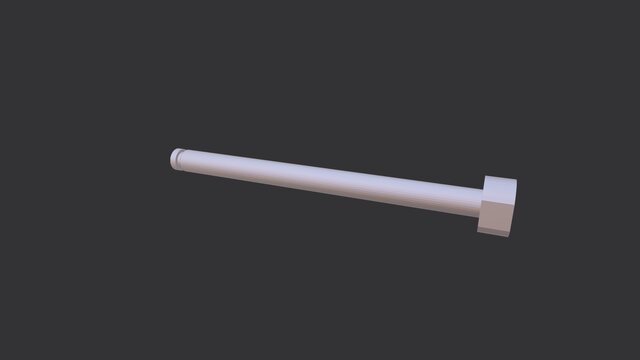

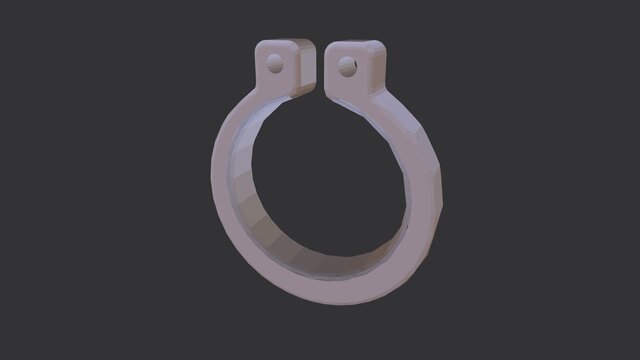

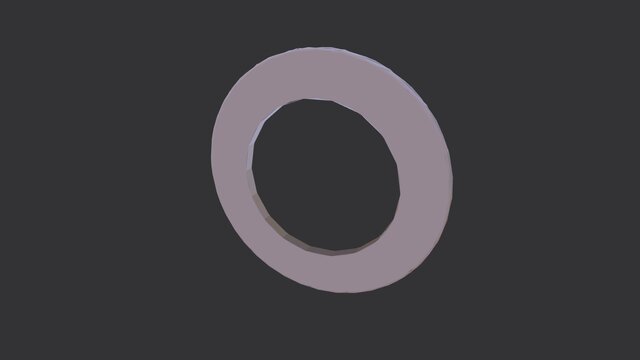

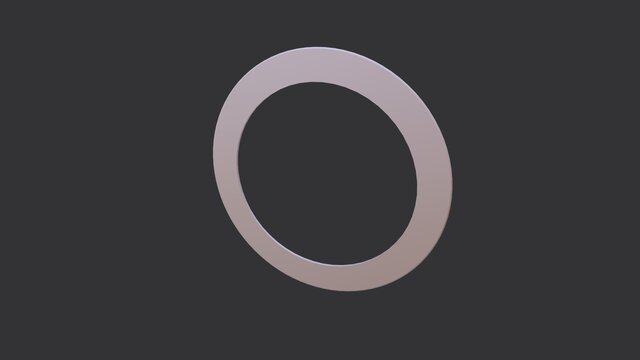

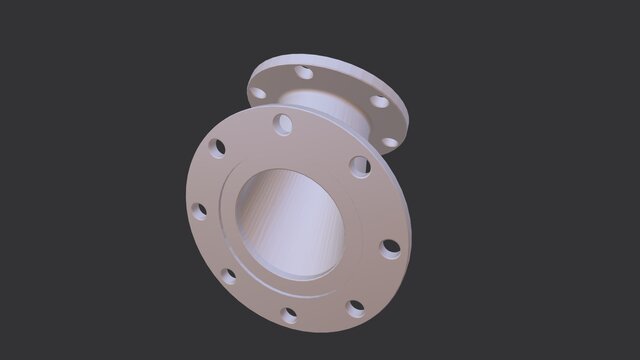

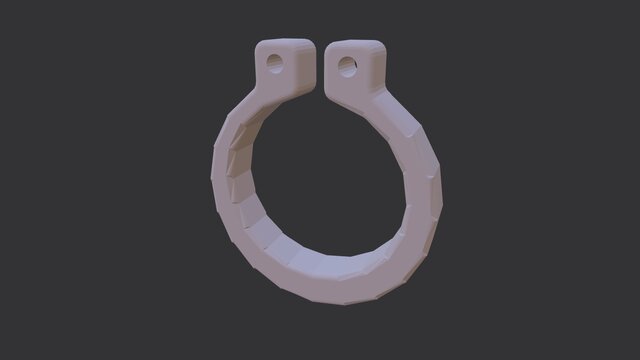

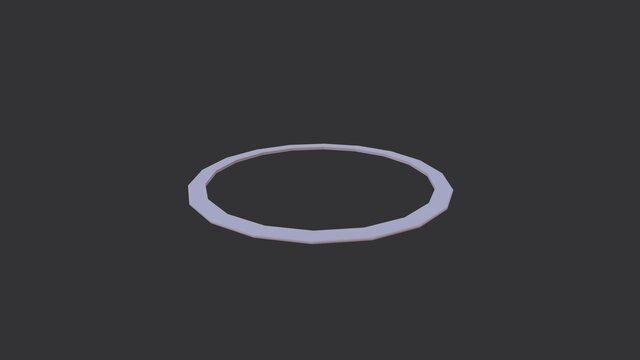

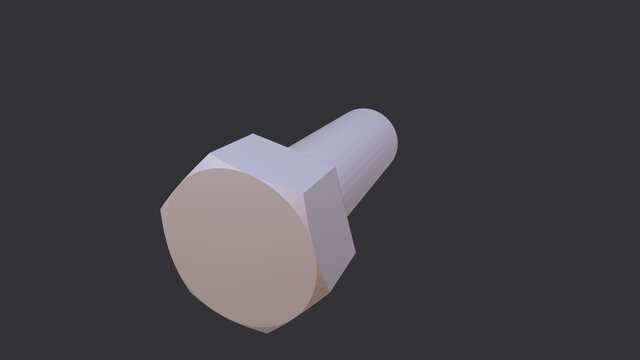

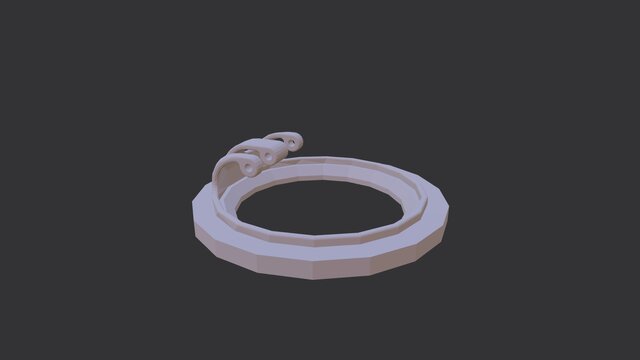

This project features a fully detailed 3D mechanical assembly of an industrial swing check valve designed for fluid flow control applications. The assembly includes: • Valve body and housing • Swing disc mechanism • Shaft and hinge components • Sealing elements • Fasteners and retaining components The model was developed with attention to mechanical fit, assembly structure, and realistic component integration. All parts were created as individual components and assembled with proper constraints to reflect functional movement. Files include native CAD models and neutral formats suitable for prototyping, manufacturing reference, and engineering visualization.

Files (88)

License: CC - Attribution - Non-Commercial - No Derivatives Learn more
Published
in SolidWorks Design Services 3D Solid Modeling Mechanical CAD Design
manufacturing-design mechanical-design product-development engineering-design 3d-cad-modeling mechanical-assembly industrial-equipment valve-design
Rendering Images IGES / IGS File Design SolidWorks STEP/STP 3D Modeling STL Modeling
