Industrial Mechanical Assembly – 3D Modeling & BOM

Report

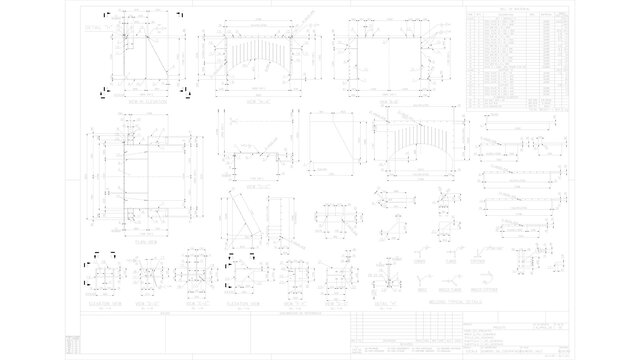

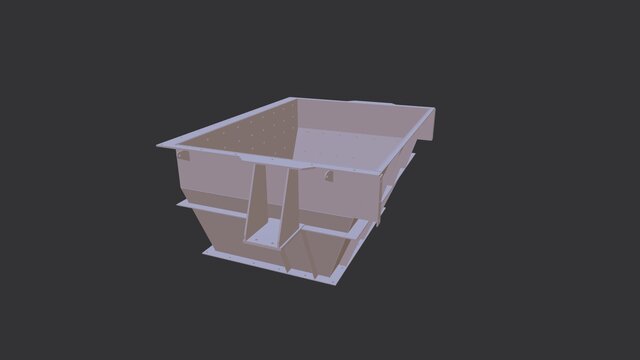

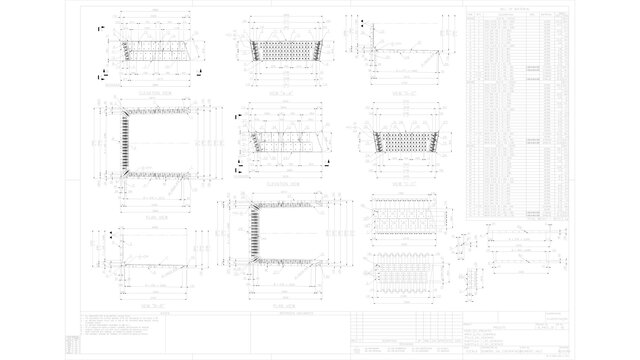

Industrial mechanical assembly developed for manufacturing and shop assembly. The project included detailed 3D modeling, assembly organization, exploded views, and Bill of Materials (BOM) to support fabrication, logistics, and field installation. Representative industrial project with sensitive information removed.
Published
in Mechanical Drafting Mechanical Engineering Mechanical Design Services
manufacturing-support mechanical-assembly industrial-equipment bill-of-materials-bom
Rendering Images 3D PDF Files
