Industrial Fork Camera Mount — Mechanical CAD

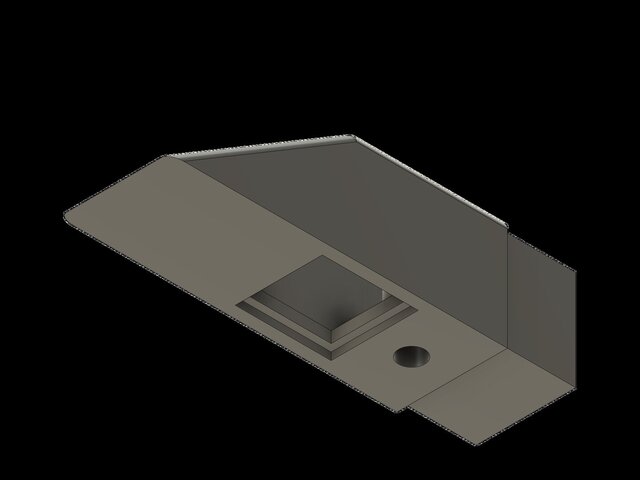

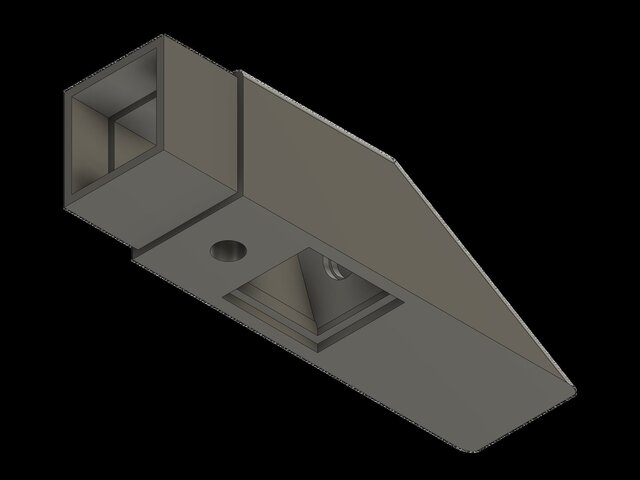

Mechanical CAD component for a camera positioned at the tip of a forklift fork. Challenge: Represent an interface for the stated camera position and intended viewing angle. Solution and contribution: Eleven 3D developed an angled CAD geometry in Autodesk Fusion 360, with a rectangular window and circular opening. Complementary CAD views document the shape and camera interface. This portfolio entry documents the CAD model. Improved visibility, accident reduction, mounting strength, ingress protection and in-service performance have not been measured or demonstrated.
