Industrial Cooling Pipe System (2D to 3D Conversion)

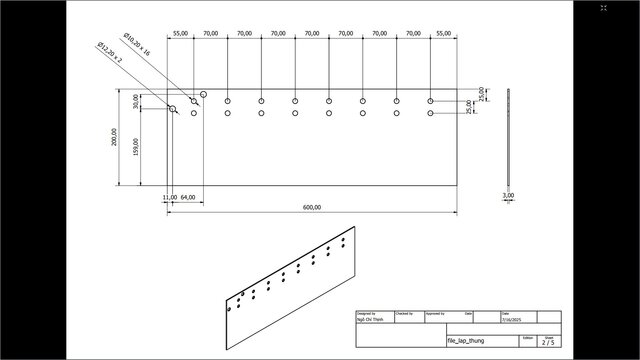

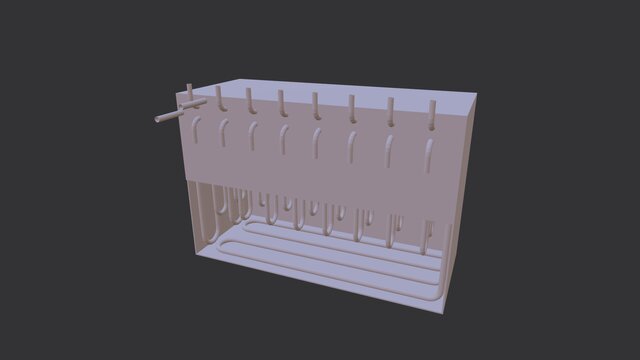

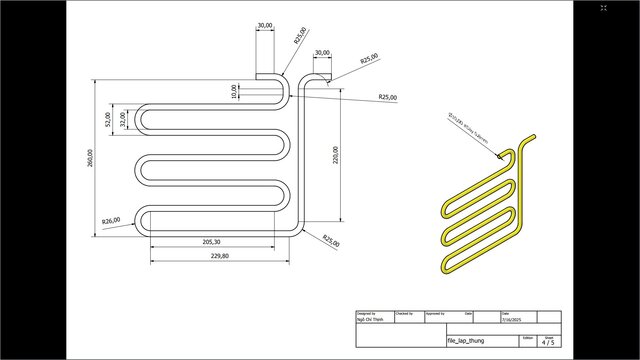

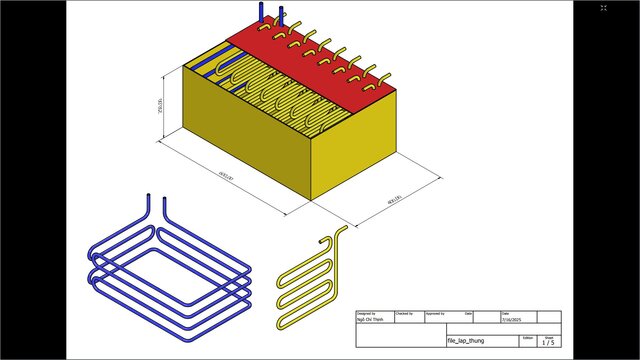

Project Overview Converted legacy 2D engineering drawings into a parametric 3D piping and cooling system assembly based on precise customer dimensional requirements. The 3D model eliminates routing interferences and verifies pipe run clearances within the facility layout. Key Features & Modeling Scope 2D-to-3D Reconstruction: Accurately rebuilt pipe paths, flanged connections, fittings (elbows, tees, reducers), and valves from customer-provided 2D drawings. Dimensional & Tolerance Compliance: Maintained exact centerline radii, wall thicknesses, and connection dimensions for zero assembly mismatch. Clash Detection: Checked structural and spatial clearances across all runs to prevent mechanical interferences during field installation. Mounting & Support Detailing: Modeled structural pipe brackets, hangers, and base supports aligned with industrial piping standards. Deliverables Parametric 3D CAD assemblies and parts (STEP, IGES, native CAD). Isometric piping views with callouts for installation. Detailed 2D fabrication and spool drawings (DWG/PDF).
