HUD End-of-Line Testing Station | Vision & Robotics

Report
Objective: Validate HUD units using camera positioning over a simulated windshield. Solution: Robotic station with Mitsubishi arm, interchangeable fixtures, and structure supporting polished glass for optical validation. Precision base plates designed for flatness and parallelism, verified with Faro measurements. Impact: Reliable and repeatable testing aligned with tight optical tolerances.
Published
in Machine Design Mechanical CAD Design Design for Manufacturing and Assembly
jig-fixture-design mechanical-assembly production-manufacturing industrial-automation cad-3d-modeling cad-3d-design

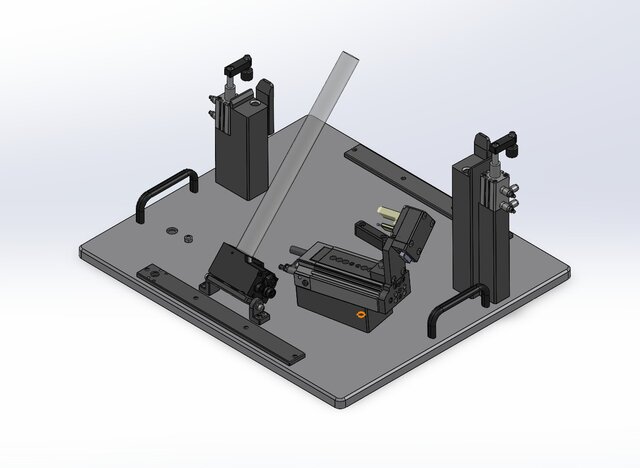

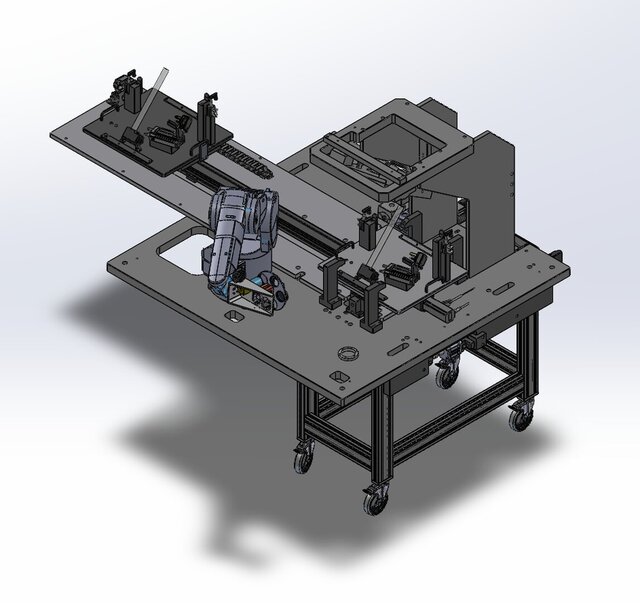

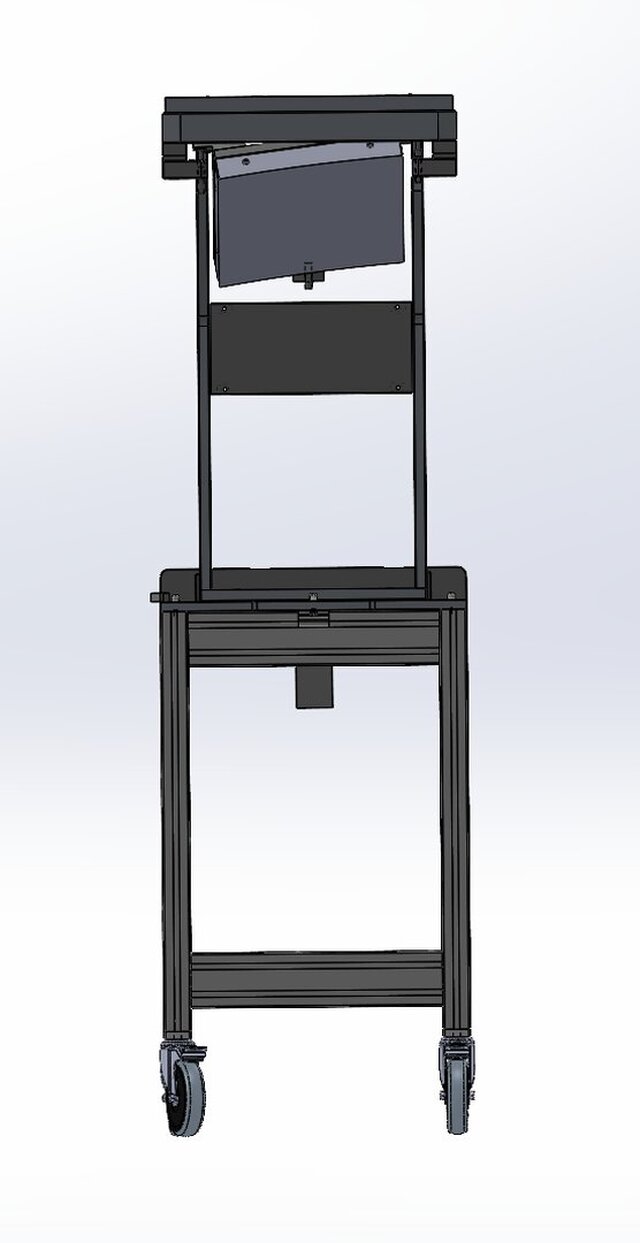

Rendering Images
