High Torque Radial Piston Hydraulic Motor

  Download all files
Report

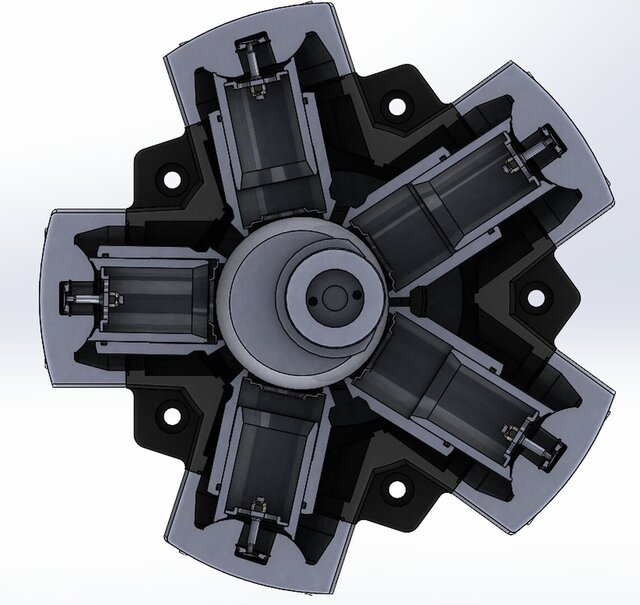

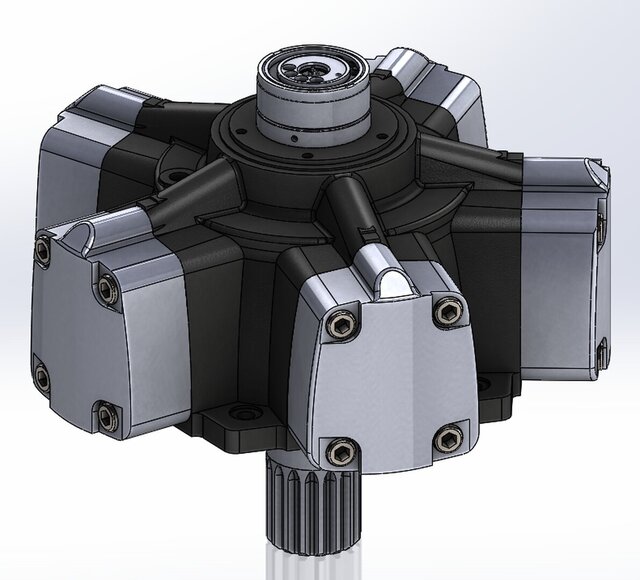

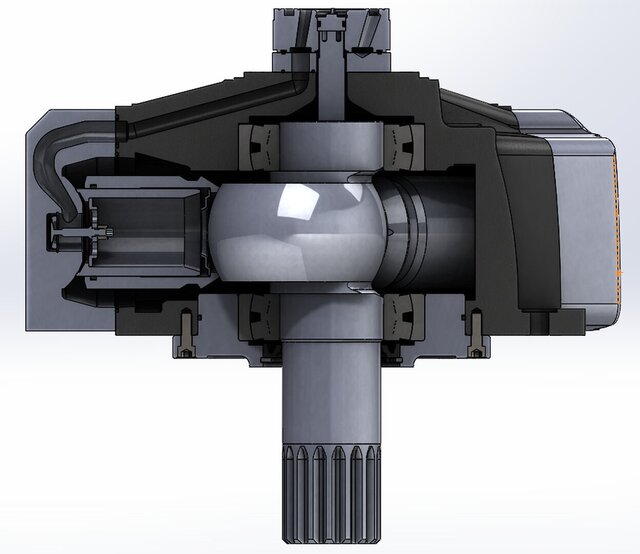

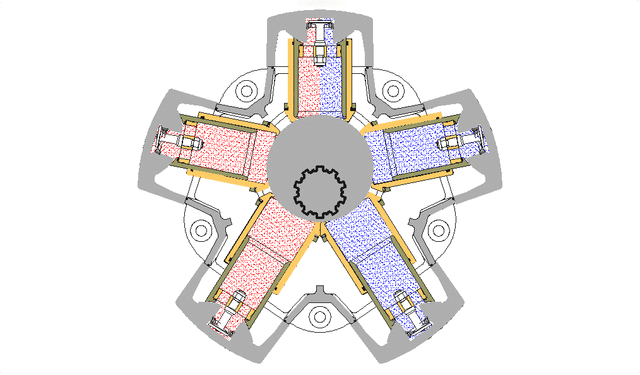

3D CAD modeling of a high-torque radial piston hydraulic motor. The project focuses on accurately modeling the motor housing, radial piston arrangement, mounting features, and major mechanical components, with attention to industrial applications, assembly, and manufacturing requirements.

Files (5)

License: CC - Attribution Learn more
Published
in 3D Modeling Reverse Engineering Mechanical CAD Design
manufacturing 3d-modeling mechanical-design machine-design cad-modeling mechanical-engineering engineering-design reverse-engineering hydraulic mechanical-cad mechanical-drafting assembly-modeling industrial-machinery industrial-equipment hydraulic-system hydraulic-motor radial-piston-motor high-torque hydraulic-machinery
STEP/STP 3D Modeling Rendering Images
