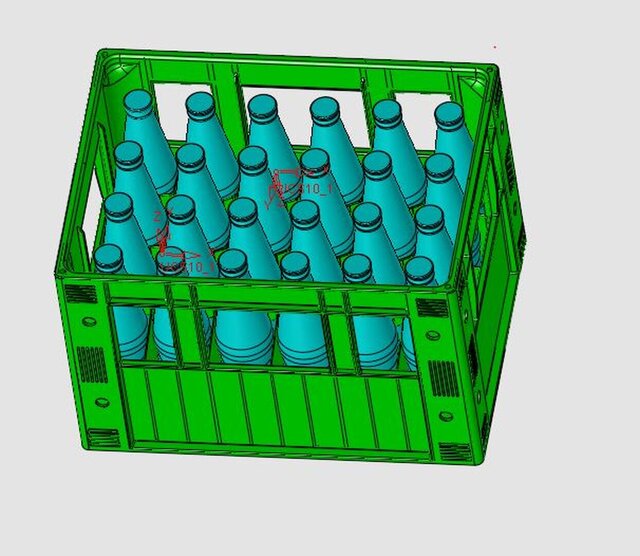

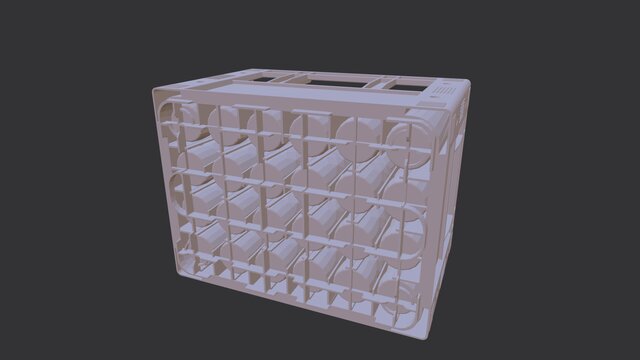

Heavy-Duty Plastic Beer Crate Design (Cimatron)

Full engineering design of a durable plastic crate for 20 bottles. Optimized for high-volume injection molding production. Key Technical Features: Structural Integrity: Advanced ribbing system for maximum stacking strength and impact resistance. Production Ready: Precise draft angles and wall thickness analysis performed in Cimatron. Detailed Assembly: Includes handle ergonomics and bottle divider geometry. Mold Design: Concept is ready for large-scale mold base development (Split/Core/Cavity). Designed for HDPE/PP materials.
