Geometric CAD Modeling — Gas Valve Component

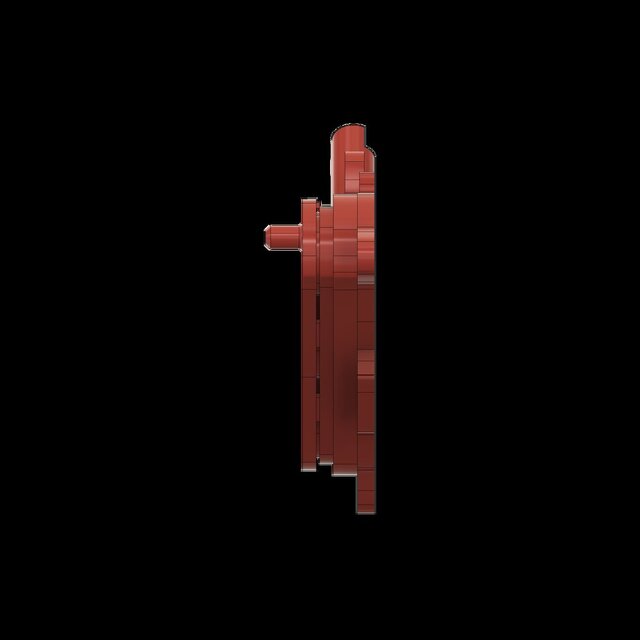

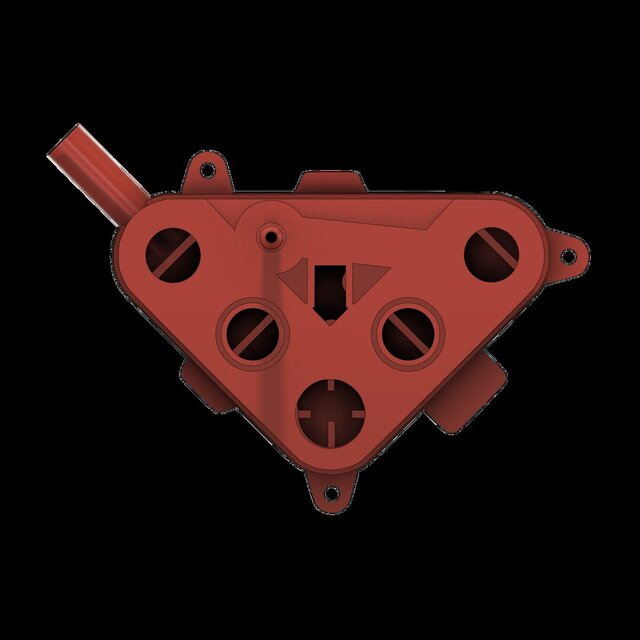

Geometric CAD modeling study of a gas valve component. Challenge: Represent the body transitions, multiple openings and angled connection in a clear digital model. Solution and contribution: Eleven 3D modeled the geometry in Autodesk Fusion 360 and documented it through complementary isometric, front and side views. This entry demonstrates CAD modeling only. IMPORTANT: There is no proven validation of safety or functionality. Leak tightness, pressure resistance, material compatibility and suitability for gas service have not been demonstrated. These images must not be interpreted as approval for manufacture, installation or use in gas equipment.
