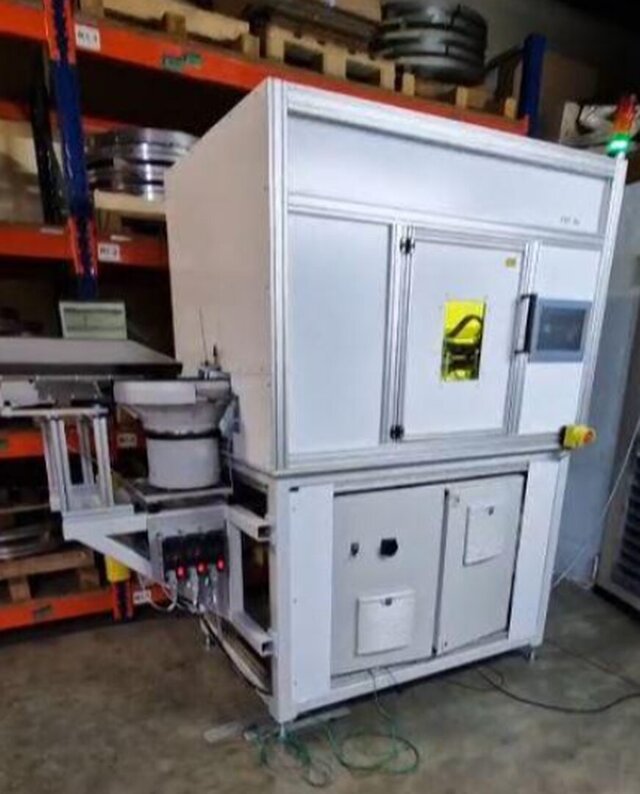

Fully automated laser trimming cell for radial shaft seals (RWDR)

Report

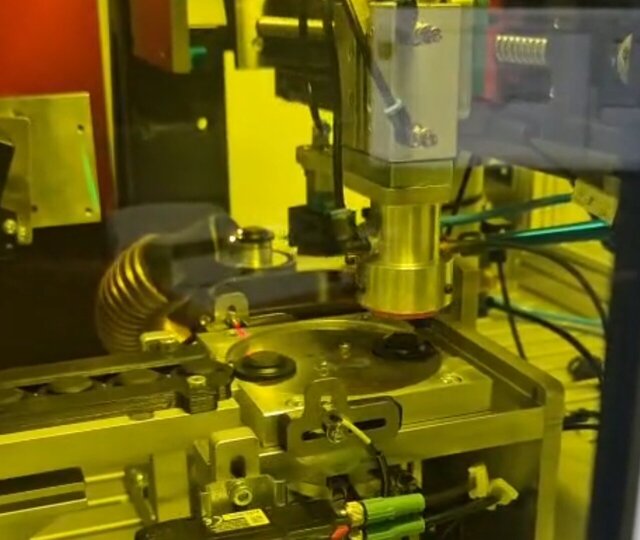

My role. Mechanical Concept | 3D Mechanical Design | Manufacturing-Ready Drawings | Prototyping Project description. Development of a high-precision special-purpose machine for the automated removal of vulcanization flash from radial shaft seals. The process is non-contact, utilizing fiber laser technology to ensure clean separation at the mold parting line without causing thermal damage to the sealing lip. Technical Data: Application: Trimming of FKM seals (inner diameter 70 – 90 mm). Cut Thickness: Up to 2 mm (vulcanization flash). Laser Source: Fiber laser. Beam Delivery: Fiber optic cable with integrated collimator. Optics: Beam diameter 7 mm (input), focus diameter < 0.2 mm. Cycle Time:5 sec/component
