Flange Coupling

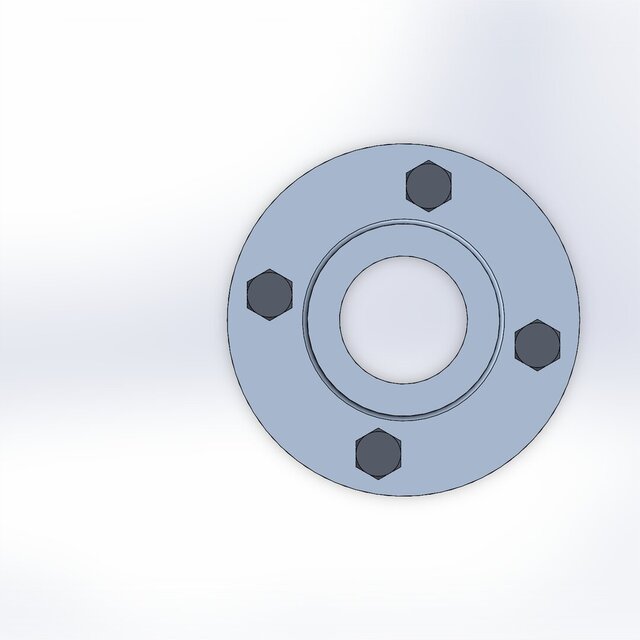

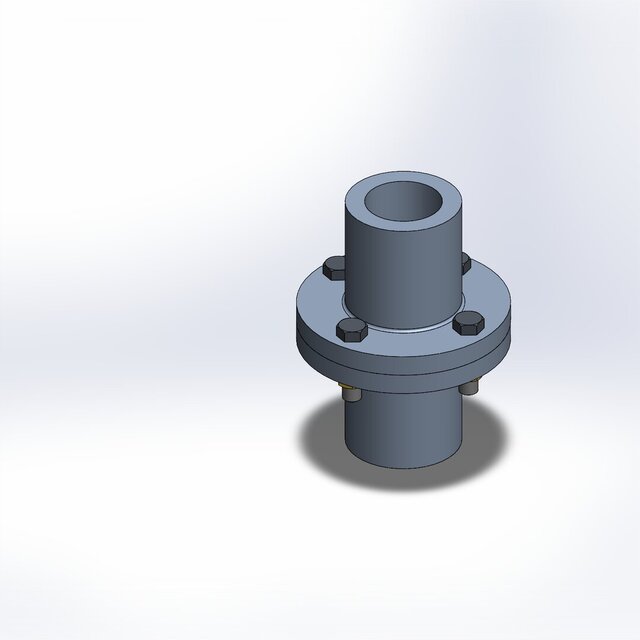

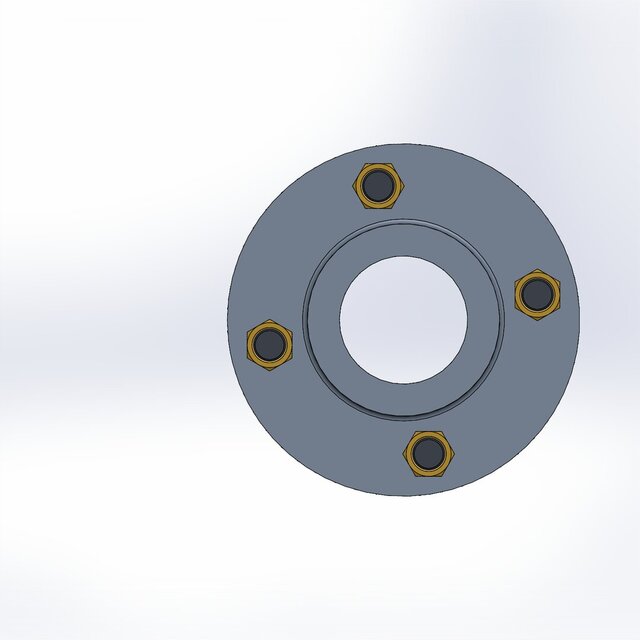

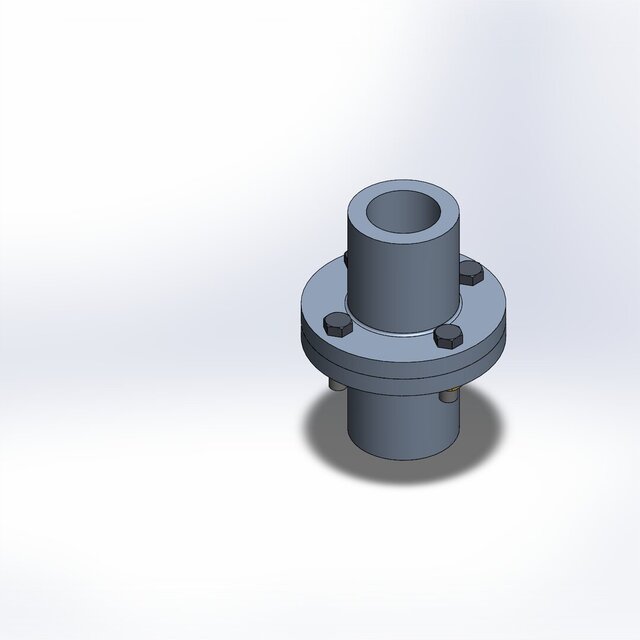

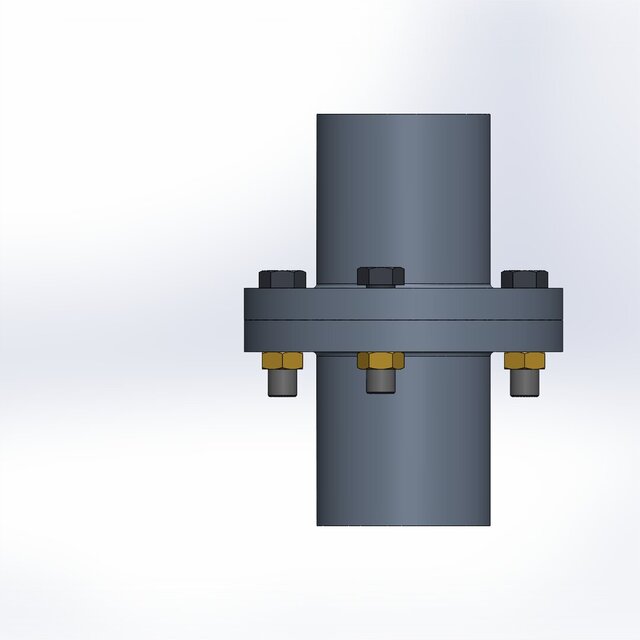

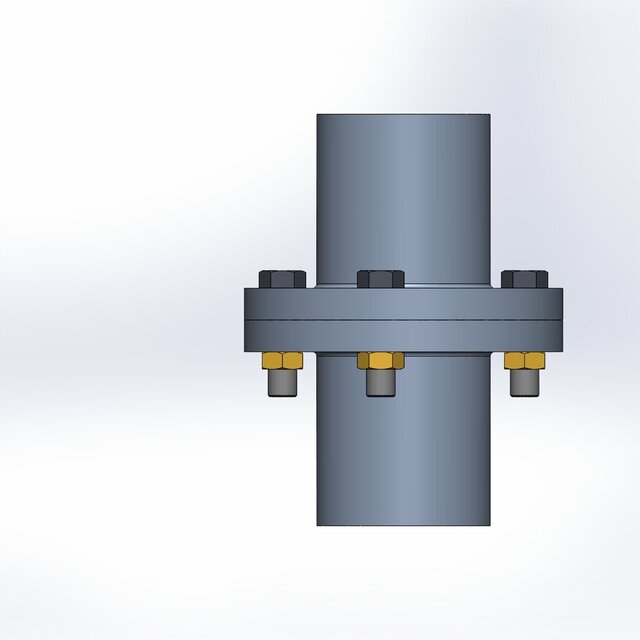

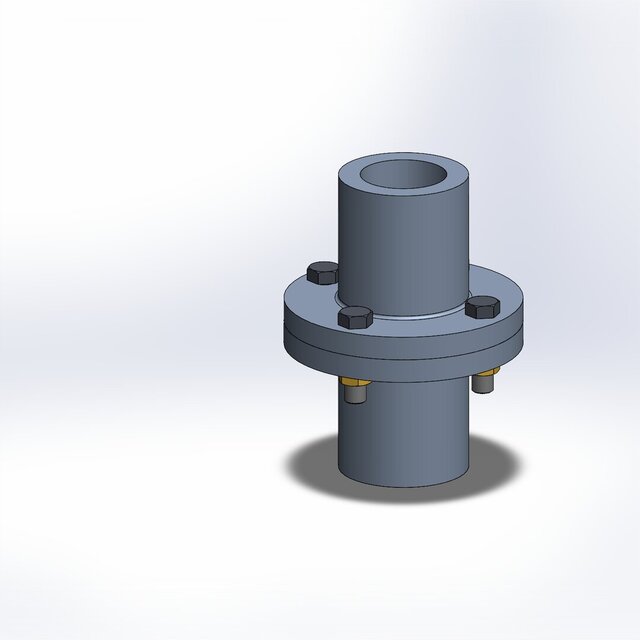

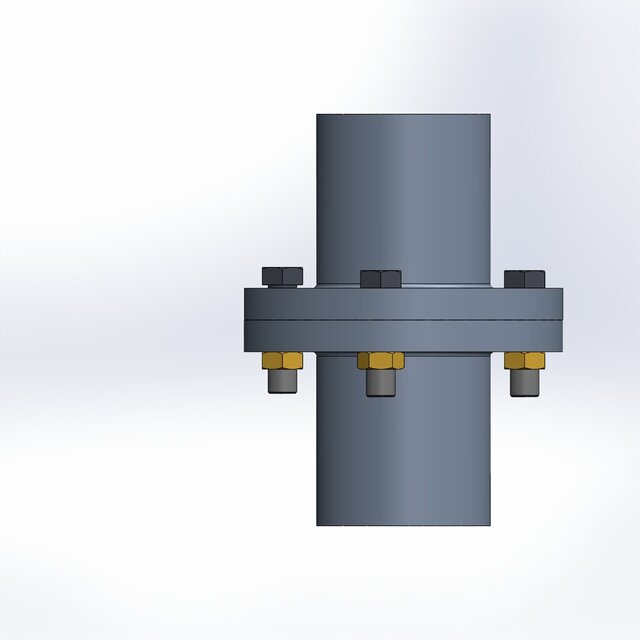

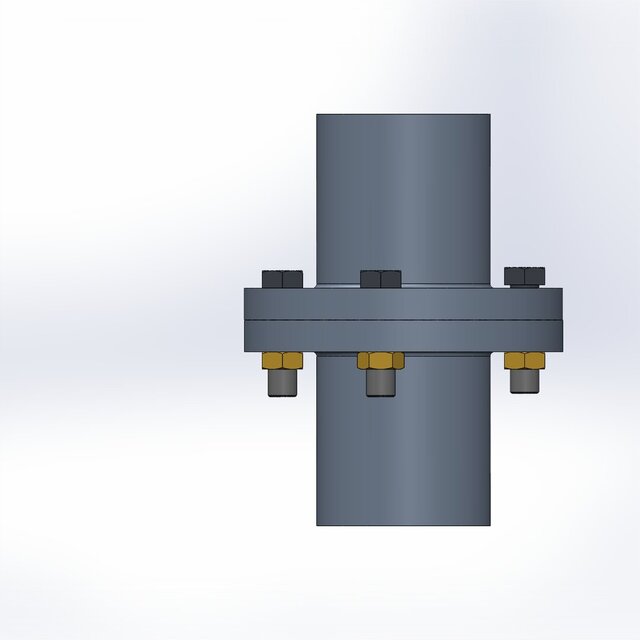

A precision flange coupling assembly modeled in SolidWorks, designed to rigidly connect two rotating shafts while transmitting torque and maintaining shaft alignment. The design includes a bolted flange body with a keyed shaft, matching standard mechanical coupling practice for power transmission systems. The model includes a complete production-ready render set (front, back, left, right, top, bottom, isometric, dimetric, and trimetric views) plus a full 360-degree turntable animation showing the assembly and fastener detail from every angle. Geometry is clean, fully parametric, and suitable for downstream FEA, manufacturing drawings, or catalog/spec-sheet use. Useful as a reference for mechanical designers working on shaft couplings, power transmission assemblies, or general rotating machinery components, and as a portfolio example of SolidWorks assembly modeling and rendering workflow.
