Fixture Plate

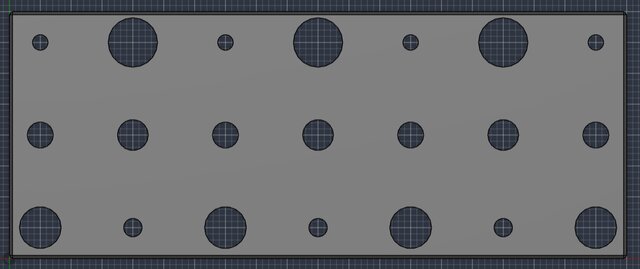

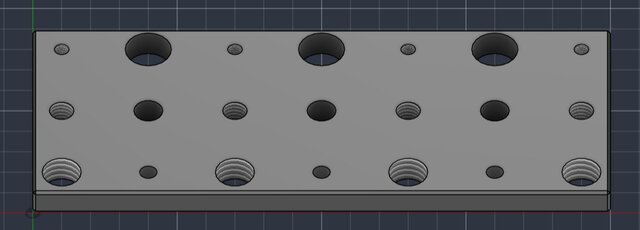

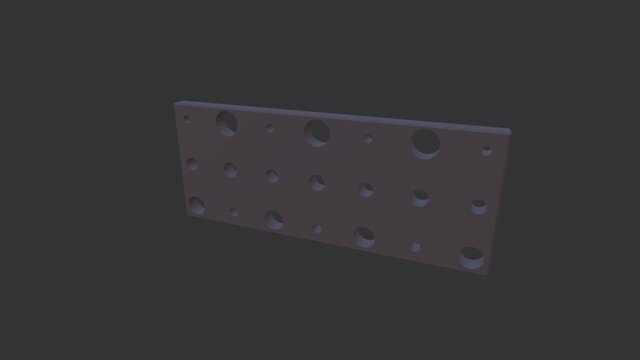

A precision fixture plate developed in Autodesk Fusion, featuring a range of drilled and threaded hole sizes arranged in a defined pattern.
The project demonstrates accurate hole positioning, dimensional control and the creation of a manufacturing drawing suitable for communicating machining requirements.
The drawing includes hole specifications, dimensions and multiple views to clearly illustrate the component.
