Fire Alarm System Design - Church, 5,178 sq ft (Addressable, AutoCAD)

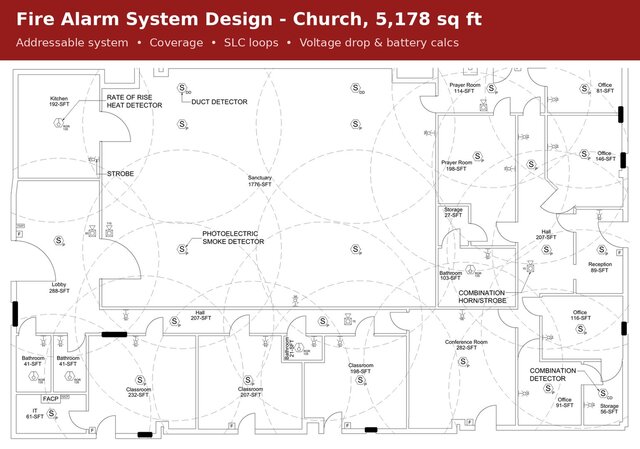

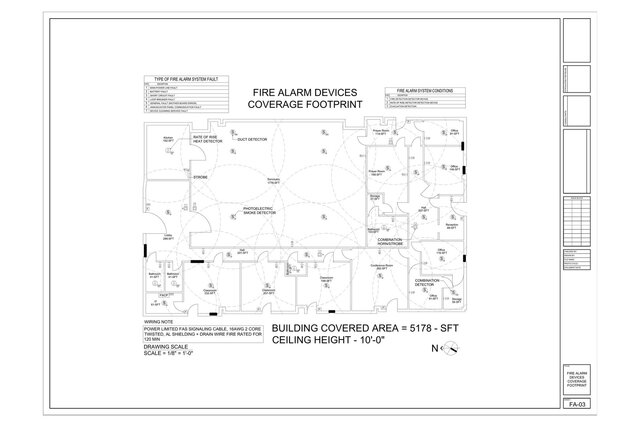

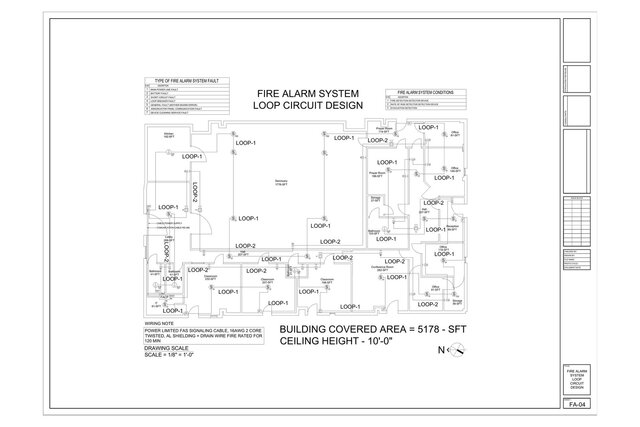

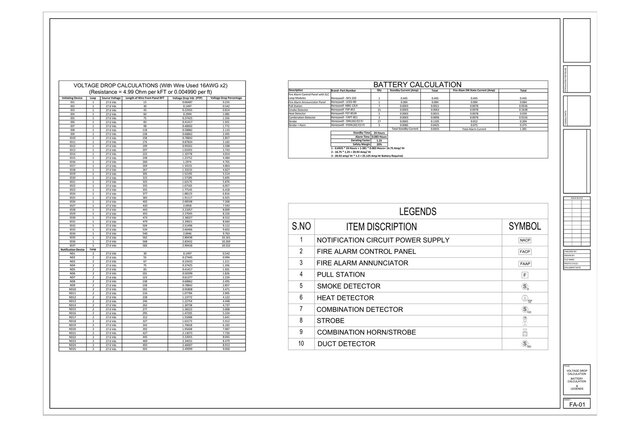

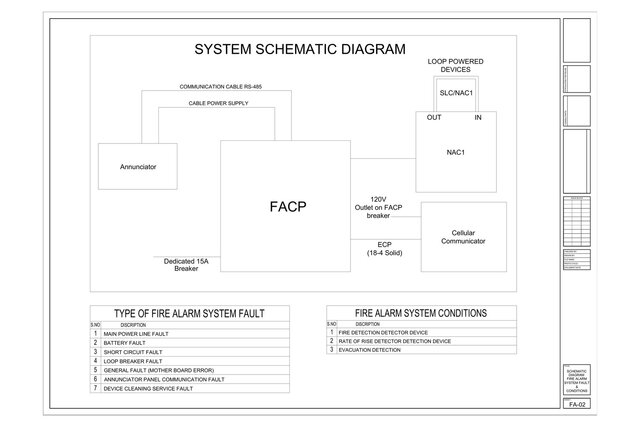

Addressable fire alarm design for a single-storey church (5,178 sq ft): sanctuary, classrooms, offices, prayer rooms, kitchen, halls and support spaces. Ceiling height 10 ft. Sheets included: • FA-01 Voltage drop calculations per device, 24-hour standby battery calculation, and device legend • FA-02 System schematic diagram (FACP, annunciator, NAC power supply, cellular communicator, SLC loop) with fault and condition tables • FA-03 Device layout with detector coverage footprint (photoelectric smoke, rate-of-rise heat, duct detectors, horn/strobes, pull stations) • FA-04 SLC loop and notification circuit design (Loop-1 and Loop-2 routing) Approach: devices placed by room use and ceiling height, coverage checked on plan, circuits split into loops, then voltage drop and battery capacity checked against the device loads. Software: AutoCAD, drawings issued as PDF. Client and site details removed for confidentiality.
